CPU2006 license: | 11 | Test date: | Jul-2010 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2010 |
Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X7560 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
CPU MHz: | 2267 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 24 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB PC3-8500R CL7, Quad Rank, running at 978 MHz) |
Disk Subsystem: | 2 x 50 GB SATA, SSD, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

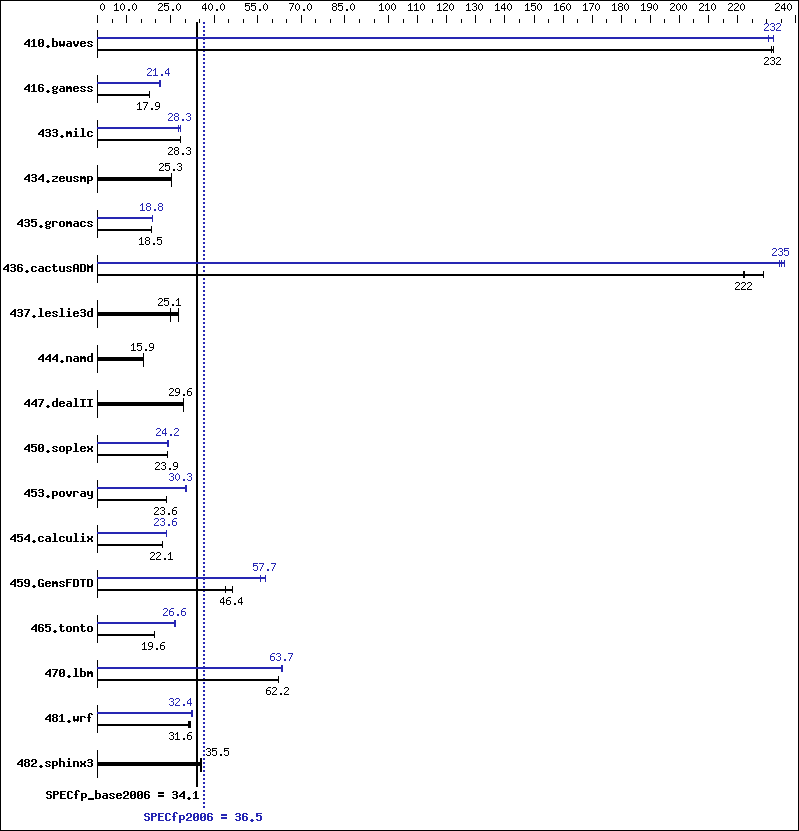

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 58.7 | 231 | 58.5 | 232 | 58.5 | 232 | 58.9 | 231 | 58.5 | 232 | 58.5 | 232 |
416.gamess | 1091 | 17.9 | 1097 | 17.8 | 1090 | 18.0 | 915 | 21.4 | 915 | 21.4 | 927 | 21.1 |
433.milc | 324 | 28.4 | 324 | 28.3 | 324 | 28.3 | 324 | 28.3 | 332 | 27.7 | 323 | 28.4 |
434.zeusmp | 359 | 25.3 | 359 | 25.3 | 358 | 25.4 | 359 | 25.3 | 359 | 25.3 | 358 | 25.4 |
435.gromacs | 388 | 18.4 | 386 | 18.5 | 384 | 18.6 | 382 | 18.7 | 378 | 18.9 | 380 | 18.8 |
436.cactusADM | 52.2 | 229 | 53.8 | 222 | 53.8 | 222 | 51.0 | 234 | 50.6 | 236 | 50.8 | 235 |
437.leslie3d | 377 | 24.9 | 374 | 25.1 | 339 | 27.7 | 377 | 24.9 | 374 | 25.1 | 339 | 27.7 |
444.namd | 505 | 15.9 | 506 | 15.9 | 505 | 15.9 | 505 | 15.9 | 506 | 15.9 | 505 | 15.9 |
447.dealII | 386 | 29.6 | 386 | 29.6 | 386 | 29.6 | 386 | 29.6 | 386 | 29.6 | 386 | 29.6 |
450.soplex | 349 | 23.9 | 349 | 23.9 | 349 | 23.9 | 346 | 24.1 | 345 | 24.2 | 345 | 24.2 |
453.povray | 227 | 23.5 | 224 | 23.8 | 225 | 23.6 | 175 | 30.5 | 175 | 30.3 | 175 | 30.3 |
454.calculix | 371 | 22.2 | 373 | 22.1 | 373 | 22.1 | 350 | 23.6 | 349 | 23.6 | 349 | 23.6 |
459.GemsFDTD | 242 | 43.8 | 229 | 46.4 | 228 | 46.5 | 184 | 57.7 | 184 | 57.8 | 190 | 55.8 |
465.tonto | 506 | 19.5 | 502 | 19.6 | 503 | 19.6 | 370 | 26.6 | 370 | 26.6 | 371 | 26.5 |
470.lbm | 221 | 62.2 | 221 | 62.2 | 221 | 62.1 | 216 | 63.7 | 218 | 63.2 | 216 | 63.7 |
481.wrf | 352 | 31.8 | 353 | 31.6 | 358 | 31.2 | 345 | 32.4 | 348 | 32.1 | 345 | 32.4 |
482.sphinx3 | 551 | 35.4 | 547 | 35.6 | 548 | 35.5 | 551 | 35.4 | 547 | 35.6 | 548 | 35.5 |
Turbo Boost set to Traditional
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -parallel -ansi-alias -auto-ilp32 |
482.sphinx3: | basepeak = yes |
444.namd: | basepeak = yes |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -auto-ilp32 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | Same as 454.calculix |
