CPU2006 license: | 55 | Test date: | Aug-2010 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Aug-2010 |
Tested by: | Dell Inc. | Software Availability: | Jul-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6174 |
CPU Characteristics: | |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 48 cores, 4 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory: | 128 GB (32 x 4 GB DDR3-1333 DR RDIMM, CL9, ECC) |
Disk Subsystem: | 1 x 146 GB SAS 10000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | x86 Open64 4.2.4 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.1 32-bit Library for Linux |

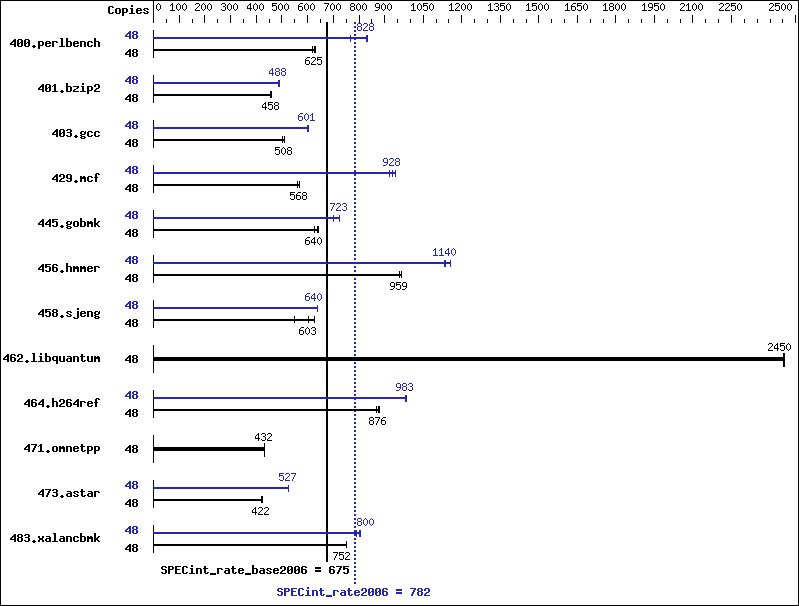

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 48 | 757 | 619 | 750 | 625 | 744 | 631 | 48 | 610 | 768 | 563 | 833 | 566 | 828 |
401.bzip2 | 48 | 1012 | 458 | 1013 | 457 | 1008 | 460 | 48 | 951 | 487 | 946 | 490 | 948 | 488 |
403.gcc | 48 | 759 | 509 | 760 | 508 | 768 | 503 | 48 | 641 | 603 | 645 | 599 | 643 | 601 |
429.mcf | 48 | 771 | 568 | 771 | 568 | 781 | 560 | 48 | 477 | 918 | 465 | 942 | 472 | 928 |
445.gobmk | 48 | 787 | 640 | 783 | 643 | 802 | 628 | 48 | 718 | 701 | 695 | 724 | 697 | 723 |
456.hmmer | 48 | 468 | 956 | 467 | 959 | 464 | 965 | 48 | 395 | 1130 | 393 | 1140 | 388 | 1150 |
458.sjeng | 48 | 963 | 603 | 1060 | 548 | 927 | 627 | 48 | 909 | 639 | 908 | 640 | 908 | 640 |
462.libquantum | 48 | 405 | 2450 | 405 | 2460 | 405 | 2450 | 48 | 405 | 2450 | 405 | 2460 | 405 | 2450 |
464.h264ref | 48 | 1210 | 878 | 1222 | 869 | 1213 | 876 | 48 | 1082 | 982 | 1080 | 984 | 1081 | 983 |
471.omnetpp | 48 | 694 | 432 | 693 | 433 | 697 | 431 | 48 | 694 | 432 | 693 | 433 | 697 | 431 |
473.astar | 48 | 799 | 422 | 799 | 422 | 798 | 422 | 48 | 639 | 527 | 640 | 527 | 642 | 525 |
483.xalancbmk | 48 | 440 | 752 | 441 | 751 | 441 | 752 | 48 | 419 | 791 | 414 | 800 | 411 | 805 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=21600 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/cpu2006/amd1002-rate-libs-revC/64:/cpu2006/amd1002-rate-libs-revC/32" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on SLES10 SP2 with binutils 2.18
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-march=barcelona -mso -Ofast -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=8000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m |
-march=barcelona -mso -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
