| CPU2006 license: | 19 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5630 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.4 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SATA, 160 GB, 5.4 krpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

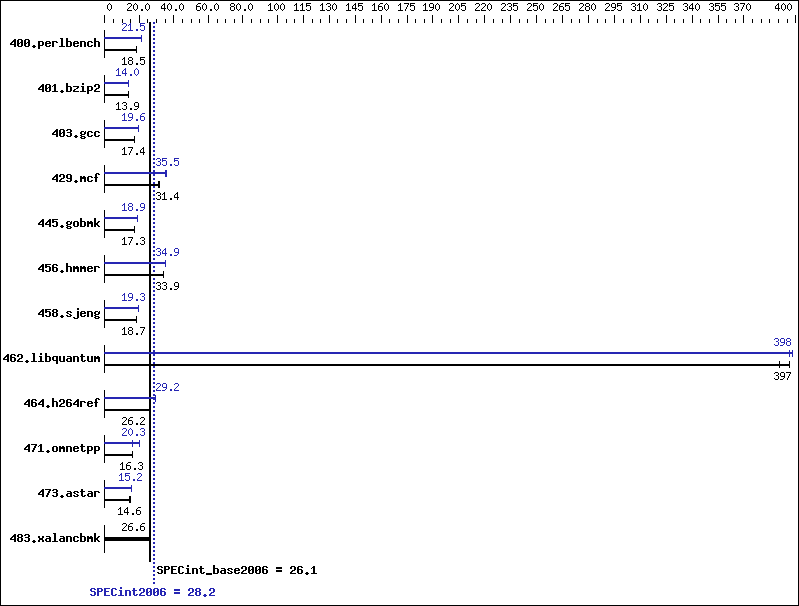

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 528 | 18.5 | 528 | 18.5 | 527 | 18.5 | 454 | 21.5 | 454 | 21.5 | 454 | 21.5 |
| 401.bzip2 | 692 | 14.0 | 692 | 13.9 | 692 | 13.9 | 691 | 14.0 | 691 | 14.0 | 691 | 14.0 |
| 403.gcc | 462 | 17.4 | 463 | 17.4 | 463 | 17.4 | 410 | 19.6 | 410 | 19.6 | 410 | 19.6 |
| 429.mcf | 289 | 31.5 | 291 | 31.4 | 291 | 31.3 | 258 | 35.4 | 256 | 35.6 | 257 | 35.5 |
| 445.gobmk | 601 | 17.4 | 605 | 17.3 | 605 | 17.3 | 555 | 18.9 | 555 | 18.9 | 555 | 18.9 |
| 456.hmmer | 274 | 34.0 | 276 | 33.9 | 276 | 33.8 | 267 | 34.9 | 267 | 34.9 | 267 | 34.9 |
| 458.sjeng | 649 | 18.7 | 649 | 18.7 | 650 | 18.6 | 627 | 19.3 | 627 | 19.3 | 627 | 19.3 |
| 462.libquantum | 53.0 | 391 | 52.2 | 397 | 52.2 | 397 | 52.0 | 398 | 52.0 | 398 | 52.2 | 397 |
| 464.h264ref | 840 | 26.3 | 845 | 26.2 | 845 | 26.2 | 756 | 29.3 | 757 | 29.2 | 758 | 29.2 |
| 471.omnetpp | 384 | 16.3 | 384 | 16.3 | 383 | 16.3 | 307 | 20.3 | 308 | 20.3 | 382 | 16.4 |
| 473.astar | 480 | 14.6 | 480 | 14.6 | 480 | 14.6 | 460 | 15.2 | 461 | 15.2 | 462 | 15.2 |
| 483.xalancbmk | 260 | 26.6 | 258 | 26.7 | 260 | 26.6 | 260 | 26.6 | 258 | 26.7 | 260 | 26.6 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 1066 MHz. BIOS configuration: Data Reuse Optimization = Disable Intel HT Technology = Disable
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
