| CPU2006 license: | 19 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jul-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5507 |
| CPU Characteristics: | |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SATA, 160 GB, 5.4 krpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

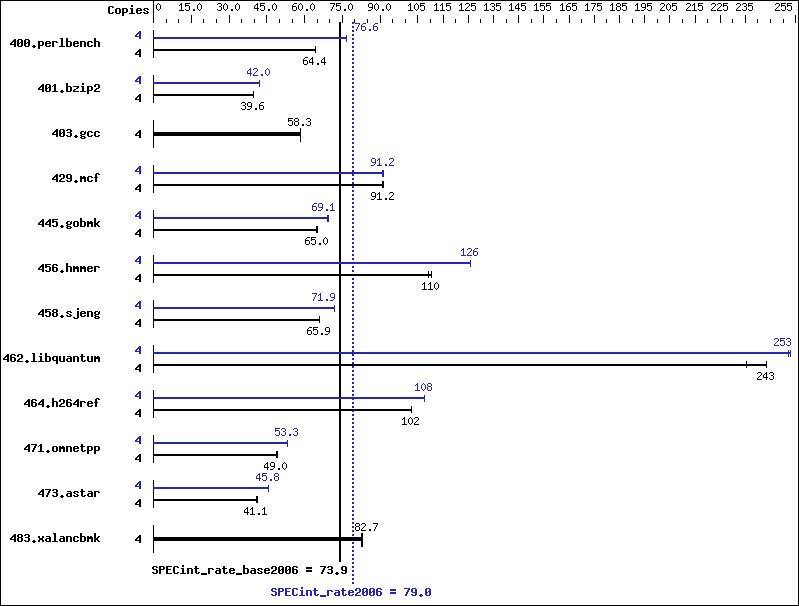

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 608 | 64.2 | 606 | 64.5 | 607 | 64.4 | 4 | 509 | 76.7 | 510 | 76.6 | 510 | 76.6 |
| 401.bzip2 | 4 | 974 | 39.6 | 971 | 39.7 | 974 | 39.6 | 4 | 915 | 42.2 | 919 | 42.0 | 919 | 42.0 |
| 403.gcc | 4 | 553 | 58.3 | 550 | 58.5 | 552 | 58.3 | 4 | 553 | 58.3 | 550 | 58.5 | 552 | 58.3 |
| 429.mcf | 4 | 400 | 91.1 | 400 | 91.3 | 400 | 91.2 | 4 | 400 | 91.2 | 399 | 91.3 | 401 | 91.1 |
| 445.gobmk | 4 | 645 | 65.0 | 645 | 65.1 | 647 | 64.8 | 4 | 607 | 69.1 | 604 | 69.4 | 609 | 68.9 |
| 456.hmmer | 4 | 338 | 110 | 338 | 110 | 342 | 109 | 4 | 297 | 126 | 297 | 126 | 296 | 126 |
| 458.sjeng | 4 | 734 | 65.9 | 734 | 65.9 | 732 | 66.1 | 4 | 674 | 71.9 | 673 | 71.9 | 673 | 71.9 |
| 462.libquantum | 4 | 341 | 243 | 340 | 243 | 352 | 235 | 4 | 329 | 252 | 328 | 253 | 328 | 253 |
| 464.h264ref | 4 | 866 | 102 | 864 | 102 | 865 | 102 | 4 | 823 | 108 | 822 | 108 | 823 | 108 |
| 471.omnetpp | 4 | 510 | 49.0 | 509 | 49.1 | 511 | 48.9 | 4 | 470 | 53.2 | 469 | 53.3 | 468 | 53.4 |
| 473.astar | 4 | 683 | 41.1 | 682 | 41.2 | 685 | 41.0 | 4 | 614 | 45.8 | 613 | 45.8 | 615 | 45.7 |
| 483.xalancbmk | 4 | 333 | 82.8 | 334 | 82.7 | 334 | 82.6 | 4 | 333 | 82.8 | 334 | 82.7 | 334 | 82.6 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 800 MHz. BIOS configuration: Data Reuse Optimization = Disable
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
