CPU2006 license: | 9019 | Test date: | Sep-2010 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | Apr-2010 |
Tested by: | Cisco Systems | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
CPU MHz: | 2933 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 ,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4GB DDR3-1333 MHz DR RDIMM, CL9, ECC) |
Disk Subsystem: | 146 GB SAS, 10K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27-15-2-default, RC4 |
Compiler: | Intel C++ and Fortran Compiler 11.1 IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 l_cprof_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | MicroQuill SmartHeap Library V8.1 (64-bit) |

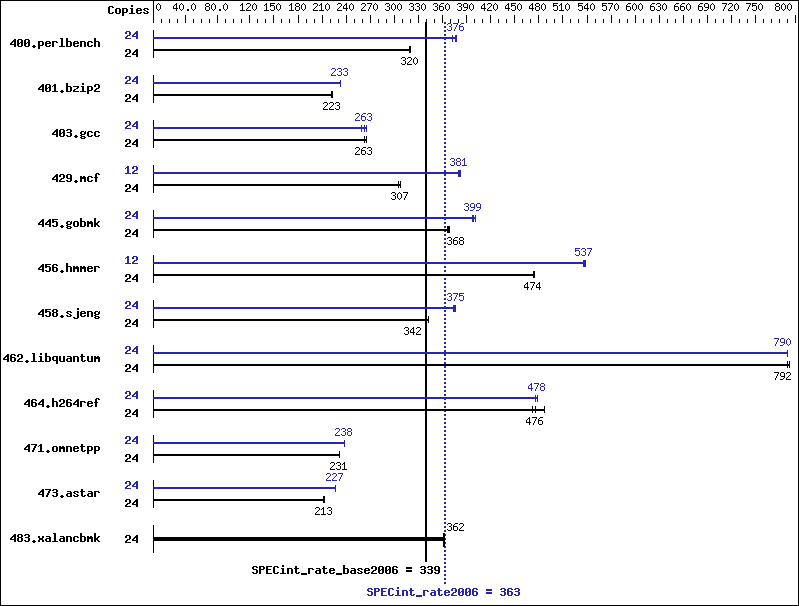

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 734 | 319 | 731 | 321 | 732 | 320 | 24 | 621 | 378 | 623 | 376 | 629 | 373 |
401.bzip2 | 24 | 1042 | 222 | 1037 | 223 | 1037 | 223 | 24 | 995 | 233 | 995 | 233 | 993 | 233 |
403.gcc | 24 | 735 | 263 | 736 | 263 | 729 | 265 | 24 | 727 | 266 | 745 | 259 | 736 | 263 |
429.mcf | 24 | 717 | 305 | 712 | 308 | 712 | 307 | 12 | 287 | 381 | 288 | 379 | 286 | 382 |
445.gobmk | 24 | 684 | 368 | 687 | 366 | 684 | 368 | 24 | 628 | 401 | 633 | 398 | 631 | 399 |
456.hmmer | 24 | 472 | 474 | 472 | 474 | 472 | 474 | 12 | 209 | 537 | 208 | 538 | 209 | 536 |
458.sjeng | 24 | 849 | 342 | 848 | 342 | 848 | 343 | 24 | 774 | 375 | 771 | 377 | 776 | 374 |
462.libquantum | 24 | 630 | 790 | 628 | 792 | 628 | 792 | 24 | 630 | 789 | 629 | 790 | 629 | 790 |
464.h264ref | 24 | 1090 | 487 | 1116 | 476 | 1125 | 472 | 24 | 1117 | 475 | 1111 | 478 | 1109 | 479 |
471.omnetpp | 24 | 649 | 231 | 649 | 231 | 649 | 231 | 24 | 630 | 238 | 631 | 238 | 630 | 238 |
473.astar | 24 | 792 | 213 | 794 | 212 | 792 | 213 | 24 | 743 | 227 | 743 | 227 | 743 | 227 |
483.xalancbmk | 24 | 457 | 362 | 458 | 361 | 458 | 362 | 24 | 457 | 362 | 458 | 361 | 458 | 362 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
ulimit -s unlimited was used to set the stacksize to unlimited prior to run
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
462.libquantum: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
