SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter PS702 Express (3.0 GHz, 16 core,
RedHat)

CPU2006 license: 11 Test date: Oct-2010
Test sponsor: IBM Corporation Hardware Availability: Jun-2010
Tested by: IBM Corporation Software Availability: Nov-2010

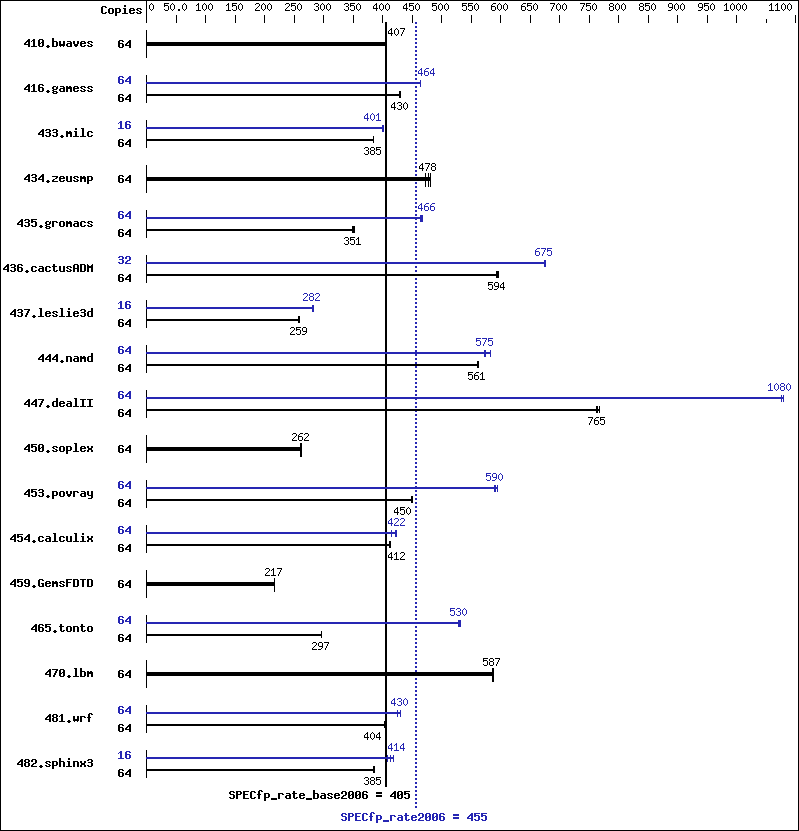

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.30 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (32x4 GB) DDR3 1066 MHz
Disk Subsystem: 1x300 GB SAS SFF 10K RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.0
(ppc64), Kernel 2.6.32-71.el6.ppc64
Compiler: IBM XL C/C++ for Linux, V11.1
Updated with the Nov2010 PTF
IBM XL Fortran for Linux, V13.1
Updated with the Nov2010 PTF
Auto Parallel: No
File System: ext3
System State: Run Level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.5.0-3
-MicroQuill SmartHeap 9
-Apache C++ Standard Library 4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2135 407 2135 407 2139 407 64 2135 407 2135 407 2139 407
416.gamess 64 2913 430 2928 428 2912 430 64 2702 464 2702 464 2701 464
433.milc 64 1526 385 1528 385 1528 385 16 366 401 367 400 366 401
434.zeusmp 64 1218 478 1234 472 1210 481 64 1218 478 1234 472 1210 481
435.gromacs 64 1303 351 1299 352 1311 349 64 979 467 981 466 986 463
436.cactusADM 64 1282 597 1288 594 1289 593 32 565 676 567 674 567 675
437.leslie3d 64 2329 258 2323 259 2323 259 16 533 282 535 281 531 283
444.namd 64 915 561 915 561 912 563 64 895 573 893 575 879 584
447.dealII 64 957 765 960 763 954 768 64 679 1080 680 1080 680 1080
450.soplex 64 2030 263 2036 262 2039 262 64 2030 263 2036 262 2039 262
453.povray 64 758 449 754 451 756 450 64 577 590 577 590 573 595
454.calculix 64 1285 411 1282 412 1275 414 64 1251 422 1248 423 1271 415
459.GemsFDTD 64 3125 217 3128 217 3125 217 64 3125 217 3128 217 3125 217
465.tonto 64 2120 297 2123 297 2119 297 64 1185 531 1189 530 1191 529
470.lbm 64 1498 587 1499 587 1497 587 64 1498 587 1499 587 1497 587
481.wrf 64 1769 404 1775 403 1767 405 64 1680 425 1663 430 1662 430
482.sphinx3 64 3240 385 3235 386 3238 385 16 764 408 753 414 744 419

Peak Tuning Notes

IBM Post-Link Optimization tool with
options "-O4 -nodp" used for
  433.milc 435.gromacs 450.soplex 482.sphinx3
options "-O4 -vrox -nodp" used for
  434.zeusmp
options "-O3 -lu -1 -nodp -sdp 9"  used for
  437.leslie3d 444.namd
options "-O4"  used for
  465.tonto

Submit Notes

The config file option 'submit' was used.
 Benchmarks bound to a processor using numactl on the submit command.

Operating System Notes

ulimit -s (stack) set to 1048576.
Large pages reserved as follows by root user:
  echo 4224 > /proc/sys/vm/nr_hugepages
The following environment varibles were set before the runspec command:
  XLFRTEOPTS=intrinthds=1
  HUGETLB_VERBOSE=0
  HUGETLB_MORECORE=yes
  HUGETLB_ELFMAP=RW
447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.
447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

C++ benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -qrtti   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Fortran benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -qsmallstack=dynlenonheap   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr7   -qtune=pwr7   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align   -qsmallstack=dynlenonheap   -qalias=nostd

Base Other Flags

C benchmarks:

 -qipa=threads

C++ benchmarks:

 -qipa=threads

Fortran benchmarks:

 -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -DSPEC_CPU_LP64   -qfixed   -qextname
437.leslie3d:  -qfixed
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs
470.lbm:  basepeak = yes
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs

C++ benchmarks:

444.namd:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs
447.dealII:  -O4   -qarch=pwr7   -qtune=pwr7   -qrtti   -qcpp_stdinc=/autobench/sources/stdcxx-4.2.1/dist/include/ansi:/autobench/sources/stdcxx-4.2.1/dist/include:/opt/ibmcmp/vacpp/11.1/include   -lsmartheap   -L/autobench/sources/stdcxx-4.2.1/dist/lib   -R/autobench/sources/stdcxx-4.2.1/dist/lib   -lstd8d
450.soplex:  basepeak = yes
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -q64   -lsmartheap64

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qalias=nostd   -lhugetlbfs
434.zeusmp:  basepeak = yes
437.leslie3d:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -q64   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
459.GemsFDTD:  basepeak = yes
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qsimd   -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -lhugetlbfs
436.cactusADM:  -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -qnostrict   -q64   -lhugetlbfs
454.calculix:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
481.wrf:  -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs

Peak Other Flags

C benchmarks:

 -qipa=threads

C++ benchmarks:

 -qipa=threads

Fortran benchmarks:

 -qipa=threads

Benchmarks using both Fortran and C (except as noted below):

 -qipa=threads
481.wrf:

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20101123.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20101123.01.xml.
