SPEC® CINT2006 Result

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 2042G-6RF,
AMD Opteron 6128

SPECint®2006 = 19.6

SPECint_base2006 = 15.5

CPU2006 license:	49	Test date:	Oct-2010
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Mar-2010
Tested by:	Advanced Micro Devices	Software Availability:	May-2010

Hardware
CPU Name:	AMD Opteron 6128
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	32 cores, 4 chips, 8 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache:	None
Memory:	128 GB (32 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.5, Advanced Platform, Kernel 2.6.18-194.el5
Compiler:	x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 SmartHeap 8.1 32-bit Library for Linux

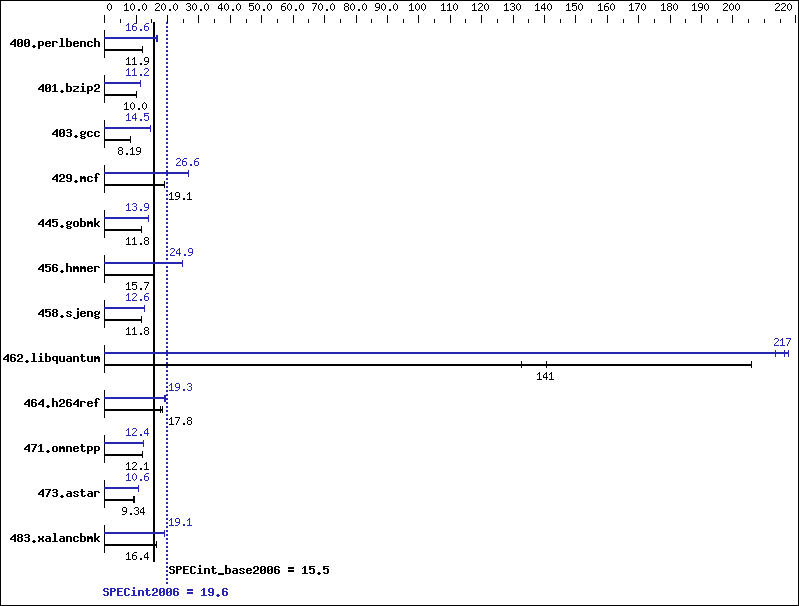

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	819	11.9	819	11.9	820	11.9	585	16.7	592	16.5	589	16.6
401.bzip2	961	10.0	951	10.1	962	10.0	857	11.3	859	11.2	860	11.2
403.gcc	982	8.19	984	8.18	983	8.19	557	14.5	558	14.4	557	14.5
429.mcf	478	19.1	477	19.1	478	19.1	343	26.6	344	26.5	343	26.6
445.gobmk	890	11.8	892	11.8	890	11.8	755	13.9	755	13.9	755	13.9
456.hmmer	594	15.7	593	15.7	597	15.6	375	24.9	375	24.9	375	24.9
458.sjeng	1030	11.7	1026	11.8	1027	11.8	959	12.6	956	12.7	958	12.6
462.libquantum	156	133	101	206	147	141	95.2	218	97.1	213	95.7	217
464.h264ref	1209	18.3	1242	17.8	1244	17.8	1168	19.0	1144	19.3	1142	19.4
471.omnetpp	518	12.1	518	12.1	525	11.9	501	12.5	505	12.4	504	12.4
473.astar	751	9.35	756	9.28	752	9.34	661	10.6	660	10.6	661	10.6
483.xalancbmk	422	16.4	420	16.4	420	16.4	362	19.1	363	19.0	361	19.1

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=8000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-speed-libs-revA/64:/root/work/cpu2006/amd1002mc-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-march=barcelona -Ofast -apo -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m,limit=450 -LNO:parallel_overhead=10000

C++ benchmarks:

-march=barcelona -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -CG:local_sched_alg=1 -CG:unroll_fb_req=on -HP:bdt=2m:heap=2m
401.bzip2:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:cmp_peep=on -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -ipa -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on -CG:unroll_fb_req=on -HP:bdt=2m:heap=2m
456.hmmer:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=0 -OPT:alias=disjoint -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:local_sched_alg=1 -CG:cflow=0 -CG:push_pop_int_saved_regs=off -CG:cmp_peep=on -HP:bdt=2m:heap=2m
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -IPA:min_hotness=32 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on -HP:bdt=2m:heap=2m
462.libquantum:	-march=barcelona -Ofast -apo -LNO:pf2=0 -CG:gcm=off -CG:use_prefetchnta=on -CG:cmp_peep=on -WOPT:aggstr=0 -OPT:alias=disjoint -INLINE:aggressive=on -IPA:space=1000 -IPA:plimit=20000 -mso
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:	-march=barcelona -Ofast -CG:gcm=off -INLINE:aggressive=on -WOPT:if_conv=0 -m32 -HP:bdt=2m:heap=2m
473.astar:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -m32 -HP:bdt=2m:heap=2m
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -CG:cmp_peep=on -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.xml.
