SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH57JG Motherboard (Intel Core i3-540)

CPU2006 license: 13 Test date: Sep-2010
Test sponsor: Intel Corporation Hardware Availability: Jan-2010
Tested by: Intel Corporation Software Availability: Sep-2009

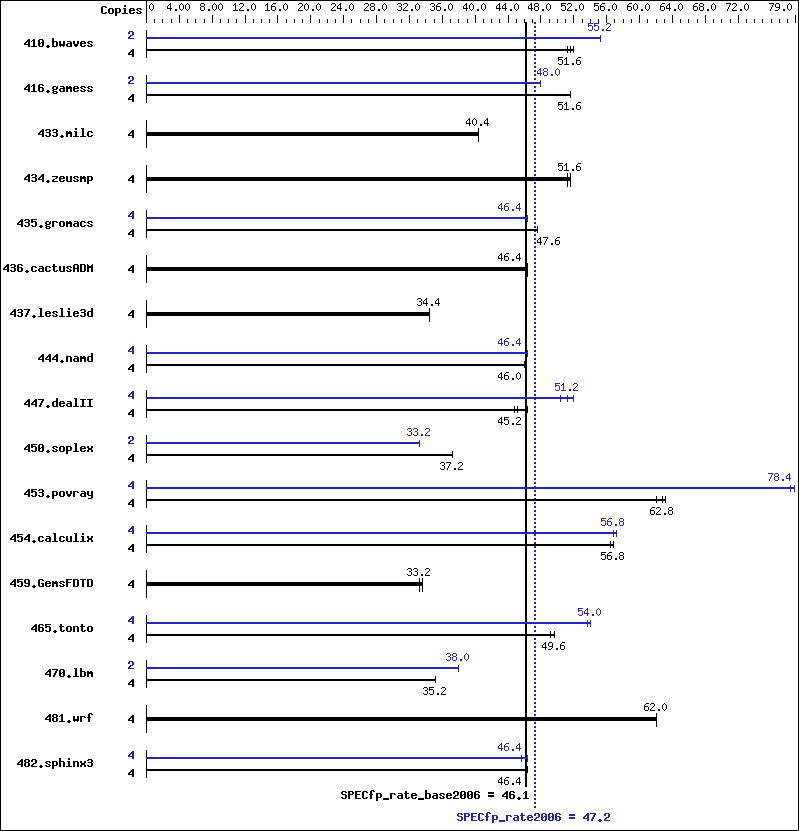

Benchmark results graph
Hardware
CPU Name: Intel Core i3-540
CPU Characteristics:
CPU MHz: 3066
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2 x 2 GB 2Rx8 PC3-10600U-9)
Disk Subsystem: Seagate 1 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler Professional 11.1 for Intel 64
Build 20090903 Package ID: w_cproc_p_11.1.045
Intel Visual Fortran Compiler Professional 11.1
for Intel 64
Build 20090903 Package ID: w_cproc_p_11.1.045,
w_cprof_p_11.1.045
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None
SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1065 51.2 1047 52.0 1051 51.6 2 492 55.2 492 55.2 492 55.2
416.gamess 4 1519 51.6 1520 51.6 1520 51.6 2 817 48.0 817 48.0 817 48.0
433.milc 4 905 40.4 906 40.4 906 40.4 4 905 40.4 906 40.4 906 40.4
434.zeusmp 4 712 51.2 708 51.6 707 51.6 4 712 51.2 708 51.6 707 51.6
435.gromacs 4 601 47.6 602 47.6 601 47.6 4 613 46.4 613 46.4 614 46.4
436.cactusADM 4 1026 46.4 1031 46.4 1030 46.4 4 1026 46.4 1031 46.4 1030 46.4
437.leslie3d 4 1092 34.4 1090 34.4 1090 34.4 4 1092 34.4 1090 34.4 1090 34.4
444.namd 4 699 46.0 699 46.0 699 46.0 4 694 46.4 692 46.4 692 46.4
447.dealII 4 1012 45.2 1018 44.8 983 46.4 4 892 51.2 910 50.4 879 52.0
450.soplex 4 898 37.2 898 37.2 898 37.2 2 503 33.2 503 33.2 503 33.2
453.povray 4 344 62.0 338 63.2 339 62.8 4 272 78.4 270 78.8 272 78.4
454.calculix 4 583 56.8 587 56.4 582 56.8 4 577 57.2 580 56.8 582 56.8
459.GemsFDTD 4 1263 33.6 1274 33.2 1274 33.2 4 1263 33.6 1274 33.2 1274 33.2
465.tonto 4 796 49.6 800 49.2 797 49.6 4 731 54.0 730 54.0 732 53.6
470.lbm 4 1557 35.2 1558 35.2 1557 35.2 2 723 38.0 722 38.0 722 38.0
481.wrf 4 719 62.0 721 62.0 723 62.0 4 719 62.0 721 62.0 723 62.0
482.sphinx3 4 1681 46.4 1684 46.4 1682 46.4 4 1685 46.4 1684 46.4 1704 45.6

Submit Notes

The config file option 'submit' was used.

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /Qlowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
482.sphinx3:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000    -link /FORCE:MULTIPLE
416.gamess:  Same as 410.bwaves
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.xml.
