SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Supermicro A+ Server AS-2022G-URF4+,
AMD Opteron 6140

SPECfp®2006 = 33.8

CPU2006 license: 001176 Test date: Dec-2010
Test sponsor: Supermicro Hardware Availability: Feb-2011
Tested by: Supermicro Software Availability: May-2010

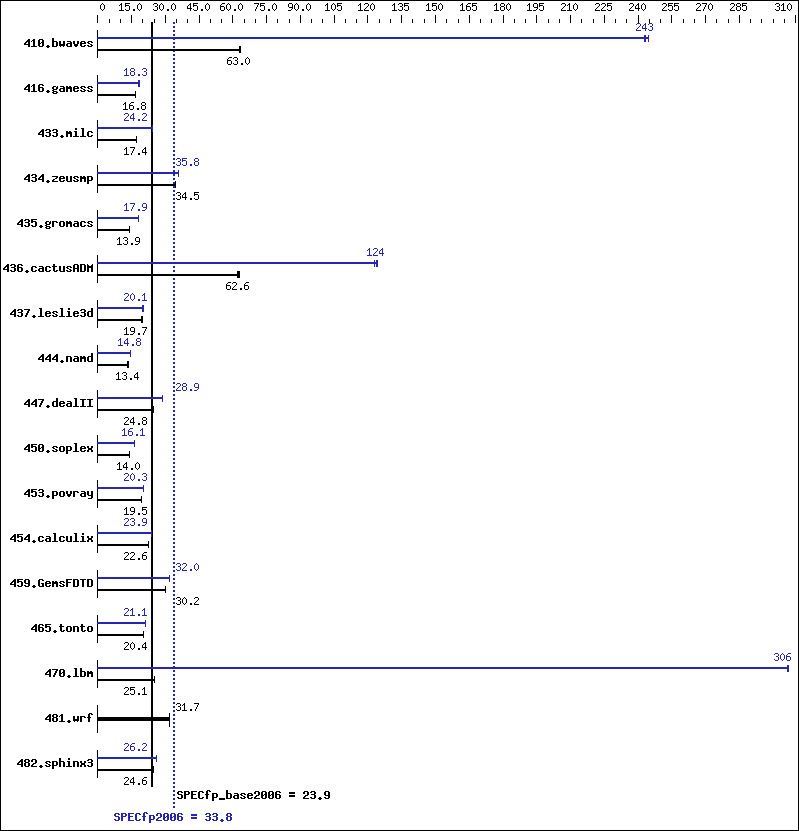

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6140
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache: None
Memory: 64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.5,
Kernel 2.6.18-194.el5
Compiler: x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 216 63.0 216 63.0 215 63.2 55.8 243   55.6 245   55.9 243
416.gamess 1166 16.8 1174 16.7 1167 16.8 1091   17.9 1072   18.3 1067   18.4
433.milc 529 17.3 529 17.4 527 17.4 380   24.2 381   24.1 378   24.3
434.zeusmp 264 34.5 263 34.6 263 34.5 254   35.9 255   35.6 254   35.8
435.gromacs 514 13.9 514 13.9 514 13.9 399   17.9 399   17.9 399   17.9
436.cactusADM 192 62.1 191 62.6 190 62.9 96.7 124   96.2 124   97.2 123
437.leslie3d 477 19.7 479 19.6 478 19.7 472   19.9 466   20.2 468   20.1
444.namd 597 13.4 597 13.4 597 13.4 544   14.8 545   14.7 544   14.8
447.dealII 462 24.8 461 24.8 461 24.8 396   28.9 396   28.9 396   28.9
450.soplex 595 14.0 596 14.0 595 14.0 516   16.2 517   16.1 517   16.1
453.povray 273 19.5 274 19.4 273 19.5 263   20.2 262   20.3 263   20.3
454.calculix 364 22.7 365 22.6 365 22.6 344   24.0 346   23.8 345   23.9
459.GemsFDTD 352 30.2 351 30.2 352 30.1 332   32.0 332   32.0 332   32.0
465.tonto 482 20.4 482 20.4 483 20.4 466   21.1 467   21.1 465   21.2
470.lbm 545 25.2 547 25.1 548 25.1 44.9 306   44.9 306   44.8 307
481.wrf 352 31.8 352 31.7 353 31.7 352   31.8 352   31.7 353   31.7
482.sphinx3 792 24.6 790 24.7 793 24.6 744   26.2 742   26.3 743   26.2

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152' was used to set environment locked pages in memory limit

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

Platform Notes

 Fan speed set to Full Speed in BIOS Setup.
 The system uses a Supermicro H8DGU-LN4F+ motherboard.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-speed-libs-revA/64:/usr/cpu2006/amd1002-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m

C++ benchmarks:

 -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

 -march=barcelona   -Ofast   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

 -march=barcelona   -Ofast   -HP:bdt=2m:heap=2m   -apo   -LNO:parallel_overhead=10000   -LNO:fusion_peeling_limit=0

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -Ofast   -apo   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -CG:compute_to=on   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  -march=barcelona   -Ofast   -mso   -apo   -CG:sse_cse_regs=0   -LNO:prefetch_ahead=4   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:compute_to=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -OPT:alias=restricted   -m3dnow   -IPA:inline=off
482.sphinx3:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -march=barcelona   -Ofast   -apo   -OPT:malloc_alg=2   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -LNO:blocking=off   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -LNO:apo_use_feedback=on   -WOPT:aggstr=0
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -Ofast   -apo   -LNO:blocking=off   -LNO:interchange=off   -LNO:fusion_peeling_limit=0   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -CG:compute_to=on   -GRA:prioritize_by_density=on   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=barcelona   -Ofast   -apo   -OPT:unroll_size=256   -LNO:prefetch_ahead=4   -LNO:parallel_overhead=32768   -GRA:prioritize_by_density=on   -m3dnow   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -Ofast   -apo   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -Ofast   -apo   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -apo   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LANG:heap_allocation_threshold=1000   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m
454.calculix:  -march=barcelona   -Ofast   -LNO:prefetch_ahead=30   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m   -apo
481.wrf:  basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.xml.
