SPEC® CFP2006 Result

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190B8228,
AMD Opteron 4180

SPECfp®2006 = 32.7

SPECfp_base2006 = 25.3

CPU2006 license:	49	Test date:	Nov-2010
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Aug-2010
Tested by:	Advanced Micro Devices	Software Availability:	May-2010

Hardware
CPU Name:	AMD Opteron 4180
CPU Characteristics:
CPU MHz:	2600
FPU:	Integrated
CPU(s) enabled:	12 cores, 2 chips, 6 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (4 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 128 GB SATA SSD Crucial RealSSD C300 CTFDDAC128MAG-1G1
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

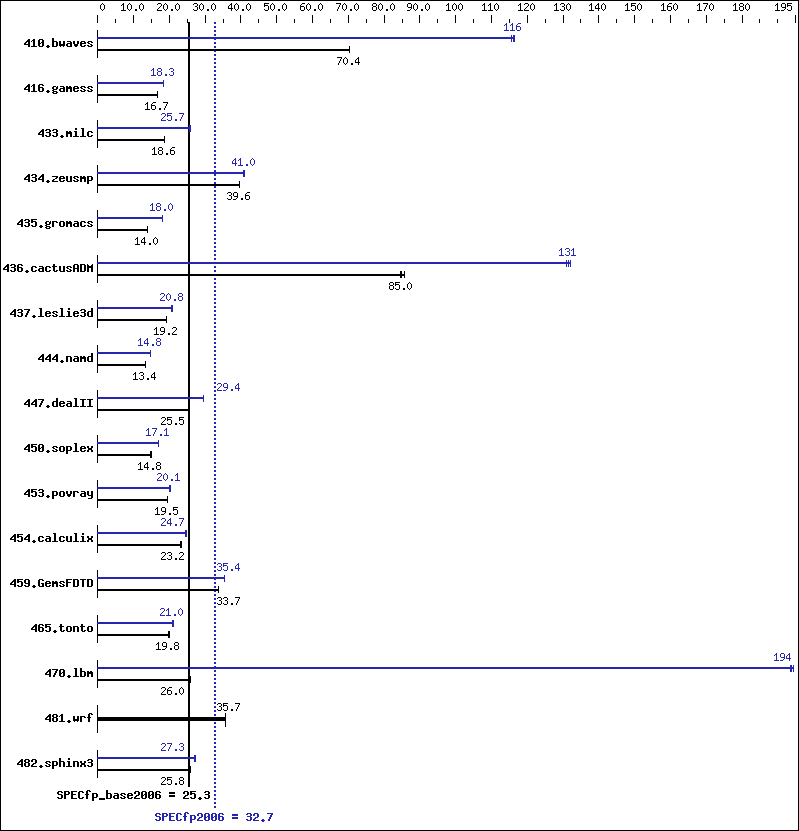

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	193	70.5	193	70.3	193	70.4	117	116	118	116	117	116
416.gamess	1182	16.6	1170	16.7	1172	16.7	1069	18.3	1067	18.4	1067	18.3
433.milc	491	18.7	494	18.6	492	18.6	357	25.7	358	25.6	356	25.8
434.zeusmp	230	39.6	229	39.7	230	39.6	222	41.0	222	41.0	223	40.8
435.gromacs	511	14.0	510	14.0	510	14.0	397	18.0	397	18.0	396	18.0
436.cactusADM	141	84.6	141	85.0	140	85.6	90.9	131	90.5	132	91.2	131
437.leslie3d	490	19.2	489	19.2	491	19.1	452	20.8	454	20.7	452	20.8
444.namd	597	13.4	597	13.4	598	13.4	543	14.8	543	14.8	544	14.7
447.dealII	450	25.4	448	25.5	449	25.5	388	29.4	389	29.4	389	29.4
450.soplex	562	14.8	560	14.9	563	14.8	488	17.1	488	17.1	488	17.1
453.povray	273	19.5	272	19.6	274	19.4	263	20.2	265	20.1	266	20.0
454.calculix	354	23.3	355	23.2	355	23.2	337	24.5	333	24.8	334	24.7
459.GemsFDTD	314	33.7	314	33.7	314	33.8	300	35.4	300	35.4	300	35.4
465.tonto	497	19.8	493	20.0	497	19.8	469	21.0	467	21.1	472	20.9
470.lbm	528	26.0	529	26.0	534	25.7	70.7	194	71.0	193	70.9	194
481.wrf	313	35.7	313	35.6	313	35.7	313	35.7	313	35.6	313	35.7
482.sphinx3	755	25.8	756	25.8	755	25.8	712	27.4	713	27.3	718	27.2

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=2000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

powersave -f was used to set the CPU frequency to its maximum.

Binaries were compiled on SLES10 SP2 with binutils 2.18

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002-speed-libs-revA/64:/root/work/cpu2006/amd1002-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -Ofast -apo -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -CG:compute_to=on -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	-march=barcelona -Ofast -mso -apo -CG:sse_cse_regs=0 -LNO:prefetch_ahead=4 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:compute_to=on -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -OPT:alias=restricted -m3dnow -IPA:inline=off
482.sphinx3:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m:heap=2m
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:	-march=barcelona -Ofast -apo -OPT:malloc_alg=2 -CG:use_prefetchnta=on -CG:cmp_peep=on -LNO:blocking=off -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -LNO:apo_use_feedback=on -WOPT:aggstr=0
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -Ofast -apo -LNO:blocking=off -LNO:interchange=off -LNO:fusion_peeling_limit=0 -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -CG:compute_to=on -GRA:prioritize_by_density=on -HP:bdt=2m:heap=2m
437.leslie3d:	-march=barcelona -Ofast -apo -OPT:unroll_size=256 -LNO:prefetch_ahead=4 -LNO:parallel_overhead=32768 -GRA:prioritize_by_density=on -m3dnow -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -Ofast -apo -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -Ofast -apo -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -Ofast -apo -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LANG:heap_allocation_threshold=1000 -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m
454.calculix:	-march=barcelona -Ofast -LNO:prefetch_ahead=30 -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m -apo
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.xml.
