SPEC® CINT2006 Result

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 2042G-6RF,
AMD Opteron 6176

SPECint®2006 = 21.8

SPECint_base2006 = 17.7

CPU2006 license:	49	Test date:	Nov-2010
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Feb-2011
Tested by:	Advanced Micro Devices	Software Availability:	May-2010

Hardware
CPU Name:	AMD Opteron 6176
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	48 cores, 4 chips, 12 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	128 GB (32 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.5, Advanced Platform, Kernel 2.6.18-194.el5
Compiler:	x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 SmartHeap 8.1 32-bit Library for Linux

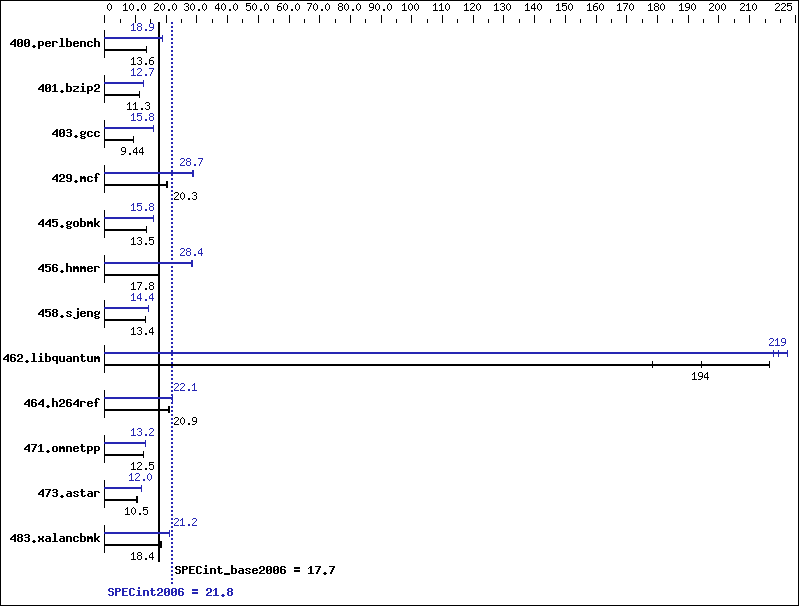

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	719	13.6	718	13.6	719	13.6	516	18.9	519	18.8	518	18.9
401.bzip2	854	11.3	847	11.4	851	11.3	758	12.7	760	12.7	760	12.7
403.gcc	854	9.43	852	9.45	853	9.44	508	15.8	511	15.8	511	15.8
429.mcf	451	20.2	450	20.3	450	20.3	317	28.7	319	28.6	317	28.8
445.gobmk	779	13.5	779	13.5	780	13.4	662	15.8	663	15.8	663	15.8
456.hmmer	525	17.8	531	17.6	524	17.8	331	28.2	328	28.5	328	28.4
458.sjeng	905	13.4	903	13.4	903	13.4	843	14.3	841	14.4	842	14.4
462.libquantum	107	194	95.7	217	116	178	94.4	219	95.1	218	93.3	222
464.h264ref	1061	20.9	1058	20.9	1070	20.7	1001	22.1	1000	22.1	996	22.2
471.omnetpp	500	12.5	500	12.5	501	12.5	475	13.2	475	13.1	474	13.2
473.astar	669	10.5	668	10.5	668	10.5	587	12.0	588	11.9	586	12.0
483.xalancbmk	375	18.4	377	18.3	376	18.4	325	21.2	326	21.2	326	21.1

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=8000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006/amd1002mc-speed-libs-revA/64:/root/work/cpu2006/amd1002mc-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-march=barcelona -Ofast -apo -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m,limit=450 -LNO:parallel_overhead=10000

C++ benchmarks:

-march=barcelona -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -CG:local_sched_alg=1 -CG:unroll_fb_req=on -HP:bdt=2m:heap=2m
401.bzip2:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:cmp_peep=on -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -ipa -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on -CG:unroll_fb_req=on -HP:bdt=2m:heap=2m
456.hmmer:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=0 -OPT:alias=disjoint -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:local_sched_alg=1 -CG:cflow=0 -CG:push_pop_int_saved_regs=off -CG:cmp_peep=on -HP:bdt=2m:heap=2m
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -IPA:min_hotness=32 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on -HP:bdt=2m:heap=2m
462.libquantum:	-march=barcelona -Ofast -apo -LNO:pf2=0 -CG:gcm=off -CG:use_prefetchnta=on -CG:cmp_peep=on -WOPT:aggstr=0 -OPT:alias=disjoint -INLINE:aggressive=on -IPA:space=1000 -IPA:plimit=20000 -mso
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:	-march=barcelona -Ofast -CG:gcm=off -INLINE:aggressive=on -WOPT:if_conv=0 -m32 -HP:bdt=2m:heap=2m
473.astar:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -m32 -HP:bdt=2m:heap=2m
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -CG:cmp_peep=on -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.xml.
