CPU2006 license: | 19 | Test date: | Jan-2011 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
Tested by: | Fujitsu | Software Availability: | Nov-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5606 |
CPU Characteristics: | |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1067 MHz and CL7) |
Disk Subsystem: | 1 x SAS, 300 GB, 10000 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.0.082 Build 20101006 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | none |

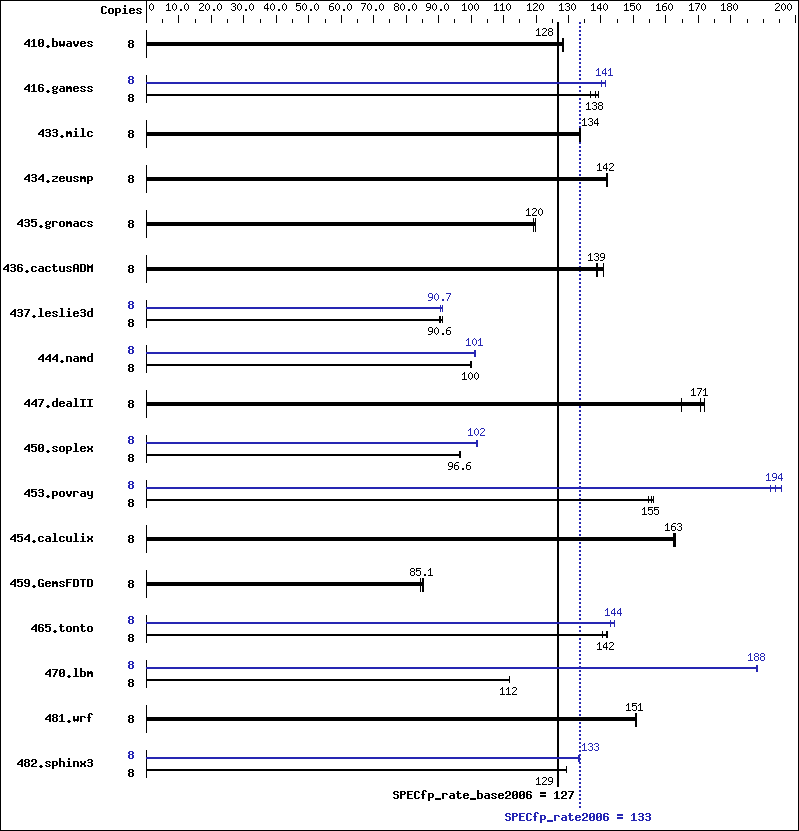

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 847 | 128 | 846 | 129 | 848 | 128 | 8 | 847 | 128 | 846 | 129 | 848 | 128 |
416.gamess | 8 | 1145 | 137 | 1126 | 139 | 1133 | 138 | 8 | 1118 | 140 | 1107 | 141 | 1107 | 142 |
433.milc | 8 | 550 | 134 | 550 | 134 | 550 | 134 | 8 | 550 | 134 | 550 | 134 | 550 | 134 |
434.zeusmp | 8 | 514 | 142 | 512 | 142 | 513 | 142 | 8 | 514 | 142 | 512 | 142 | 513 | 142 |
435.gromacs | 8 | 477 | 120 | 479 | 119 | 477 | 120 | 8 | 477 | 120 | 479 | 119 | 477 | 120 |
436.cactusADM | 8 | 689 | 139 | 688 | 139 | 679 | 141 | 8 | 689 | 139 | 688 | 139 | 679 | 141 |
437.leslie3d | 8 | 830 | 90.6 | 833 | 90.3 | 826 | 91.0 | 8 | 831 | 90.5 | 829 | 90.7 | 823 | 91.3 |
444.namd | 8 | 640 | 100 | 642 | 99.9 | 641 | 100 | 8 | 634 | 101 | 634 | 101 | 634 | 101 |
447.dealII | 8 | 533 | 172 | 555 | 165 | 536 | 171 | 8 | 533 | 172 | 555 | 165 | 536 | 171 |
450.soplex | 8 | 691 | 96.6 | 689 | 96.8 | 690 | 96.6 | 8 | 656 | 102 | 655 | 102 | 654 | 102 |
453.povray | 8 | 274 | 155 | 272 | 156 | 275 | 155 | 8 | 222 | 192 | 220 | 194 | 218 | 196 |
454.calculix | 8 | 406 | 162 | 406 | 163 | 405 | 163 | 8 | 406 | 162 | 406 | 163 | 405 | 163 |
459.GemsFDTD | 8 | 1004 | 84.6 | 998 | 85.1 | 995 | 85.3 | 8 | 1004 | 84.6 | 998 | 85.1 | 995 | 85.3 |
465.tonto | 8 | 555 | 142 | 560 | 141 | 556 | 142 | 8 | 546 | 144 | 546 | 144 | 551 | 143 |
470.lbm | 8 | 984 | 112 | 983 | 112 | 983 | 112 | 8 | 584 | 188 | 584 | 188 | 585 | 188 |
481.wrf | 8 | 593 | 151 | 593 | 151 | 593 | 151 | 8 | 593 | 151 | 593 | 151 | 593 | 151 |
482.sphinx3 | 8 | 1205 | 129 | 1205 | 129 | 1205 | 129 | 8 | 1170 | 133 | 1169 | 133 | 1173 | 133 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Large pages were not enabled for this run
BIOS configuration: Data Reuse Optimization = Disable Performance/Power Setting = Traditional
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 SP1 with Binutils 2.18.50.0.7.20080502
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div |
-xSSE4.2 -ipo -O3 -no-prec-div -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | basepeak = yes |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
