| CPU2006 license: | 11 | Test date: | Feb-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5672 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

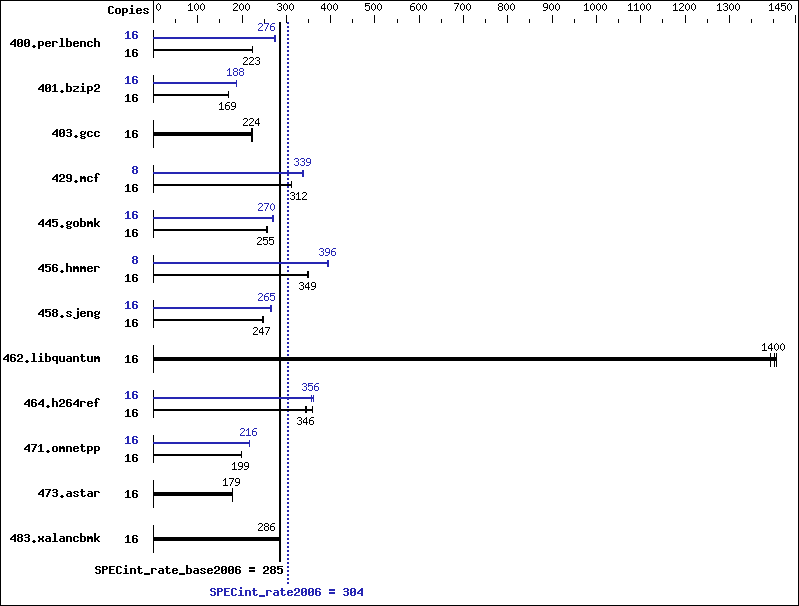

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 702 | 223 | 697 | 224 | 702 | 223 | 16 | 567 | 276 | 565 | 276 | 571 | 274 |
| 401.bzip2 | 16 | 916 | 169 | 916 | 169 | 915 | 169 | 16 | 821 | 188 | 820 | 188 | 821 | 188 |
| 403.gcc | 16 | 576 | 224 | 576 | 224 | 581 | 222 | 16 | 576 | 224 | 576 | 224 | 581 | 222 |
| 429.mcf | 16 | 468 | 312 | 468 | 312 | 468 | 312 | 8 | 216 | 337 | 215 | 339 | 216 | 339 |
| 445.gobmk | 16 | 659 | 255 | 652 | 257 | 660 | 254 | 16 | 621 | 270 | 619 | 271 | 626 | 268 |
| 456.hmmer | 16 | 427 | 350 | 429 | 348 | 427 | 349 | 8 | 189 | 396 | 189 | 396 | 190 | 393 |
| 458.sjeng | 16 | 782 | 247 | 785 | 247 | 784 | 247 | 16 | 731 | 265 | 730 | 265 | 730 | 265 |
| 462.libquantum | 16 | 236 | 1410 | 238 | 1390 | 237 | 1400 | 16 | 236 | 1410 | 238 | 1390 | 237 | 1400 |
| 464.h264ref | 16 | 1023 | 346 | 989 | 358 | 1034 | 343 | 16 | 995 | 356 | 995 | 356 | 982 | 361 |
| 471.omnetpp | 16 | 502 | 199 | 502 | 199 | 501 | 200 | 16 | 463 | 216 | 463 | 216 | 463 | 216 |
| 473.astar | 16 | 627 | 179 | 627 | 179 | 627 | 179 | 16 | 627 | 179 | 627 | 179 | 627 | 179 |
| 483.xalancbmk | 16 | 386 | 286 | 387 | 286 | 387 | 286 | 16 | 386 | 286 | 387 | 286 | 387 | 286 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 7200 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Turbo Mode enabled in BIOS Turbo Boost set to Traditional in BIOS Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
