SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Advanced Micro Devices)

Gigabyte GA-880GMA-USB3,
AMD Phenom II X2 555

CPU2006 license: 49 Test date: Apr-2011
Test sponsor: Advanced Micro Devices Hardware Availability: Apr-2010
Tested by: Advanced Micro Devices Software Availability: Jul-2010

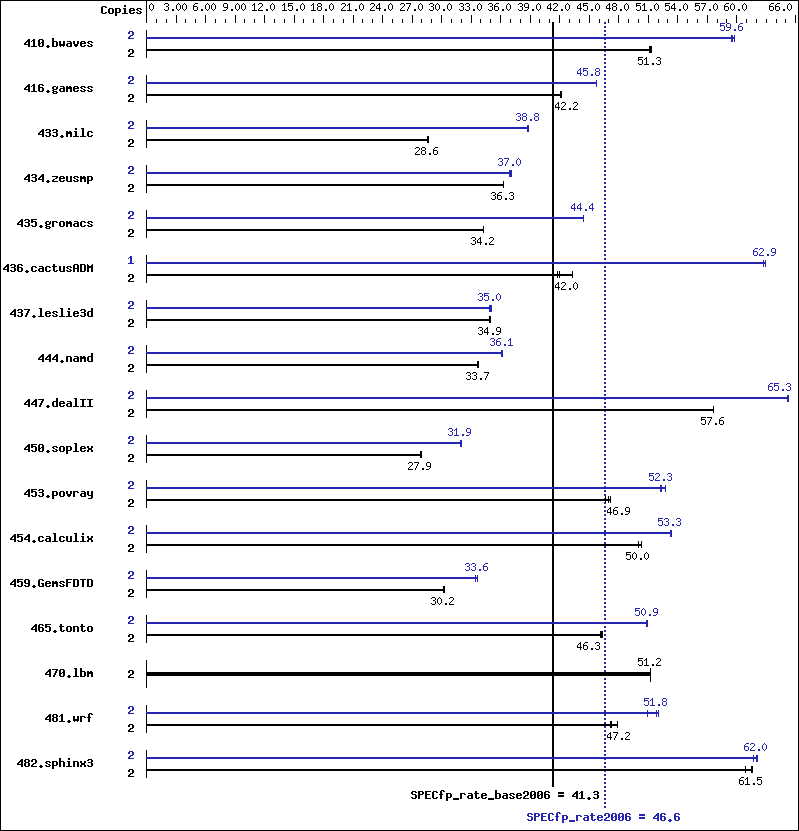

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X2 555
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 8 GB (4 x 2 GB 1Rx4 PC3-10600U-9)
Disk Subsystem: 1 x 2 TB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP1 (x86_64),
Kernel 2.6.32.12-0.7-default
Compiler: x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 532 51.1 530 51.3 530 51.3 2 456 59.6 455 59.8 457 59.4
416.gamess 2 928 42.2 931 42.1 929 42.2 2 855 45.8 856 45.7 856 45.8
433.milc 2 642 28.6 642 28.6 641 28.6 2 473 38.8 474 38.8 473 38.8
434.zeusmp 2 502 36.3 502 36.3 502 36.2 2 492 37.0 494 36.9 491 37.1
435.gromacs 2 417 34.2 417 34.2 417 34.3 2 321 44.4 321 44.4 321 44.4
436.cactusADM 2 552 43.3 570 42.0 571 41.8 1 190 62.9 190 63.0 191 62.7
437.leslie3d 2 539 34.9 538 34.9 538 34.9 2 540 34.8 536 35.1 538 35.0
444.namd 2 476 33.7 476 33.7 476 33.7 2 444 36.1 444 36.1 443 36.2
447.dealII 2 397 57.6 397 57.6 397 57.6 2 351 65.3 351 65.3 351 65.2
450.soplex 2 599 27.8 598 27.9 597 27.9 2 523 31.9 522 31.9 521 32.0
453.povray 2 228 46.6 227 46.9 225 47.2 2 203 52.3 204 52.3 202 52.8
454.calculix 2 330 50.0 330 50.0 328 50.3 2 310 53.2 310 53.3 309 53.3
459.GemsFDTD 2 703 30.2 702 30.2 701 30.3 2 631 33.6 631 33.6 634 33.5
465.tonto 2 426 46.2 425 46.3 425 46.3 2 387 50.9 386 50.9 387 50.9
470.lbm 2 536 51.3 537 51.2 537 51.2 2 536 51.3 537 51.2 537 51.2
481.wrf 2 467 47.9 474 47.1 473 47.2 2 429 52.1 438 51.0 431 51.8
482.sphinx3 2 634 61.5 640 60.9 633 61.6 2 632 61.7 628 62.1 629 62.0

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=1792 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Binaries were compiled on SLES10 SP2 with binutils 2.18

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "1792"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd1002-rate-libs-revC/64:/root/work/cpu2006v1.1/amd1002-rate-libs-revC/32"
OMP_NUM_THREADS = "2"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m

C++ benchmarks:

 -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -HP:bdt=2m

Fortran benchmarks:

 -march=barcelona   -mso   -Ofast   -HP

Benchmarks using both Fortran and C:

 -march=barcelona   -mso   -Ofast   -OPT:malloc_alg=1   -HP:bdt=2m   -HP

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=barcelona   -mso   -Ofast   -CG:movnti=1   -CG:local_sched_alg=1   -CG:locs_shallow_depth=1   -HP:bdt=2m:heap=2m   -LNO:prefetch=3
470.lbm:  basepeak = yes
482.sphinx3:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:sse_cse_regs=0   -CG:locs_shallow_depth=1   -CG:cmp_peep=on   -CG:local_sched_alg=1   -INLINE:aggressive=on

C++ benchmarks:

444.namd:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -CG:compute_to=on   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=barcelona   -mso   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m
453.povray:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -march=barcelona   -mso   -O3   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:prefetch_ahead=5   -LNO:ignore_feedback=off   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:prefetch=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -OPT:treeheight=on   -OPT:unroll_size=256   -CG:cmp_peep=on   -GRA:prioritize_by_density=on   -HP
437.leslie3d:  -march=barcelona   -mso   -Ofast   -HP:bdt=2m:heap=2m
459.GemsFDTD:  -march=barcelona   -mso   -Ofast   -LNO:fission=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:local_sched_alg=1   -HP
465.tonto:  -march=barcelona   -mso   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -mso   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=barcelona   -mso   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -apo   -LNO:prefetch_ahead=1   -HP:bdt=2m:heap=2m   -LANG:heap_allocation_threshold=100
454.calculix:  -march=barcelona   -mso   -Ofast   -CG:load_exe=0   -CG:ptr_load_use=0   -CG:local_sched_alg=2   -CG:compute_to=on   -LNO:prefetch_ahead=30   -WOPT:unroll=2   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=barcelona   -mso   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -m3dnow   -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.20110119.xml.
