| CPU2006 license: | 11 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5603 |
| CPU Characteristics: | |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1067 MHz) |
| Disk Subsystem: | 1 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

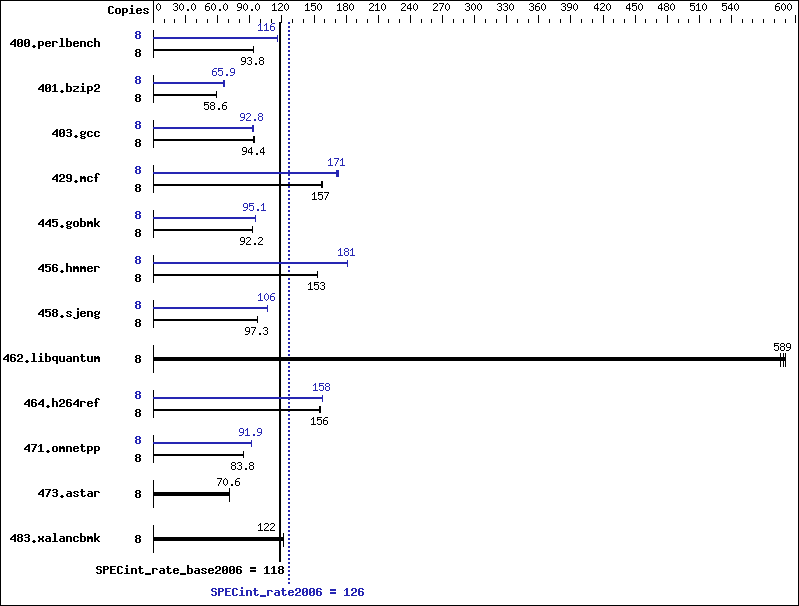

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 834 | 93.8 | 834 | 93.8 | 835 | 93.6 | 8 | 674 | 116 | 674 | 116 | 675 | 116 |
| 401.bzip2 | 8 | 1316 | 58.6 | 1317 | 58.6 | 1317 | 58.6 | 8 | 1171 | 65.9 | 1169 | 66.1 | 1173 | 65.8 |
| 403.gcc | 8 | 682 | 94.4 | 690 | 93.3 | 681 | 94.6 | 8 | 692 | 93.1 | 699 | 92.2 | 694 | 92.8 |
| 429.mcf | 8 | 464 | 157 | 464 | 157 | 463 | 158 | 8 | 428 | 171 | 426 | 171 | 422 | 173 |
| 445.gobmk | 8 | 911 | 92.1 | 907 | 92.5 | 910 | 92.2 | 8 | 882 | 95.2 | 882 | 95.1 | 882 | 95.1 |
| 456.hmmer | 8 | 487 | 153 | 487 | 153 | 488 | 153 | 8 | 412 | 181 | 412 | 181 | 412 | 181 |
| 458.sjeng | 8 | 995 | 97.3 | 995 | 97.3 | 996 | 97.2 | 8 | 910 | 106 | 910 | 106 | 910 | 106 |
| 462.libquantum | 8 | 283 | 586 | 281 | 590 | 281 | 589 | 8 | 283 | 586 | 281 | 590 | 281 | 589 |
| 464.h264ref | 8 | 1135 | 156 | 1138 | 156 | 1140 | 155 | 8 | 1123 | 158 | 1119 | 158 | 1120 | 158 |
| 471.omnetpp | 8 | 597 | 83.8 | 597 | 83.8 | 598 | 83.6 | 8 | 544 | 91.9 | 544 | 91.9 | 544 | 91.9 |
| 473.astar | 8 | 793 | 70.8 | 795 | 70.6 | 796 | 70.5 | 8 | 793 | 70.8 | 795 | 70.6 | 796 | 70.5 |
| 483.xalancbmk | 8 | 454 | 122 | 454 | 122 | 454 | 122 | 8 | 454 | 122 | 454 | 122 | 454 | 122 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 7200 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Power C-State enabled in BIOS Data Reuse disabled in BIOS Demand Scrub disabled in BIOS
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
