| CPU2006 license: | 11 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8867L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 4 x 50 GB SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

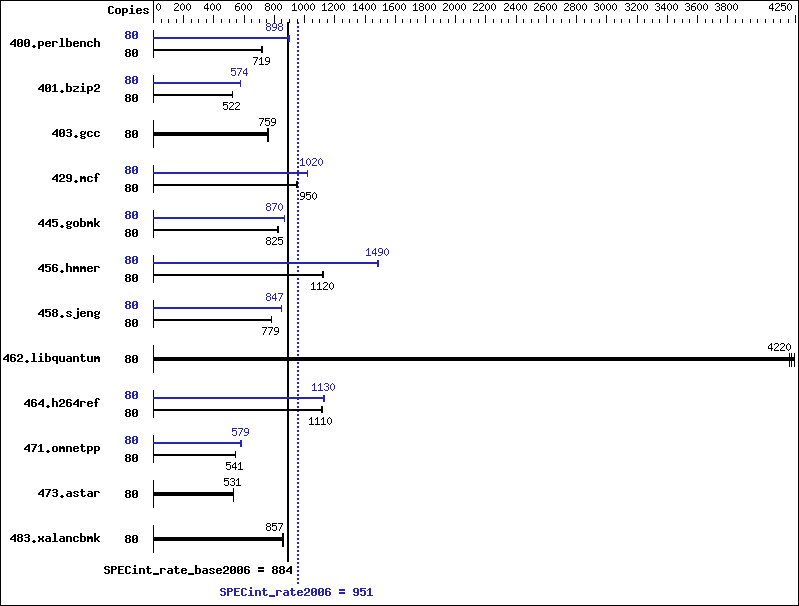

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 80 | 1088 | 719 | 1090 | 717 | 1086 | 720 | 80 | 874 | 894 | 870 | 898 | 870 | 898 |
| 401.bzip2 | 80 | 1480 | 522 | 1480 | 522 | 1476 | 523 | 80 | 1341 | 576 | 1345 | 574 | 1345 | 574 |
| 403.gcc | 80 | 852 | 756 | 847 | 760 | 849 | 759 | 80 | 852 | 756 | 847 | 760 | 849 | 759 |
| 429.mcf | 80 | 770 | 948 | 765 | 953 | 768 | 950 | 80 | 717 | 1020 | 716 | 1020 | 716 | 1020 |
| 445.gobmk | 80 | 1020 | 823 | 1018 | 825 | 1013 | 828 | 80 | 965 | 870 | 965 | 870 | 968 | 867 |
| 456.hmmer | 80 | 667 | 1120 | 663 | 1120 | 663 | 1130 | 80 | 501 | 1490 | 503 | 1490 | 502 | 1490 |
| 458.sjeng | 80 | 1243 | 779 | 1239 | 781 | 1242 | 779 | 80 | 1142 | 848 | 1143 | 847 | 1142 | 847 |
| 462.libquantum | 80 | 394 | 4210 | 391 | 4240 | 393 | 4220 | 80 | 394 | 4210 | 391 | 4240 | 393 | 4220 |
| 464.h264ref | 80 | 1590 | 1110 | 1591 | 1110 | 1586 | 1120 | 80 | 1568 | 1130 | 1568 | 1130 | 1574 | 1120 |
| 471.omnetpp | 80 | 922 | 542 | 926 | 540 | 924 | 541 | 80 | 863 | 579 | 864 | 579 | 863 | 579 |
| 473.astar | 80 | 1059 | 530 | 1057 | 531 | 1058 | 531 | 80 | 1059 | 530 | 1057 | 531 | 1058 | 531 |
| 483.xalancbmk | 80 | 644 | 858 | 644 | 857 | 645 | 856 | 80 | 644 | 858 | 644 | 857 | 645 | 856 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 > /proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 52000 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Turbo Boost Power Optimization set to Traditional
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
