| CPU2006 license: | 55 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2010 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5650 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.06 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

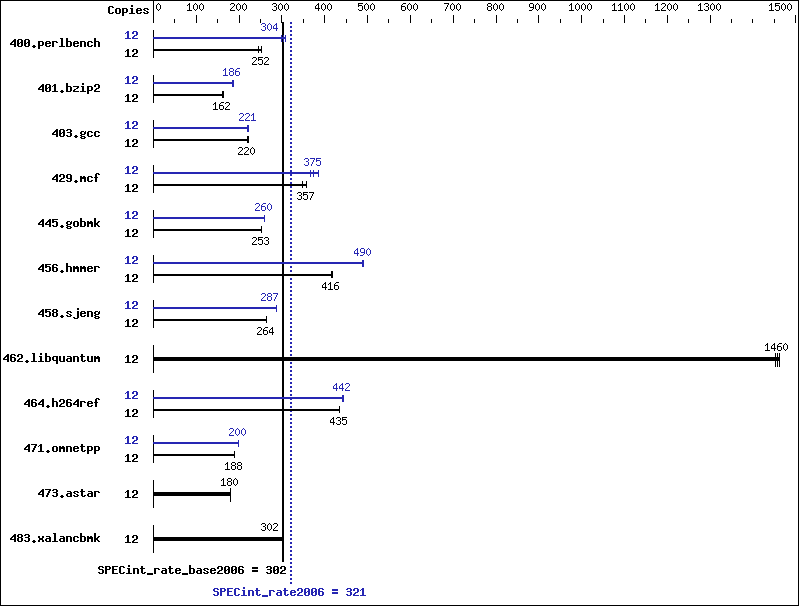

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 12 | 476 | 246 | 466 | 252 | 464 | 252 | 12 | 392 | 299 | 385 | 304 | 379 | 309 |
| 401.bzip2 | 12 | 714 | 162 | 706 | 164 | 719 | 161 | 12 | 628 | 184 | 624 | 186 | 620 | 187 |
| 403.gcc | 12 | 439 | 220 | 439 | 220 | 437 | 221 | 12 | 441 | 219 | 437 | 221 | 436 | 221 |
| 429.mcf | 12 | 315 | 348 | 307 | 357 | 307 | 357 | 12 | 299 | 367 | 284 | 385 | 292 | 375 |
| 445.gobmk | 12 | 499 | 252 | 498 | 253 | 498 | 253 | 12 | 485 | 260 | 484 | 260 | 485 | 260 |
| 456.hmmer | 12 | 267 | 419 | 269 | 416 | 269 | 416 | 12 | 228 | 490 | 229 | 489 | 228 | 491 |
| 458.sjeng | 12 | 550 | 264 | 551 | 263 | 551 | 264 | 12 | 506 | 287 | 506 | 287 | 505 | 287 |
| 462.libquantum | 12 | 171 | 1450 | 171 | 1460 | 170 | 1460 | 12 | 171 | 1450 | 171 | 1460 | 170 | 1460 |
| 464.h264ref | 12 | 611 | 434 | 610 | 435 | 610 | 435 | 12 | 601 | 442 | 600 | 443 | 601 | 442 |
| 471.omnetpp | 12 | 398 | 188 | 398 | 188 | 399 | 188 | 12 | 376 | 200 | 376 | 200 | 376 | 200 |
| 473.astar | 12 | 468 | 180 | 468 | 180 | 468 | 180 | 12 | 468 | 180 | 468 | 180 | 468 | 180 |
| 483.xalancbmk | 12 | 275 | 301 | 275 | 302 | 274 | 302 | 12 | 275 | 301 | 275 | 302 | 274 | 302 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled)
General Notes
The Dell PowerEdge R410 and the Bull NovaScale R430 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R410 model. Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
