| CPU2006 license: | 4 | Test date: | Aug-2011 |
|---|---|---|---|
| Test sponsor: | SGI | Hardware Availability: | Feb-2011 |
| Tested by: | SGI | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5687 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.86 GHz |
| CPU MHz: | 3600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 876 GB RAID 5 6 x 146 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, kernel 2.6.32.36-0.5-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA32 and Intel 64 12.1.0.225 Build 20110803 |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

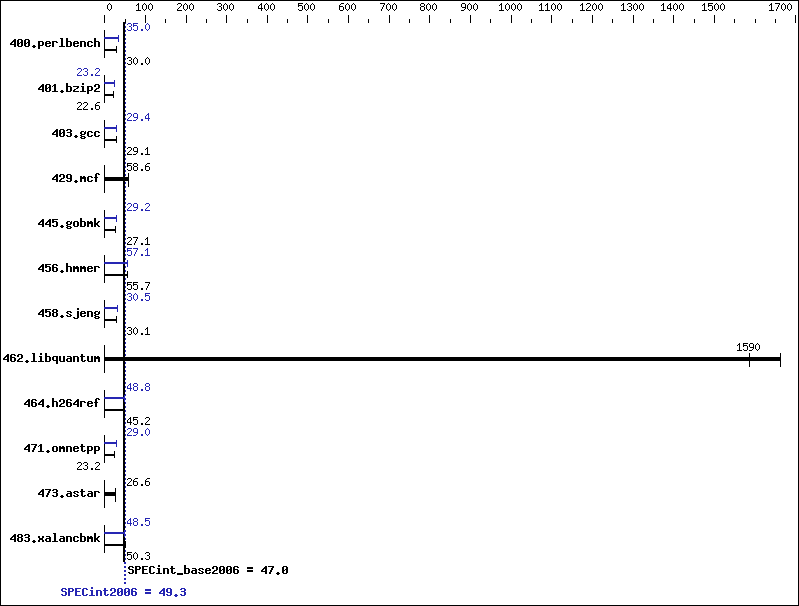

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 326 | 30.0 | 325 | 30.0 | 325 | 30.0 | 280 | 34.9 | 279 | 35.0 | 279 | 35.0 |
| 401.bzip2 | 427 | 22.6 | 427 | 22.6 | 427 | 22.6 | 415 | 23.2 | 415 | 23.2 | 415 | 23.2 |
| 403.gcc | 277 | 29.1 | 277 | 29.1 | 277 | 29.0 | 273 | 29.4 | 274 | 29.4 | 274 | 29.4 |
| 429.mcf | 156 | 58.6 | 155 | 58.8 | 156 | 58.6 | 156 | 58.6 | 155 | 58.8 | 156 | 58.6 |
| 445.gobmk | 386 | 27.2 | 394 | 26.7 | 388 | 27.1 | 360 | 29.1 | 360 | 29.2 | 360 | 29.2 |
| 456.hmmer | 167 | 55.7 | 167 | 55.7 | 167 | 55.7 | 163 | 57.1 | 163 | 57.1 | 163 | 57.1 |
| 458.sjeng | 403 | 30.1 | 403 | 30.1 | 402 | 30.1 | 396 | 30.5 | 396 | 30.5 | 396 | 30.5 |
| 462.libquantum | 13.1 | 1590 | 12.5 | 1660 | 13.1 | 1590 | 13.1 | 1590 | 12.5 | 1660 | 13.1 | 1590 |
| 464.h264ref | 489 | 45.3 | 489 | 45.2 | 490 | 45.2 | 454 | 48.8 | 454 | 48.8 | 454 | 48.8 |
| 471.omnetpp | 270 | 23.2 | 269 | 23.3 | 269 | 23.2 | 215 | 29.0 | 215 | 29.0 | 215 | 29.1 |
| 473.astar | 264 | 26.6 | 264 | 26.6 | 264 | 26.6 | 264 | 26.6 | 264 | 26.6 | 264 | 26.6 |
| 483.xalancbmk | 137 | 50.3 | 137 | 50.5 | 137 | 50.2 | 142 | 48.5 | 142 | 48.5 | 143 | 48.4 |
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/scratch/cma/cpu2006-1.1/smartheap:/scratch/cma/cpu2006-1.1/ic12.1-libs/ia32/:/scratch/cma/cpu2006-1.1/ic12.1-libs/intel64" OMP_NUM_THREADS = "8" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 with binutils-2.17.50.0.6-14.el5 Stack size set to unlimited using "ulimit -s unlimited"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
