| CPU2006 license: | 13 | Test date: | Oct-2011 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Nov-2011 |
| Tested by: | Intel Corporation | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | AMD FX-8150 |
| CPU Characteristics: | AMD Turbo CORE technology up to 4.20 GHz |
| CPU MHz: | 3600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 1 chip, 8 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 256 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 2 MB shared / 2 cores |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx4 PC3-10600U-9) |
| Disk Subsystem: | Intel 160GB SSD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 7 Ultimate SP1 (64-bit) |
| Compiler: | C/C++: Version 12.0.3.176 of Intel C++ Studio XE for Windows; Fortran: Version 12.0.3.176 of Intel Visual Fortran Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap Library Version 9.01 from http://www.microquill.com/ |

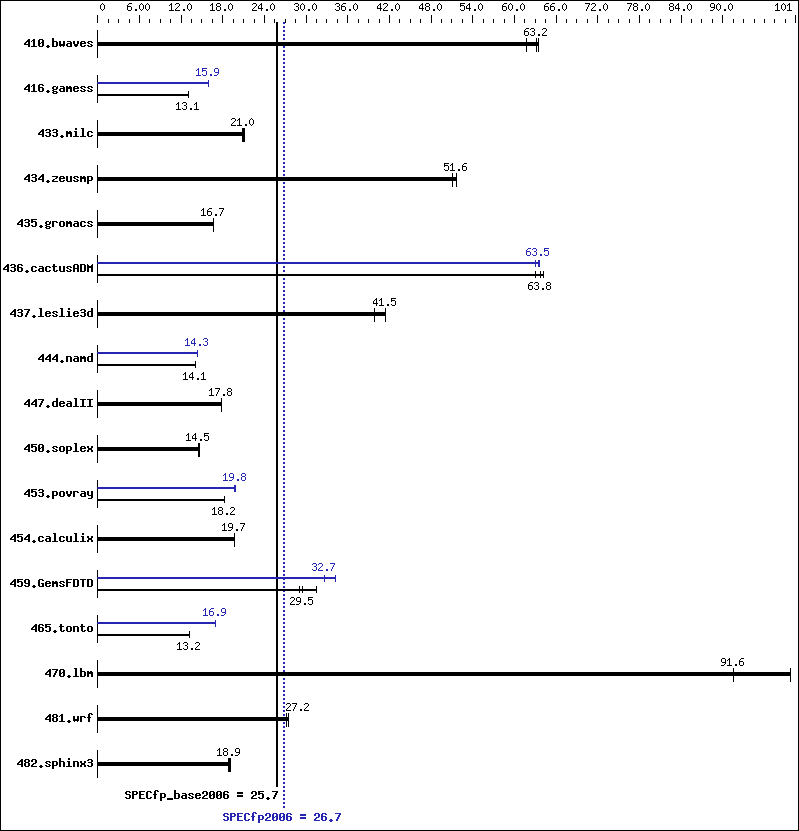

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 215 | 63.2 | 220 | 61.8 | 214 | 63.4 | 215 | 63.2 | 220 | 61.8 | 214 | 63.4 |
| 416.gamess | 1493 | 13.1 | 1493 | 13.1 | 1492 | 13.1 | 1234 | 15.9 | 1234 | 15.9 | 1233 | 15.9 |
| 433.milc | 440 | 20.9 | 436 | 21.1 | 437 | 21.0 | 440 | 20.9 | 436 | 21.1 | 437 | 21.0 |
| 434.zeusmp | 176 | 51.6 | 178 | 51.1 | 176 | 51.7 | 176 | 51.6 | 178 | 51.1 | 176 | 51.7 |
| 435.gromacs | 429 | 16.7 | 429 | 16.7 | 428 | 16.7 | 429 | 16.7 | 429 | 16.7 | 428 | 16.7 |
| 436.cactusADM | 187 | 63.8 | 190 | 63.0 | 186 | 64.2 | 188 | 63.6 | 190 | 63.1 | 188 | 63.5 |
| 437.leslie3d | 226 | 41.5 | 235 | 39.9 | 226 | 41.5 | 226 | 41.5 | 235 | 39.9 | 226 | 41.5 |
| 444.namd | 568 | 14.1 | 568 | 14.1 | 568 | 14.1 | 562 | 14.3 | 562 | 14.3 | 562 | 14.3 |
| 447.dealII | 643 | 17.8 | 643 | 17.8 | 643 | 17.8 | 643 | 17.8 | 643 | 17.8 | 643 | 17.8 |
| 450.soplex | 573 | 14.6 | 576 | 14.5 | 576 | 14.5 | 573 | 14.6 | 576 | 14.5 | 576 | 14.5 |
| 453.povray | 293 | 18.2 | 293 | 18.2 | 293 | 18.2 | 269 | 19.7 | 268 | 19.8 | 269 | 19.8 |
| 454.calculix | 419 | 19.7 | 419 | 19.7 | 419 | 19.7 | 419 | 19.7 | 419 | 19.7 | 419 | 19.7 |
| 459.GemsFDTD | 360 | 29.5 | 337 | 31.5 | 365 | 29.0 | 325 | 32.7 | 324 | 32.7 | 310 | 34.2 |
| 465.tonto | 743 | 13.2 | 745 | 13.2 | 744 | 13.2 | 582 | 16.9 | 582 | 16.9 | 582 | 16.9 |
| 470.lbm | 150 | 91.5 | 138 | 99.7 | 150 | 91.6 | 150 | 91.5 | 138 | 99.7 | 150 | 91.6 |
| 481.wrf | 410 | 27.2 | 406 | 27.5 | 410 | 27.2 | 410 | 27.2 | 406 | 27.5 | 410 | 27.2 |
| 482.sphinx3 | 1022 | 19.1 | 1030 | 18.9 | 1037 | 18.8 | 1022 | 19.1 | 1030 | 18.9 | 1037 | 18.8 |
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply System was configured with an ATI HD 6990 discrete graphics card
General Notes
OMP_NUM_THREADS set to number of processors cores KMP_AFFINITY set to granularity=fine,scatter
Base Compiler Invocation
C benchmarks:
| icl -Qvc9 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc9 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc9 -Qstd=c99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 -names:lowercase |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -DSPEC_CPU_P64 |
| 436.cactusADM: | -DSPEC_CPU_P64 -names:lowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -DSPEC_CPU_P64 -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -names:lowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| /arch:SSE3 -Qipo -O3 -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
C++ benchmarks:
| /arch:SSE3 -Qipo -O3 -Qparallel -Qansi-alias -Qopt-prefetch -Qcxx-features -Qauto-ilp32 -Qprec-div- /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| /arch:SSE3 -Qipo -O3 -Qparallel -Qansi-alias -Qopt-prefetch /F1000000000 |
Benchmarks using both Fortran and C:
| /arch:SSE3 -Qipo -O3 -Qparallel -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc9 -Qstd=c99 |
C++ benchmarks:
| icl -Qvc9 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc9 -Qstd=c99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | basepeak = yes |
C++ benchmarks:
| 444.namd: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Oa -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qansi-alias -Qauto-ilp32 /F1000000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qopt-prefetch -Qparallel /F1000000000 |
| 465.tonto: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 -Qauto -Qinline-calloc /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | /arch:SSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qunroll2 -Qauto-ilp32 /F1000000000 |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
