| CPU2006 license: | 35 | Test date: | Dec-2011 |
|---|---|---|---|
| Test sponsor: | HITACHI | Hardware Availability: | Feb-2012 |
| Tested by: | HITACHI | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-2120T |
| CPU Characteristics: | |
| CPU MHz: | 2600 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 250 GB SATA2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

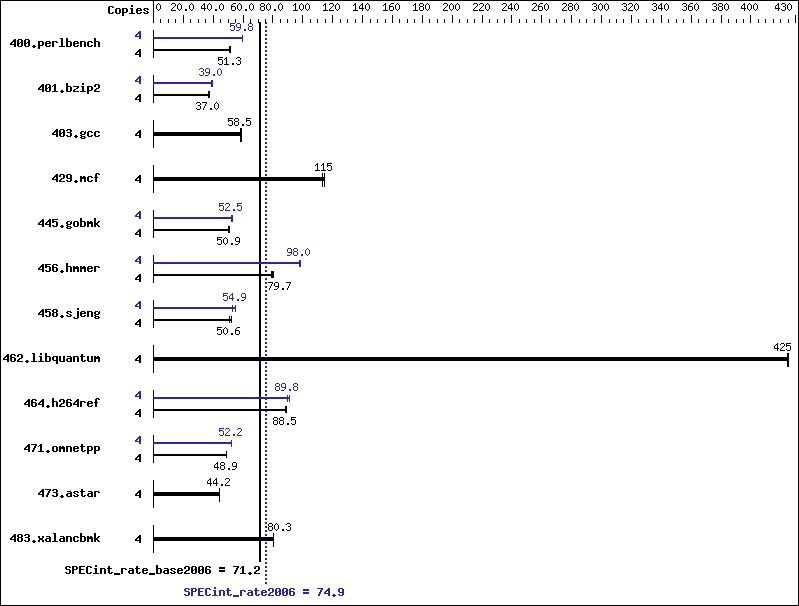

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 762 | 51.3 | 764 | 51.1 | 761 | 51.3 | 4 | 654 | 59.8 | 653 | 59.8 | 654 | 59.8 |
| 401.bzip2 | 4 | 1037 | 37.2 | 1043 | 37.0 | 1043 | 37.0 | 4 | 984 | 39.2 | 991 | 39.0 | 990 | 39.0 |
| 403.gcc | 4 | 554 | 58.1 | 544 | 59.2 | 550 | 58.5 | 4 | 554 | 58.1 | 544 | 59.2 | 550 | 58.5 |
| 429.mcf | 4 | 322 | 113 | 319 | 115 | 318 | 115 | 4 | 322 | 113 | 319 | 115 | 318 | 115 |
| 445.gobmk | 4 | 834 | 50.3 | 819 | 51.2 | 824 | 50.9 | 4 | 804 | 52.2 | 800 | 52.5 | 790 | 53.1 |
| 456.hmmer | 4 | 464 | 80.4 | 468 | 79.7 | 473 | 78.8 | 4 | 382 | 97.7 | 380 | 98.2 | 381 | 98.0 |
| 458.sjeng | 4 | 956 | 50.6 | 956 | 50.6 | 932 | 52.0 | 4 | 912 | 53.1 | 882 | 54.9 | 882 | 54.9 |
| 462.libquantum | 4 | 195 | 425 | 195 | 424 | 195 | 425 | 4 | 195 | 425 | 195 | 424 | 195 | 425 |
| 464.h264ref | 4 | 992 | 89.2 | 1005 | 88.0 | 1000 | 88.5 | 4 | 985 | 89.8 | 975 | 90.8 | 988 | 89.6 |
| 471.omnetpp | 4 | 511 | 48.9 | 509 | 49.1 | 512 | 48.9 | 4 | 479 | 52.2 | 477 | 52.4 | 482 | 51.9 |
| 473.astar | 4 | 636 | 44.1 | 635 | 44.2 | 634 | 44.3 | 4 | 636 | 44.1 | 635 | 44.2 | 634 | 44.3 |
| 483.xalancbmk | 4 | 345 | 80.1 | 343 | 80.4 | 344 | 80.3 | 4 | 345 | 80.1 | 343 | 80.4 | 344 | 80.3 |
Submit Notes
The taskset mechanism was used to bind copies to processors. The config file option 'submit' was used to generate taskset commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
