| CPU2006 license: | 35 | Test date: | Dec-2011 |
|---|---|---|---|
| Test sponsor: | HITACHI | Hardware Availability: | Feb-2012 |
| Tested by: | HITACHI | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1220L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.40 GHz |
| CPU MHz: | 2200 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 250 GB SATA2, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

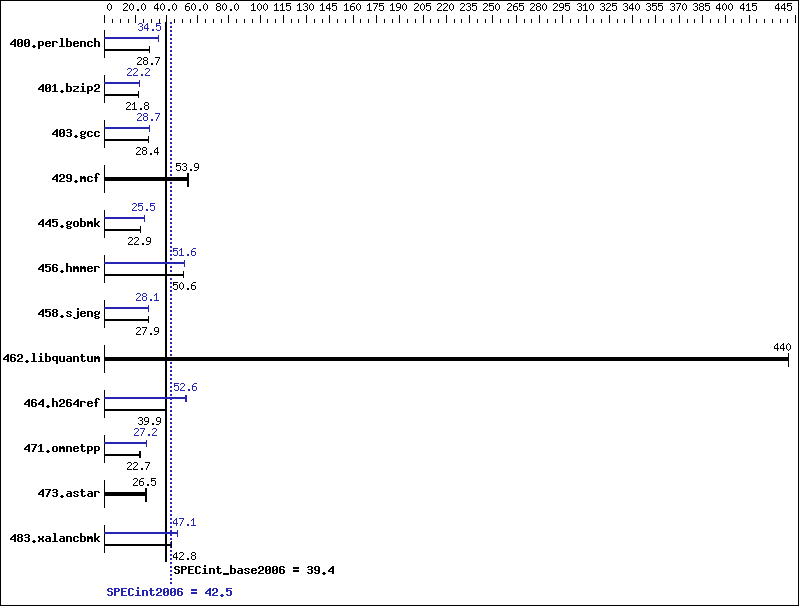

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 342 | 28.6 | 340 | 28.7 | 340 | 28.7 | 283 | 34.5 | 283 | 34.5 | 284 | 34.4 |
| 401.bzip2 | 444 | 21.7 | 443 | 21.8 | 444 | 21.8 | 435 | 22.2 | 435 | 22.2 | 434 | 22.2 |
| 403.gcc | 283 | 28.4 | 283 | 28.4 | 284 | 28.4 | 280 | 28.7 | 280 | 28.7 | 281 | 28.7 |
| 429.mcf | 169 | 53.9 | 169 | 53.9 | 170 | 53.5 | 169 | 53.9 | 169 | 53.9 | 170 | 53.5 |
| 445.gobmk | 458 | 22.9 | 458 | 22.9 | 458 | 22.9 | 411 | 25.5 | 411 | 25.5 | 411 | 25.5 |
| 456.hmmer | 184 | 50.6 | 184 | 50.6 | 183 | 50.8 | 181 | 51.6 | 181 | 51.6 | 181 | 51.6 |
| 458.sjeng | 433 | 27.9 | 433 | 27.9 | 433 | 27.9 | 431 | 28.1 | 431 | 28.1 | 431 | 28.1 |
| 462.libquantum | 47.0 | 440 | 47.0 | 440 | 47.0 | 440 | 47.0 | 440 | 47.0 | 440 | 47.0 | 440 |
| 464.h264ref | 555 | 39.9 | 554 | 39.9 | 557 | 39.7 | 420 | 52.7 | 421 | 52.6 | 427 | 51.8 |
| 471.omnetpp | 275 | 22.7 | 276 | 22.7 | 276 | 22.7 | 230 | 27.2 | 230 | 27.1 | 230 | 27.2 |
| 473.astar | 264 | 26.6 | 264 | 26.5 | 265 | 26.5 | 264 | 26.6 | 264 | 26.5 | 265 | 26.5 |
| 483.xalancbmk | 161 | 42.8 | 161 | 42.7 | 161 | 42.8 | 146 | 47.1 | 147 | 47.1 | 147 | 47.0 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" OMP_NUM_THREADS = "2" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
