SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer AW2000h-AW175h F1 (AMD Opteron 6212)

CPU2006 license: 97 Test date: Dec-2011
Test sponsor: Acer Incorporated Hardware Availability: Nov-2011
Tested by: Acer Incorporated Software Availability: Jul-2011

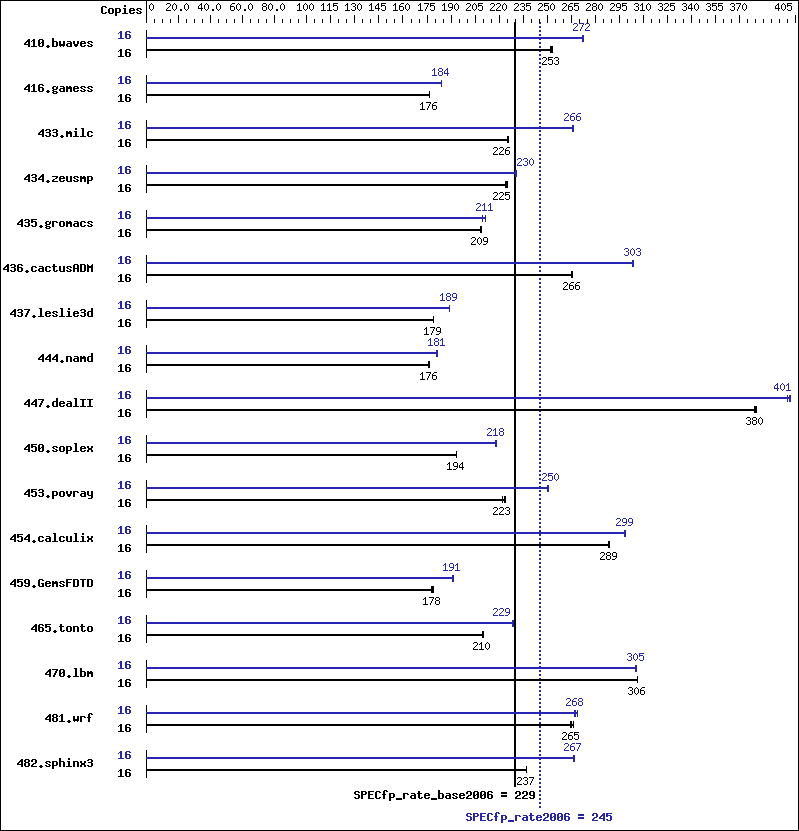

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6212
CPU Characteristics: AMD Turbo CORE technology up to 3.20 GHz
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 256 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 4 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 1000 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++/Fortran: Version 4.2.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 862 252 858 253 861 253 16 799 272 799 272 798 273
416.gamess 16 1777 176 1776 176 1776 176 16 1704 184 1703 184 1704 184
433.milc 16 651 226 652 225 650 226 16 552 266 552 266 553 266
434.zeusmp 16 648 225 647 225 649 224 16 633 230 633 230 631 231
435.gromacs 16 546 209 549 208 548 209 16 540 212 541 211 544 210
436.cactusADM 16 720 265 720 266 719 266 16 630 303 630 304 630 303
437.leslie3d 16 840 179 841 179 841 179 16 797 189 796 189 797 189
444.namd 16 729 176 727 177 728 176 16 707 181 706 182 708 181
447.dealII 16 483 379 481 380 482 380 16 456 402 457 401 457 400
450.soplex 16 689 194 689 194 690 193 16 612 218 613 218 612 218
453.povray 16 381 223 380 224 383 222 16 340 250 340 250 339 251
454.calculix 16 457 289 457 289 458 288 16 443 298 441 299 442 299
459.GemsFDTD 16 949 179 952 178 953 178 16 886 192 890 191 888 191
465.tonto 16 750 210 750 210 752 209 16 689 229 689 228 688 229
470.lbm 16 717 306 718 306 718 306 16 719 306 720 305 721 305
481.wrf 16 676 264 671 266 674 265 16 665 269 668 268 670 267
482.sphinx3 16 1317 237 1316 237 1317 237 16 1169 267 1167 267 1171 266

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf

Set vm/nr_hugepages=14336 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

 BIOS Settings:
 PowerNow = Disabled
 Fan Speed Control Modes = Full Speed

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1104-rate-libs-revB/32:/usr/cpu2006/amd1104-rate-libs-revB/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6282SE chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso

C++ benchmarks:

 -march=bdver1   -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET

Fortran benchmarks:

 -march=bdver1   -Ofast   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso

Benchmarks using both Fortran and C:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=bdver1   -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso
470.lbm:  -march=bdver1   -Ofast   -CG:cmp_peep=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -HP:bdt=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso
482.sphinx3:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:local_sched_alg=2   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso

C++ benchmarks:

444.namd:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=bdver1   -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=0   -LNO:simd=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off
450.soplex:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m   -WOPT:sib=on
453.povray:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on
434.zeusmp:  -march=bdver1   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=bdver1   -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso
459.GemsFDTD:  -march=bdver1   -Ofast   -OPT:unroll_size=0   -LNO:fission=2   -CG:load_exe=0   -CG:local_sched_alg=2   -HP
465.tonto:  -march=bdver1   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

435.gromacs:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -WOPT:sib=on
454.calculix:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=bdver1   -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -CG:load_exe=1   -HP   -WOPT:sib=on

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.html,
http://www.spec.org/cpu2006/flags/acer-amd-platform-rate-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.xml,
http://www.spec.org/cpu2006/flags/acer-amd-platform-rate-revB.xml.
