SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Cisco Systems

Cisco UCS C460 M2 (Intel Xeon E7-4807, 1.87 GHz)

CPU2006 license: 9019 Test date: Jan-2012
Test sponsor: Cisco Systems Hardware Availability: May-2011
Tested by: Cisco Systems Software Availability: Oct-2011

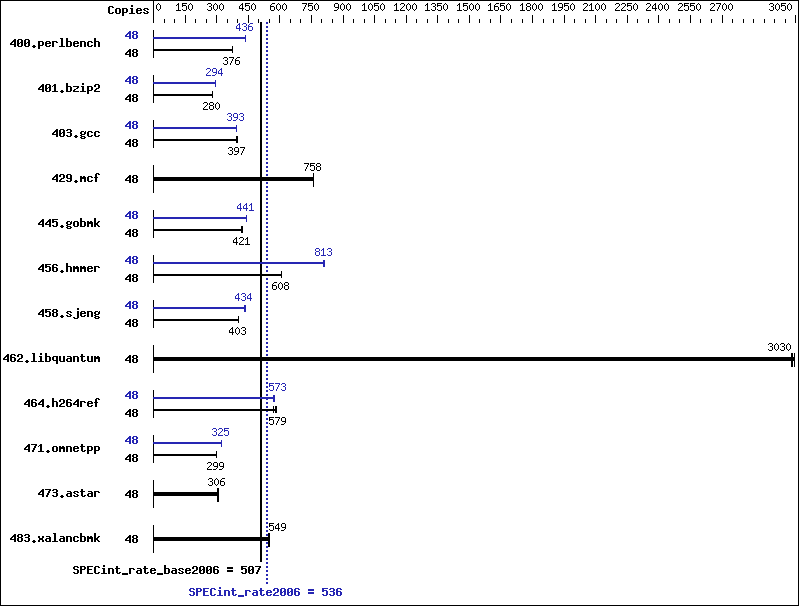

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7-4807
CPU Characteristics:
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 24 cores, 4 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 18 MB I+D on chip per chip
Other Cache: None
Memory: 1 TB (64 x 16 GB 4Rx4 PC3-8500R-9, ECC, running
at 800 MHz)
Disk Subsystem: 600 GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1
(Santiago)
2.6.32-131.0.15.el6.x86_64
Compiler: C/C++: Version 12.1.0.225 of Intel C++ Studio XE
for Linux
Auto Parallel: No
File System: ext4
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V9.01

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 48 1248 376 1246 376 1253 374 48 1076 436 1072 437 1075 436
401.bzip2 48 1652 280 1650 281 1658 279 48 1574 294 1575 294 1582 293
403.gcc 48 979 395 973 397 974 397 48 977 395 983 393 983 393
429.mcf 48 578 758 577 759 578 758 48 578 758 577 759 578 758
445.gobmk 48 1198 420 1197 421 1187 424 48 1141 441 1139 442 1141 441
456.hmmer 48 738 607 736 608 736 608 48 551 813 553 809 550 814
458.sjeng 48 1443 403 1442 403 1444 402 48 1338 434 1339 434 1337 435
462.libquantum 48 328 3030 327 3040 328 3030 48 328 3030 327 3040 328 3030
464.h264ref 48 1816 585 1835 579 1869 568 48 1845 576 1852 573 1866 569
471.omnetpp 48 1004 299 1004 299 1005 299 48 925 324 924 325 923 325
473.astar 48 1104 305 1098 307 1102 306 48 1104 305 1098 307 1102 306
483.xalancbmk 48 603 549 604 548 602 550 48 603 549 604 548 602 550

Submit Notes

 The numactl mechanism was used to bind copies to processors. The config file option 'submit'
 was used to generate numactl commands to bind each copy to a specific processor.
 For details, please see the config file.

Operating System Notes

 Stack size set to unlimited using "ulimit -s unlimited"

Platform Notes

 Sysinfo program /opt/cpu2006/config/sysinfo.rev6800
 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3
 running on localhost.localdomain Sun Dec 23 21:17:41 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) CPU E7- 4807 @ 1.87GHz
       4 "physical id"s (chips)
       48 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 6
       siblings  : 12
       physical 0: cores 0 8 9 16 17 25
       physical 1: cores 0 1 2 18 24 25
       physical 2: cores 0 1 2 18 24 25
       physical 3: cores 0 1 2 18 24 25
    cache size : 18432 KB

 From /proc/meminfo
    MemTotal:       1058713416 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Red Hat Enterprise Linux Server release 6.1 (Santiago)

 From /etc/*release* /etc/*version*
    redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago)
    system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server

 uname -a:
    Linux localhost.localdomain 2.6.32-131.0.15.el6.x86_64 #1 SMP Tue May 10
    15:42:40 EDT 2011 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Dec 23 21:14

 SPEC is set to: /opt/cpu2006
    Filesystem    Type    Size  Used Avail Use% Mounted on
    /dev/sda1     ext4    550G   60G  462G  12% /

 Additional information from dmidecode:

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/opt/cpu2006/libs/32:/opt/cpu2006/libs/64"

 Binaries compiled on a system with 1x Core i7-860 CPU + 8GB
 memory using RHEL5.5
 Transparent Huge Pages enabled with:
 echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
 Filesystem page cache cleared with:
 echo 1>       /proc/sys/vm/drop_caches
 runspec command invoked through numactl i.e.:
 numactl --interleave=all runspec <etc>

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -opt-mem-layout-trans=3   -Wl,-z,muldefs   -L/smartheap -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
400.perlbench:  icc -m64
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks:

 icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -auto-ilp32
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32   -ansi-alias
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div
429.mcf:  basepeak = yes
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -ansi-alias   -opt-mem-layout-trans=3
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -unroll2   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/smartheap -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.html,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-linux64.20111122.xml,
http://www.spec.org/cpu2006/flags/Cisco-Platform-Settings-V1.2.xml.
