SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Supermicro A+ Server 2022TG-HTRF
(H8DGT-HF, AMD Opteron 6234)

CPU2006 license: 001176 Test date: Feb-2012
Test sponsor: Supermicro Hardware Availability: Nov-2011
Tested by: Supermicro Software Availability: Dec-2011

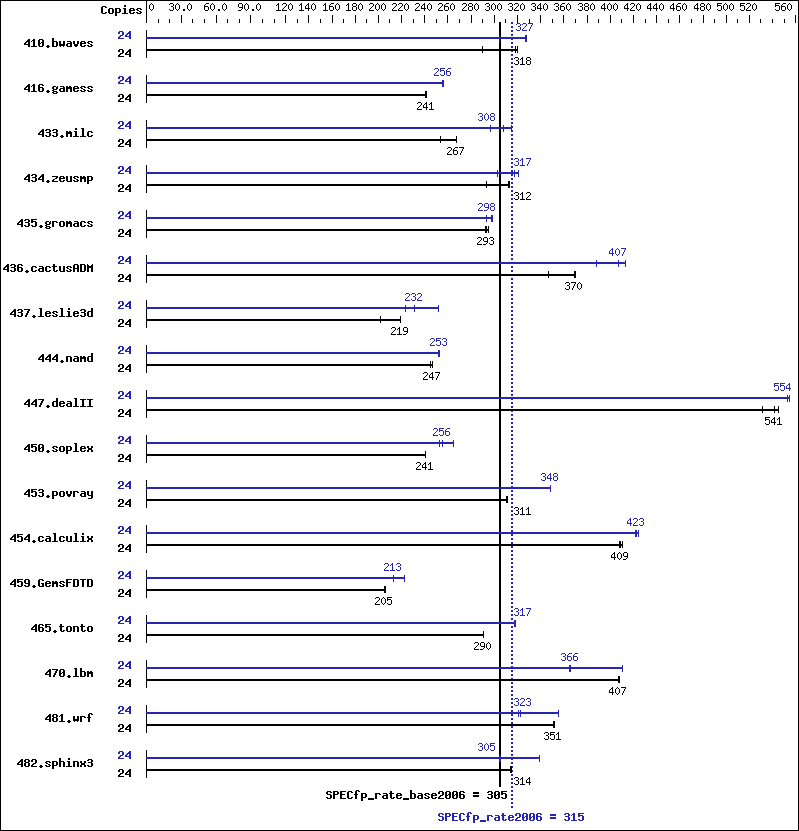

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6234
CPU Characteristics: AMD Turbo CORE technology up to 3.00 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 384 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 6 cores
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 1024 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.2,
Kernel 2.6.32-220.el6.x86_64
Compiler: C/C++/Fortran: Version 4.2.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 1126 290 1025 318 1021 320 24 998 327 994 328 1070 305
416.gamess 24 1949 241 1949 241 1948 241 24 1840 255 1836 256 1835 256
433.milc 24 870 253 824 267 824 267 24 699 315 716 308 743 296
434.zeusmp 24 745 293 698 313 699 312 24 682 320 688 317 722 303
435.gromacs 24 581 295 586 292 585 293 24 574 298 576 298 584 293
436.cactusADM 24 828 346 776 370 775 370 24 694 413 704 407 738 389
437.leslie3d 24 1120 201 1028 219 1028 219 24 895 252 974 232 1010 223
444.namd 24 785 245 780 247 779 247 24 762 253 762 253 764 252
447.dealII 24 504 545 516 532 507 541 24 495 554 495 555 496 553
450.soplex 24 833 240 831 241 832 241 24 756 265 783 256 791 253
453.povray 24 410 311 411 311 410 312 24 366 348 366 349 367 348
454.calculix 24 485 408 482 411 484 409 24 470 422 467 424 468 423
459.GemsFDTD 24 1237 206 1240 205 1242 205 24 1146 222 1194 213 1197 213
465.tonto 24 813 291 813 290 813 290 24 744 317 745 317 743 318
470.lbm 24 808 408 809 407 810 407 24 804 410 901 366 905 365
481.wrf 24 763 351 764 351 762 352 24 754 356 835 321 831 323
482.sphinx3 24 1488 314 1488 314 1489 314 24 1380 339 1532 305 1536 305

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot paramenter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf

Set vm/nr_hugepages=21504 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1104-rate-libs-revB/32:/usr/cpu2006/amd1104-rate-libs-revB/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6282SE chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso

C++ benchmarks:

 -march=bdver1   -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET

Fortran benchmarks:

 -march=bdver1   -Ofast   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso

Benchmarks using both Fortran and C:

 -march=bdver1   -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -LNO:blocking=off   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -march=bdver1   -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso
470.lbm:  -march=bdver1   -Ofast   -CG:cmp_peep=on   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -HP:bdt=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso
482.sphinx3:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:local_sched_alg=2   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso

C++ benchmarks:

444.namd:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:ignore_feedback=off   -CG:local_sched_alg=2   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m
447.dealII:  -march=bdver1   -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=0   -LNO:simd=0   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off
450.soplex:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -m32   -HP:bdt=2m:heap=2m   -WOPT:sib=on
453.povray:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on
416.gamess:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=0   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on
434.zeusmp:  -march=bdver1   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -HP:bdt=2m:heap=2m
437.leslie3d:  -march=bdver1   -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso
459.GemsFDTD:  -march=bdver1   -Ofast   -OPT:unroll_size=0   -LNO:fission=2   -CG:load_exe=0   -CG:local_sched_alg=2   -HP
465.tonto:  -march=bdver1   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP:bdt=2m:heap=2m

Benchmarks using both Fortran and C:

435.gromacs:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -WOPT:sib=on
454.calculix:  -march=bdver1   -Ofast   -OPT:unroll_size=256   -GRA:optimize_boundary=on   -HP:bdt=2m:heap=2m
481.wrf:  -march=bdver1   -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -CG:load_exe=1   -HP   -WOPT:sib=on

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd-platform-rate-revB.20120103.html,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/amd-platform-rate-revB.20120103.xml,
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-rate-revB.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 07:55:37 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 30 April 2012.
