| CPU2006 license: | 19 | Test date: | Mar-2012 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Mar-2012 |
| Tested by: | Fujitsu | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-1607 |
| CPU Characteristics: | |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB 2Rx8 PC3-12800E-11, ECC, running at 1067 MHz and CL8) |
| Disk Subsystem: | 1 x SATA III, 500 GB, 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2, 2.6.32-220.0.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.3.293 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi - user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap 10 (Multi-Core) |

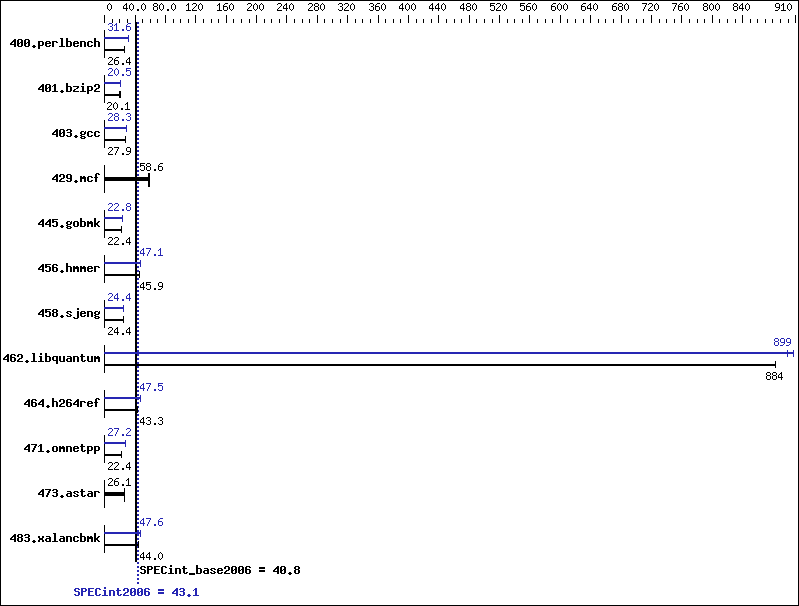

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 368 | 26.5 | 370 | 26.4 | 371 | 26.4 | 309 | 31.6 | 309 | 31.6 | 309 | 31.6 |
| 401.bzip2 | 480 | 20.1 | 481 | 20.1 | 482 | 20.0 | 472 | 20.5 | 470 | 20.5 | 470 | 20.5 |
| 403.gcc | 289 | 27.9 | 289 | 27.9 | 289 | 27.9 | 285 | 28.2 | 284 | 28.3 | 284 | 28.3 |
| 429.mcf | 156 | 58.6 | 157 | 58.0 | 154 | 59.1 | 156 | 58.6 | 157 | 58.0 | 154 | 59.1 |
| 445.gobmk | 468 | 22.4 | 468 | 22.4 | 468 | 22.4 | 461 | 22.8 | 461 | 22.8 | 461 | 22.8 |
| 456.hmmer | 203 | 45.9 | 203 | 45.9 | 204 | 45.8 | 198 | 47.1 | 198 | 47.1 | 198 | 47.1 |
| 458.sjeng | 496 | 24.4 | 497 | 24.4 | 496 | 24.4 | 497 | 24.4 | 497 | 24.3 | 497 | 24.4 |
| 462.libquantum | 23.4 | 884 | 23.4 | 884 | 23.4 | 884 | 22.8 | 907 | 23.0 | 899 | 23.0 | 899 |
| 464.h264ref | 511 | 43.3 | 510 | 43.4 | 511 | 43.3 | 474 | 46.7 | 465 | 47.5 | 465 | 47.5 |
| 471.omnetpp | 279 | 22.4 | 279 | 22.4 | 278 | 22.5 | 229 | 27.3 | 230 | 27.2 | 230 | 27.2 |
| 473.astar | 268 | 26.2 | 269 | 26.1 | 270 | 26.0 | 268 | 26.2 | 269 | 26.1 | 270 | 26.0 |
| 483.xalancbmk | 156 | 44.2 | 157 | 44.0 | 157 | 44.0 | 145 | 47.6 | 145 | 47.6 | 145 | 47.6 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS settings: Frequency Floor Override = Enabled
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/work/cpu2006/libs/32:/work/cpu2006/libs/64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 2x Xeon E5-2650 CPU + 64 GB memory using Red Hat Enterprise Linux Server release 6.2 (Santiago) The RPMs glibc-static-2.12-1.47.el6.x86_64.rpm and glibc-static-2.12-1.47.el6.i686.rpm were added to enable static linking. Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/opt/SmartHeap/lib64 -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/opt/SmartHeap/lib -lsmartheap |
