| CPU2006 license: | 001176 | Test date: | May-2012 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Mar-2012 |
| Tested by: | Supermicro | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2630L |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.50 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1333 MHz and CL9) |
| Disk Subsystem: | 1 x 600 GB SATA III, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server Release 6.2, Kernel 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

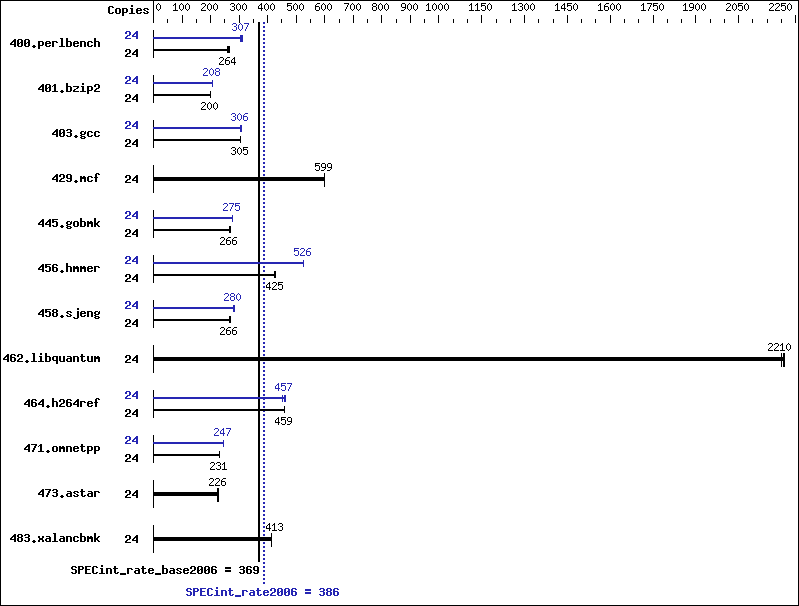

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 879 | 267 | 888 | 264 | 908 | 258 | 24 | 770 | 305 | 764 | 307 | 753 | 311 |
| 401.bzip2 | 24 | 1160 | 200 | 1157 | 200 | 1170 | 198 | 24 | 1116 | 208 | 1117 | 207 | 1115 | 208 |
| 403.gcc | 24 | 632 | 306 | 633 | 305 | 637 | 303 | 24 | 631 | 306 | 633 | 305 | 628 | 307 |
| 429.mcf | 24 | 366 | 598 | 365 | 600 | 366 | 599 | 24 | 366 | 598 | 365 | 600 | 366 | 599 |
| 445.gobmk | 24 | 946 | 266 | 928 | 271 | 945 | 266 | 24 | 914 | 275 | 915 | 275 | 911 | 276 |
| 456.hmmer | 24 | 529 | 423 | 527 | 425 | 522 | 429 | 24 | 426 | 526 | 427 | 525 | 425 | 526 |
| 458.sjeng | 24 | 1092 | 266 | 1082 | 268 | 1090 | 266 | 24 | 1022 | 284 | 1037 | 280 | 1038 | 280 |
| 462.libquantum | 24 | 226 | 2200 | 225 | 2210 | 225 | 2210 | 24 | 226 | 2200 | 225 | 2210 | 225 | 2210 |
| 464.h264ref | 24 | 1157 | 459 | 1159 | 458 | 1156 | 460 | 24 | 1171 | 454 | 1145 | 464 | 1161 | 457 |
| 471.omnetpp | 24 | 650 | 231 | 650 | 231 | 651 | 230 | 24 | 608 | 247 | 608 | 247 | 609 | 246 |
| 473.astar | 24 | 745 | 226 | 742 | 227 | 749 | 225 | 24 | 745 | 226 | 742 | 227 | 749 | 225 |
| 483.xalancbmk | 24 | 401 | 413 | 401 | 413 | 399 | 415 | 24 | 401 | 413 | 401 | 413 | 399 | 415 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/usr/cpu2006/libs/32:/usr/cpu2006/libs/64" Binaries compiled on a system with 2 x Xeon E5-2630L CPU + 64GB memory using RHEL6.2 Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
