| CPU2006 license: | 11 | Test date: | Jun-2012 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2012 |
| Tested by: | IBM Corporation | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2637 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 5 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

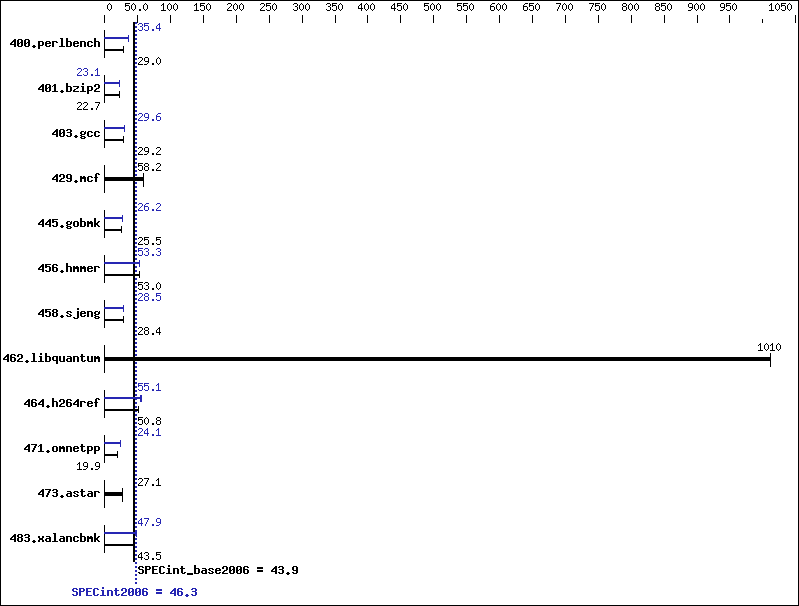

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 337 | 29.0 | 337 | 29.0 | 337 | 29.0 | 276 | 35.4 | 276 | 35.4 | 276 | 35.5 |
| 401.bzip2 | 426 | 22.7 | 426 | 22.6 | 426 | 22.7 | 418 | 23.1 | 418 | 23.1 | 419 | 23.0 |
| 403.gcc | 275 | 29.2 | 275 | 29.2 | 276 | 29.2 | 272 | 29.6 | 272 | 29.6 | 271 | 29.7 |
| 429.mcf | 157 | 58.2 | 157 | 58.2 | 156 | 58.3 | 157 | 58.2 | 157 | 58.2 | 156 | 58.3 |
| 445.gobmk | 411 | 25.5 | 411 | 25.5 | 411 | 25.5 | 400 | 26.2 | 400 | 26.2 | 400 | 26.2 |
| 456.hmmer | 176 | 53.0 | 176 | 53.0 | 176 | 52.9 | 175 | 53.3 | 176 | 53.0 | 175 | 53.3 |
| 458.sjeng | 426 | 28.4 | 426 | 28.4 | 426 | 28.4 | 425 | 28.5 | 425 | 28.5 | 425 | 28.5 |
| 462.libquantum | 20.5 | 1010 | 20.5 | 1010 | 20.5 | 1010 | 20.5 | 1010 | 20.5 | 1010 | 20.5 | 1010 |
| 464.h264ref | 435 | 50.9 | 437 | 50.7 | 435 | 50.8 | 402 | 55.1 | 402 | 55.1 | 410 | 54.0 |
| 471.omnetpp | 315 | 19.9 | 315 | 19.8 | 315 | 19.9 | 258 | 24.2 | 260 | 24.0 | 260 | 24.1 |
| 473.astar | 259 | 27.1 | 259 | 27.1 | 259 | 27.1 | 259 | 27.1 | 259 | 27.1 | 259 | 27.1 |
| 483.xalancbmk | 159 | 43.5 | 158 | 43.6 | 160 | 43.2 | 144 | 47.9 | 144 | 48.0 | 144 | 47.9 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Zone reclaim mode enabled with: echo 1 > /proc/sys/vm/zone_reclaim_mode
Platform Notes
BIOS Settings: Operating Mode set to Maximum Performance Sysinfo program /root/SPECcpu-v1.2/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c running on tianden Tue Jun 26 15:25:02 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2637 0 @ 3.00GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 2 siblings : 4 physical 0: cores 0 1 physical 1: cores 0 1 cache size : 5120 KB From /proc/meminfo MemTotal: 132096584 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux tianden 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jun 25 15:44 SPEC is set to: /root/SPECcpu-v1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_tianden-lv_root ext4 145G 61G 78G 44% / (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/root/SPECcpu-v1.2/libs/32:/root/SPECcpu-v1.2/libs/64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
