SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Server X3-2 (Intel Xeon E5-2690 2.9GHz)

CPU2006 license: 6 Test date: Mar-2012
Test sponsor: Oracle Corporation Hardware Availability: Apr-2012
Tested by: Oracle Corporation Software Availability: Jun-2012

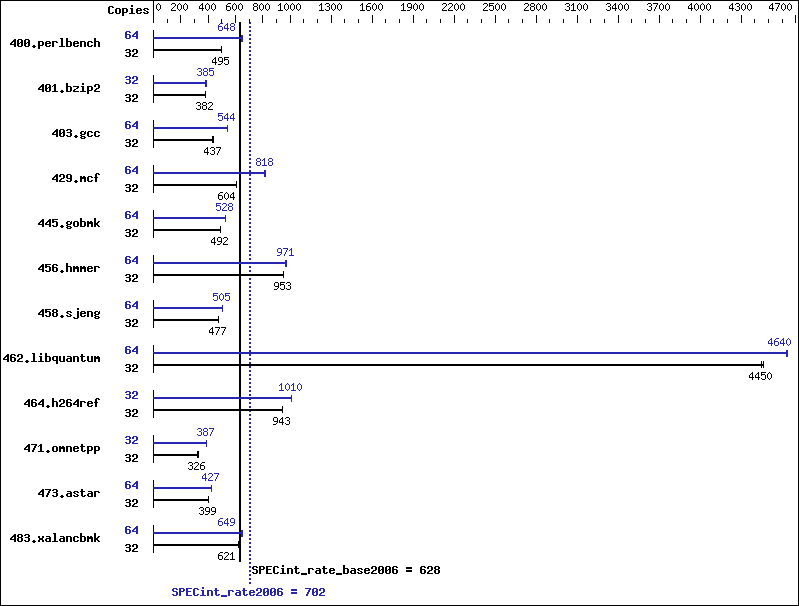

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5-2690
CPU Characteristics: Intel Turbo Boost Technology up to 3.80 GHz
CPU MHz: 2900
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 3 x 300 GB 10K RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 11 11/11 (SRU 02)
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio
(patch update 1, tested with nightly build
20120313)
Auto Parallel: No
File System: zfs (with raidz)
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V9.01

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 32 624 501 632 495 632 495 64 958 653 966 647 965 648
401.bzip2 32 807 383 810 381 809 382 32 802 385 801 385 804 384
403.gcc 32 589 437 589 437 594 433 64 949 543 947 544 946 544
429.mcf 32 483 604 481 607 483 604 64 714 818 715 816 712 820
445.gobmk 32 682 492 682 492 683 492 64 1272 528 1273 527 1273 528
456.hmmer 32 314 952 313 953 313 953 64 615 971 616 969 615 971
458.sjeng 32 811 477 810 478 811 477 64 1535 504 1534 505 1532 505
462.libquantum 32 149 4450 149 4460 149 4450 64 286 4640 286 4640 286 4640
464.h264ref 32 749 945 751 943 752 942 32 701 1010 699 1010 700 1010
471.omnetpp 32 614 326 614 326 614 326 32 517 387 517 387 517 387
473.astar 32 563 399 562 399 563 399 64 1059 424 1052 427 1053 427
483.xalancbmk 32 356 620 356 621 356 621 64 680 649 682 648 680 649

Submit Notes

 The config file option 'submit' was used to bind processes to CPU threads with pbind(1)

Operating System Notes

 ulimit -s 10000  (shell): increases stack

 /etc/system parameters
    autoup=1000
    zfs:zfs_arc_max=0x400000000
    zfs:zfs_arc_min=0x400000000
    ncsize=0x10000
    lpg_alloc_prefer=1

 gzip compression set using "zfs set compression=gzip <zfs-filesystem>"

Platform Notes

 Default BIOS Settings were used, except:
   Energy Performance set to Performance

 Oracle's Sun Server X3-2 was formerly known as the Sun Fire X4170 M3

 Single processor configuration of this system is available as of Sep-2012

 Sysinfo program /benchpool/data1/cpu2006v1.2/Docs/sysinfo
 : 6775  2011-08-16 #f7622badcf24e01c368b1db4377c
 running on bur407-122 Fri Mar 30 15:47:43 2012

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo


 From /usr/sbin/psrinfo -pv
  Intel(r) Xeon(r) CPU E5-2690 0 @ 2.90GHz
  x86 (GenuineIntel 206D7 family 6 model 45 step 7 clock 2893 MHz)

 /usr/sbin/psrinfo -p:   2 chips
 /usr/sbin/psrinfo -pv | grep "core has" | wc -l:  16 cores
 /usr/sbin/psrinfo | wc -l: 32 threads

 /usr/sbin/prtconf | grep "Memory size:": 131062 Megabytes

 /etc/release:
                              Oracle Solaris 11 11/11 X86
 uname -a:
 SunOS bur407-122 5.11 11.0 i86pc i386 i86pc

 disk: df -h
 Filesystem             Size   Used  Available Capacity  Mounted on
 benchpool/data1        545G    12G       533G     3%    /benchpool/data1

 (End of data from sysinfo program)

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "1"

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_SOLARIS   -DSPEC_CPU_LP64
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -m64   -xaddr32   -xpagesize=2M   -xalias_level=std

C++ benchmarks:

 -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -lfast

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xprefetch=no%auto   -xtarget=nehalem   -xipo=1   -m64   -xpagesize=2M   -xalias_level=std   -lbsdmalloc
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong
403.gcc:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=std   -W2,-Abuiltin_opt:calloc_no_support=on
429.mcf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize_heap=2M   -xpagesize_stack=4k   -xalias_level=std
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong
456.hmmer:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=4k   -xalias_level=strong
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std
462.libquantum:  -g   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xunroll=8
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m32   -xpagesize=2M   -xalias_level=strong

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -L/export_compress/home/gnana/cpu2006v1.2/SmartHeap_9/lib/ -R/export_compress/home/gnana/cpu2006v1.2/SmartHeap_9/lib/ -lsmartheap
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -xrestrict   -library=stlport4   -lfast
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xunroll=8   -library=stlport4   -lfast

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.html,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-x86_64.xml,
http://www.spec.org/cpu2006/flags/Oracle-platform-x86_64.CPUv1.2-RevA.20120425.xml.
