| CPU2006 license: | 3175 | Test date: | Jul-2012 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Mar-2012 |
| Tested by: | Huawei | Software Availability: | Dec-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2667 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.50 GHz |
| CPU MHz: | 2900 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 15 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 300 GB SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

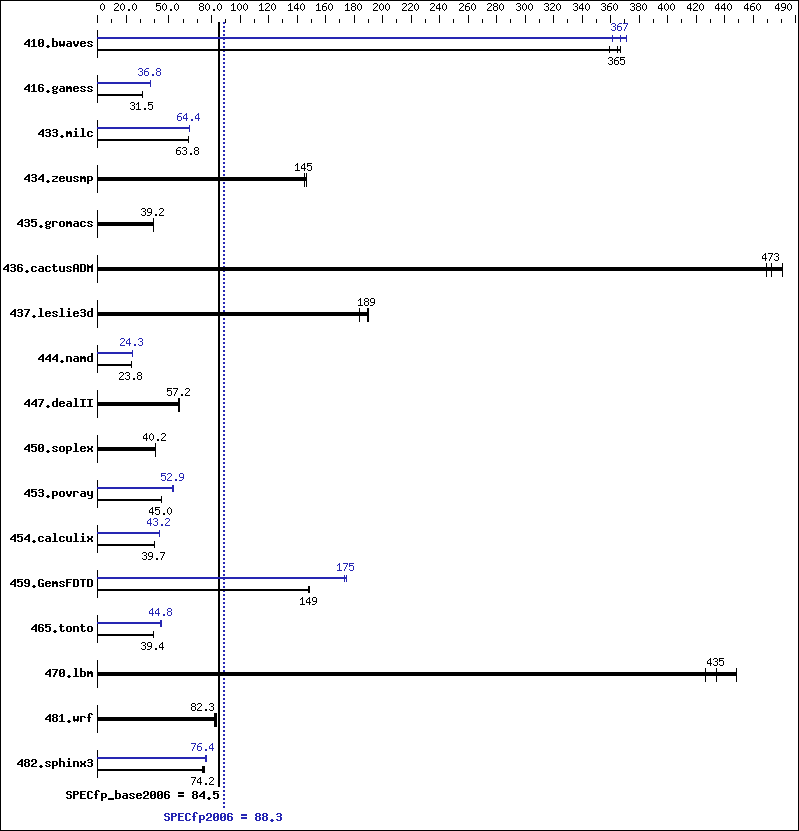

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 37.0 | 367 | 37.8 | 359 | 37.2 | 365 | 37.6 | 361 | 36.6 | 371 | 37.0 | 367 |
| 416.gamess | 622 | 31.5 | 621 | 31.5 | 620 | 31.6 | 532 | 36.8 | 531 | 36.9 | 534 | 36.7 |
| 433.milc | 144 | 63.8 | 144 | 63.7 | 144 | 63.8 | 143 | 64.3 | 143 | 64.4 | 142 | 64.6 |
| 434.zeusmp | 62.6 | 145 | 62.8 | 145 | 62.2 | 146 | 62.6 | 145 | 62.8 | 145 | 62.2 | 146 |
| 435.gromacs | 182 | 39.2 | 182 | 39.2 | 183 | 39.1 | 182 | 39.2 | 182 | 39.2 | 183 | 39.1 |
| 436.cactusADM | 24.9 | 481 | 25.3 | 473 | 25.5 | 470 | 24.9 | 481 | 25.3 | 473 | 25.5 | 470 |
| 437.leslie3d | 49.4 | 190 | 51.2 | 183 | 49.6 | 189 | 49.4 | 190 | 51.2 | 183 | 49.6 | 189 |
| 444.namd | 337 | 23.8 | 337 | 23.8 | 337 | 23.8 | 331 | 24.3 | 331 | 24.2 | 330 | 24.3 |
| 447.dealII | 200 | 57.3 | 200 | 57.2 | 201 | 56.9 | 200 | 57.3 | 200 | 57.2 | 201 | 56.9 |
| 450.soplex | 208 | 40.2 | 207 | 40.2 | 207 | 40.2 | 208 | 40.2 | 207 | 40.2 | 207 | 40.2 |
| 453.povray | 119 | 44.7 | 118 | 45.0 | 118 | 45.0 | 101 | 52.9 | 100 | 53.0 | 101 | 52.6 |
| 454.calculix | 209 | 39.5 | 208 | 39.7 | 208 | 39.7 | 191 | 43.2 | 191 | 43.1 | 191 | 43.2 |
| 459.GemsFDTD | 71.6 | 148 | 71.2 | 149 | 71.2 | 149 | 60.7 | 175 | 61.3 | 173 | 60.7 | 175 |
| 465.tonto | 249 | 39.5 | 250 | 39.4 | 250 | 39.4 | 222 | 44.3 | 220 | 44.8 | 219 | 44.8 |
| 470.lbm | 32.2 | 426 | 30.6 | 449 | 31.6 | 435 | 32.2 | 426 | 30.6 | 449 | 31.6 | 435 |
| 481.wrf | 134 | 83.2 | 136 | 82.3 | 136 | 82.1 | 134 | 83.2 | 136 | 82.3 | 136 | 82.1 |
| 482.sphinx3 | 263 | 74.2 | 261 | 74.7 | 265 | 73.6 | 255 | 76.5 | 257 | 75.9 | 255 | 76.4 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Select only test related files when installing the operating system
Platform Notes
BIOS configuration: Intel Hyper-Threading set to Disabled Set Power Efficiency Mode to Performance Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on RH62-rebuild Tue Jul 31 15:08:45 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2667 0 @ 2.90GHz 2 "physical id"s (chips) 12 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 6 physical 0: cores 0 1 2 3 4 5 physical 1: cores 0 1 2 3 4 5 cache size : 15360 KB From /proc/meminfo MemTotal: 132124032 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux RH62-rebuild 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 31 09:17 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 289G 99G 176G 36% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,0,1" LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" OMP_NUM_THREADS = "12" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
