SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 770 (4.2 GHz, 48 core)

CPU2006 license: 11 Test date: Sep-2012
Test sponsor: IBM Corporation Hardware Availability: Oct-2012
Tested by: IBM Corporation Software Availability: Nov-2012

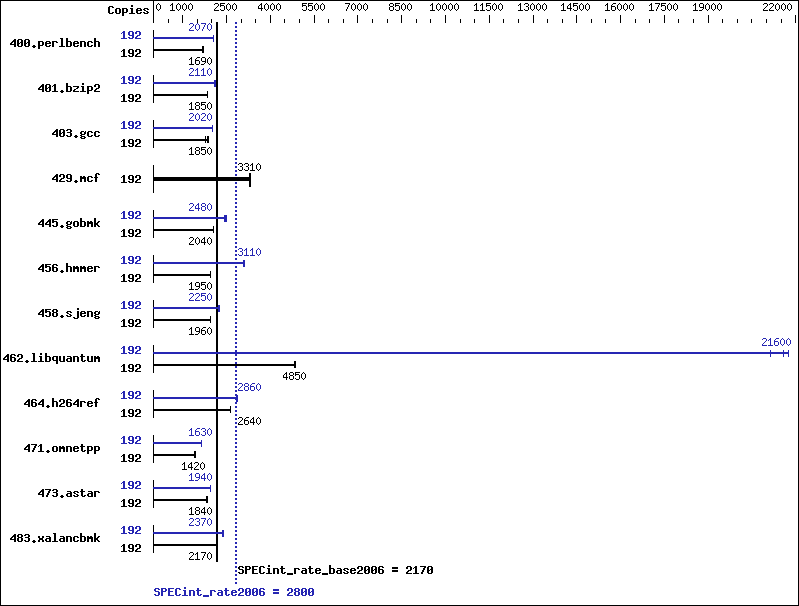

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 4.396 GHz
CPU MHz: 4228
FPU: Integrated
CPU(s) enabled: 48 cores, 16 chips, 3 cores/chip, 4 threads/core
CPU(s) orderable: 12,24,36,48 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 512 GB (64 x 8 GB) DDR3 1066 MHz
Disk Subsystem: 8 x 146.8 GB 15K RPM Raid0 SFF SAS
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: C/C++: Version 12.1 of IBM XL C/C++ for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 192 1109 1690 1106 1700 1107 1690 192 909 2060 908 2070 907 2070
401.bzip2 192 1003 1850 1006 1840 998 1860 192 876 2120 879 2110 884 2100
403.gcc 192 866 1780 827 1870 836 1850 192 763 2020 768 2010 761 2030
429.mcf 192 530 3300 528 3310 529 3310 192 530 3300 528 3310 529 3310
445.gobmk 192 987 2040 986 2040 988 2040 192 823 2450 805 2500 813 2480
456.hmmer 192 917 1950 914 1960 920 1950 192 574 3120 579 3090 576 3110
458.sjeng 192 1187 1960 1187 1960 1198 1940 192 1040 2230 1033 2250 1034 2250
462.libquantum 192 821 4840 820 4850 820 4850 192 188 21100 184 21600 183 21800
464.h264ref 192 1620 2620 1607 2640 1606 2650 192 1491 2850 1487 2860 1474 2880
471.omnetpp 192 844 1420 849 1410 847 1420 192 737 1630 734 1630 734 1630
473.astar 192 733 1840 737 1830 734 1840 192 695 1940 691 1950 693 1940
483.xalancbmk 192 609 2170 613 2160 606 2190 192 558 2370 556 2380 558 2370

Compiler Invocation Notes

C/C++ compiler updated to November 2012 PTF
      Version: 12.01.0000.0002
Fortran compiler updated to November 2012 PTF
      Version: 14.01.0000.0002

Peak Tuning Notes

 400.perlbench fdpr options: -O4 -cbpth -1 -sdp -1
 401.bzip2 fdpr options: -O4 -vrox -nobldcg -sdp -1
 403.gcc fdpr options: -O4 -cbpth -1 -sdp -1
 429.mcf fdpr options: -O2
 445.gobmk fdpr options: -O3
 456.hmmer fdpr options: -O3 -bldcg -ccc 10
 458.sjeng fdpr options: -O3
 464.h264ref fdpr options: -O4 -sdp -1 -vrox -lu -1
 473.astar fdpr options: -O3 -vrox -bldcg
 483.xalancbmk fdpr options: -O3 -bldcg -lu -1 -lux 1

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 AIX updated to V7.1 TL 2

 All ulimits set to unlimited.

 19200 16M large pages defined with vmo command

Platform Notes

 Service Processor Memory Mirroring Property Disabled

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qipa=threads   -bmaxdata:0x50000000   -qlargepage   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -qalias=noansi   -qalloca   -blpdata

C++ benchmarks:

 -qipa=threads   -bmaxdata:0x20000000   -qlargepage   -O4   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -D_ILS_MACROS   -qalias=noansi   -blpdata   -btextpsize:64K
401.bzip2:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
403.gcc:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalloca   -blpdata   -btextpsize:64K
429.mcf:  basepeak = yes
445.gobmk:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
456.hmmer:  -qipa=threads   -O5   -qsimd   -qvecnvol   -qassert=refalign   -D_ILS_MACROS   -blpdata   -btextpsize:64K
458.sjeng:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -D_ILS_MACROS   -blpdata   -btextpsize:64K
462.libquantum:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -q64   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
464.h264ref:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -blpdata   -btextpsize:64K

C++ benchmarks:

471.omnetpp:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd   -qvecnvol   -D_ILS_MACROS   -qalign=natural   -qrtti=all   -qinlglue   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
473.astar:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qinlglue   -qalign=natural   -blpdata   -btextpsize:64K
483.xalancbmk:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -D_ILS_MACROS   -qinlglue   -D__IBM_FAST_VECTOR   -blpdata   -btextpsize:64K

Peak Other Flags

C benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
400.perlbench:  -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20110613.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20110613.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20110613.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20110613.xml.
