| CPU2006 license: | 3175 | Test date: | Oct-2012 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Oct-2012 |
| Tested by: | Huawei | Software Availability: | Oct-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4830 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.40 GHz |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (64 x 8 GB 2Rx4 PC3-10600R, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x 300 GB SAS 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.2 (Santiago) 2.6.32-220.el6.x86_64 |
| Compiler: | C/C++: Version 13.0.0.079 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

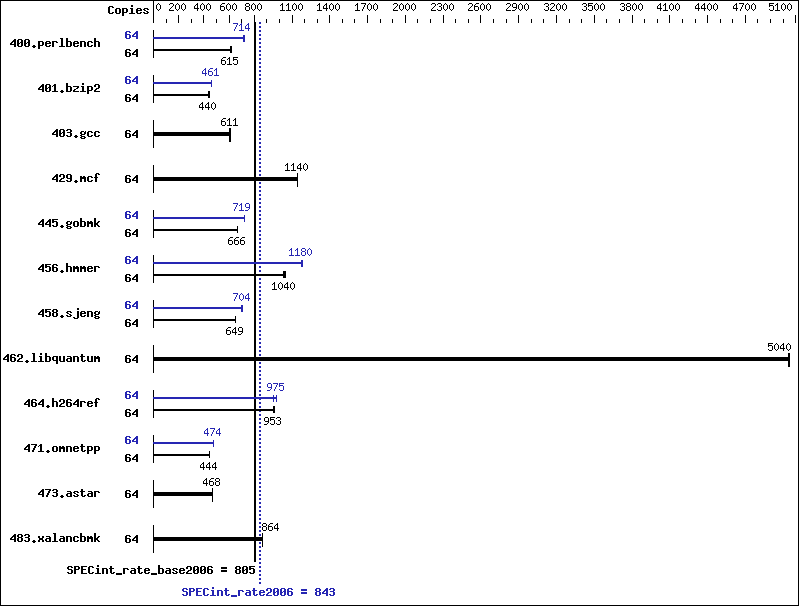

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 64 | 1021 | 612 | 1015 | 616 | 1017 | 615 | 64 | 868 | 720 | 876 | 714 | 877 | 713 |
| 401.bzip2 | 64 | 1401 | 441 | 1403 | 440 | 1403 | 440 | 64 | 1338 | 461 | 1334 | 463 | 1341 | 461 |
| 403.gcc | 64 | 844 | 611 | 844 | 611 | 849 | 607 | 64 | 844 | 611 | 844 | 611 | 849 | 607 |
| 429.mcf | 64 | 511 | 1140 | 510 | 1140 | 510 | 1150 | 64 | 511 | 1140 | 510 | 1140 | 510 | 1150 |
| 445.gobmk | 64 | 1009 | 666 | 1008 | 666 | 1011 | 664 | 64 | 933 | 719 | 934 | 719 | 934 | 719 |
| 456.hmmer | 64 | 572 | 1040 | 578 | 1030 | 572 | 1040 | 64 | 508 | 1180 | 508 | 1180 | 505 | 1180 |
| 458.sjeng | 64 | 1194 | 648 | 1194 | 649 | 1194 | 649 | 64 | 1102 | 703 | 1100 | 704 | 1098 | 705 |
| 462.libquantum | 64 | 263 | 5050 | 263 | 5040 | 263 | 5040 | 64 | 263 | 5050 | 263 | 5040 | 263 | 5040 |
| 464.h264ref | 64 | 1480 | 957 | 1487 | 952 | 1486 | 953 | 64 | 1453 | 975 | 1486 | 953 | 1452 | 976 |
| 471.omnetpp | 64 | 903 | 443 | 901 | 444 | 902 | 444 | 64 | 844 | 474 | 843 | 474 | 843 | 474 |
| 473.astar | 64 | 958 | 469 | 962 | 467 | 959 | 468 | 64 | 958 | 469 | 962 | 467 | 959 | 468 |
| 483.xalancbmk | 64 | 512 | 863 | 511 | 864 | 511 | 864 | 64 | 512 | 863 | 511 | 864 | 511 | 864 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Sysinfo program /home/cpu2006/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ 5569a0425e2ad530534e4c79a46e4d28 running on Huawei-RH5885 Thu Oct 11 18:47:35 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7- 4830 @ 2.13GHz 4 "physical id"s (chips) 64 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 8 17 18 24 25 physical 1: cores 0 1 2 8 17 18 24 25 physical 2: cores 0 1 2 8 17 18 24 25 physical 3: cores 0 1 2 8 17 18 24 25 cache size : 24576 KB From /proc/meminfo MemTotal: 529110344 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.2 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.2 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux Huawei-RH5885 2.6.32-220.el6.x86_64 #1 SMP Wed Nov 9 08:03:13 EST 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 11 18:38 SPEC is set to: /home/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_huaweirh5885-lv_home ext4 80G 6.7G 69G 9% /home Additional information from dmidecode: BIOS American Megatrends Inc. RGPUC-BIOS-V019 09/18/2012 Memory: 64x 8 GB 32x Samsung M393B1K70CH0-CH9 8 GB 1067 MHz 2 rank 32x Samsung M393B1K70DH0-YH9 8 GB 1067 MHz 2 rank (End of data from sysinfo program) Descriptions about memory generated by sysinfo are not correct, only 64 DIMMs are installed not 128, see descriptions below. Memory: 32x Samsung M393B1K70CH0-CH9 8 GB 1067 MHz 2 rank 32x Samsung M393B1K70DH0-YH9 8 GB 1067 MHz 2 rank
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/home/cpu2006/libs/32:/home/cpu2006/libs/64" Binaries compiled on a system with 4xE7-4807 CPU + 512 GB memory using RHEL6.2 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/home/cpu2006/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | basepeak = yes |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cpu2006/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
