SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer AR585 F1 (AMD Opteron 6376)

CPU2006 license: 97 Test date: Nov-2012
Test sponsor: Acer Incorporated Hardware Availability: Nov-2012
Tested by: Acer Incorporated Software Availability: Aug-2012

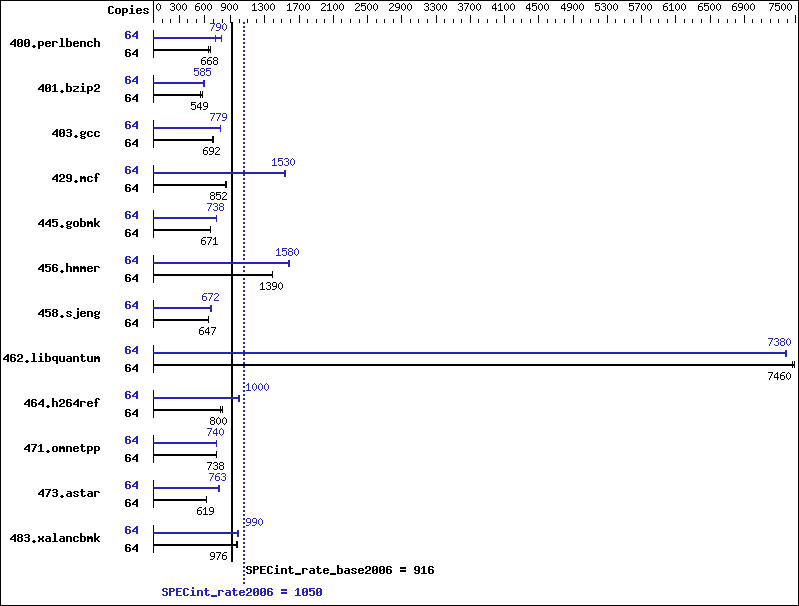

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6376
CPU Characteristics: AMD Turbo CORE technology up to 3.20 GHz
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++: Version 4.5.2 of x86 Open64 Compiler Suite
(from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 980 638 936 668 936 668 64 858 729 791 790 789 792
401.bzip2 64 1136 543 1080 572 1124 549 64 1058 584 1056 585 1036 596
403.gcc 64 744 692 751 686 735 701 64 662 779 661 779 663 777
429.mcf 64 684 853 685 852 694 842 64 381 1530 380 1540 381 1530
445.gobmk 64 1000 671 1000 671 1000 671 64 908 739 910 738 911 737
456.hmmer 64 429 1390 429 1390 430 1390 64 378 1580 380 1570 377 1580
458.sjeng 64 1195 648 1197 647 1197 647 64 1151 673 1152 672 1157 669
462.libquantum 64 178 7460 177 7490 178 7460 64 179 7390 180 7380 180 7380
464.h264ref 64 1771 800 1749 810 1809 783 64 1416 1000 1419 998 1414 1000
471.omnetpp 64 544 735 542 738 540 740 64 540 740 540 740 541 739
473.astar 64 726 619 725 620 730 615 64 589 763 587 765 589 763
483.xalancbmk 64 453 976 452 978 454 973 64 445 993 449 984 446 990

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=57344 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1206-rate-libs-revA/32:/usr/cpu2006/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=ON   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2   -march=bdver1

C++ benchmarks:

 -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -march=bdver1   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bd=2m:heap=2m   -march=bdver1   -GRA:aggr_loop_splitting=off   -GRA:loop_splitting=off
401.bzip2:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -march=bdver2
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on   -march=bdver2   -mno-fma4
429.mcf:  -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -CG:dsched=on   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bd=2m:heap=2m   -march=bdver1
456.hmmer:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m   -CG:p2align=0   -CG:load_exe=3   -CG:dsched=on   -march=bdver1
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:heap=2m:bd=2m   -WOPT:sib=on   -march=bdver1
462.libquantum:  -Ofast   -mso   -OPT:unroll_size=512   -OPT:unroll_times_max=16   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -LNO:pf2=0   -CG:local_sched_alg=1   -CG:p2align=0   -INLINE:aggressive=ON   -IPA:plimit=15000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m,limit=300   -march=bdver2
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -march=bdver1

C++ benchmarks:

471.omnetpp:  -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -WOPT:sib=on   -D__OPEN64_FAST_SET   -march=bdver2   -mno-fma4   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -CG:p2align=1   -CG:dsched=on   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -HP:bdt=2m:heap=2m   -march=bdver1
483.xalancbmk:  -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -CG:p2align=1   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -march=bdver2   -mno-fma4   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.html,
http://www.spec.org/cpu2006/flags/amd1206-acer-platform-rate-revA-I.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.xml,
http://www.spec.org/cpu2006/flags/amd1206-acer-platform-rate-revA-I.xml.
