SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190-B8228,
AMD Opteron 4386

CPU2006 license: 49 Test date: Sep-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Dec-2012
Tested by: Advanced Micro Devices Software Availability: Aug-2012

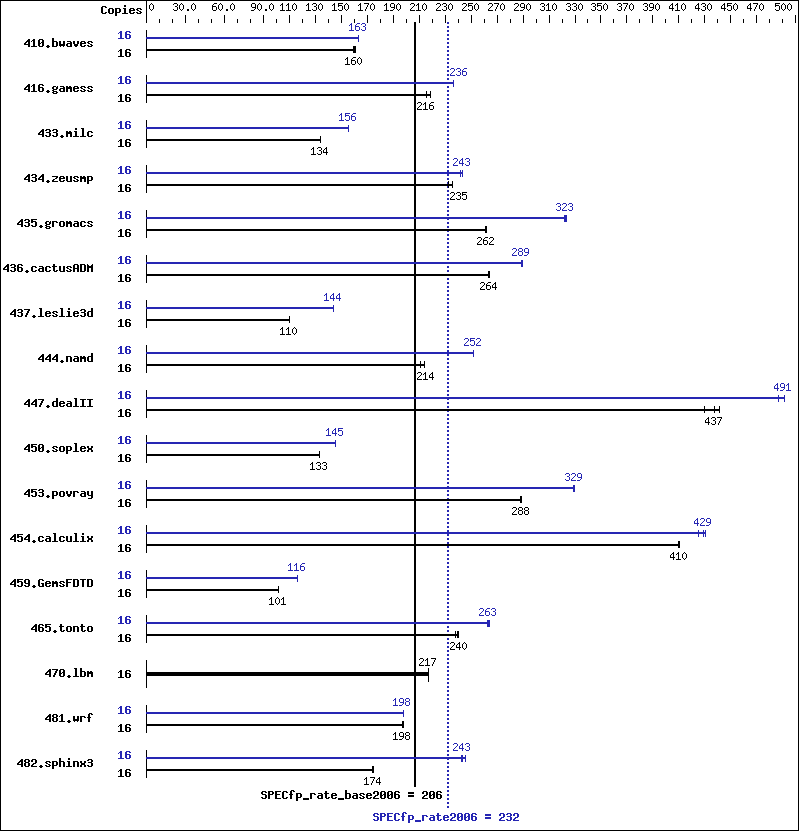

Benchmark results graph
Hardware
CPU Name: AMD Opteron 4386
CPU Characteristics: AMD Turbo CORE technology up to 3.80 GHz
CPU MHz: 3100
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 256 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (4 x 16 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 128 GB SSD
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.3,
Kernel 2.6.32-279.el6.x86_64
Compiler: C/C++/Fortran: Version 4.5.2 of x86 Open64
Compiler Suite (from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 1362 160 1360 160 1352 161 16 1329 164 1334 163 1330 163
416.gamess 16 1454 215 1453 216 1432 219 16 1325 236 1325 236 1324 237
433.milc 16 1094 134 1095 134 1094 134 16 944 156 943 156 943 156
434.zeusmp 16 626 233 618 235 617 236 16 599 243 603 242 598 243
435.gromacs 16 437 262 436 262 437 261 16 353 324 354 323 355 322
436.cactusADM 16 727 263 723 264 724 264 16 661 289 661 289 661 289
437.leslie3d 16 1369 110 1370 110 1369 110 16 1046 144 1046 144 1046 144
444.namd 16 600 214 599 214 608 211 16 510 252 510 252 510 252
447.dealII 16 419 437 415 441 426 430 16 376 487 373 491 373 491
450.soplex 16 1003 133 1004 133 1004 133 16 918 145 919 145 918 145
453.povray 16 295 288 295 288 295 289 16 258 330 258 329 259 329
454.calculix 16 322 410 322 410 321 411 16 306 431 308 429 310 425
459.GemsFDTD 16 1675 101 1676 101 1675 101 16 1463 116 1464 116 1463 116
465.tonto 16 663 238 656 240 654 241 16 596 264 599 263 599 263
470.lbm 16 1013 217 1012 217 1012 217 16 1013 217 1012 217 1012 217
481.wrf 16 906 197 904 198 903 198 16 903 198 902 198 905 198
482.sphinx3 16 1785 175 1787 174 1790 174 16 1271 245 1284 243 1282 243

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=14336 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1206-rate-libs-revA/32:/root/work/cpu2006v1.2/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1

C++ benchmarks:

 -Ofast   -static   -CG:load_exe=0   -OPT:malloc_alg=1   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -D__OPEN64_FAST_SET   -march=bdver1

Fortran benchmarks:

 -Ofast   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256   -HP:bd=2m:heap=2m   -mso   -march=bdver1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1   -HP:bd=2m:heap=2m   -IPA:plimit=8000   -IPA:small_pu=100   -mso   -march=bdver1   -LNO:blocking=off   -LNO:simd_peel_align=on   -OPT:rsqrt=2   -OPT:unroll_size=256

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Fortran benchmarks:

 openf95

Benchmarks using both Fortran and C:

 opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LINUX   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LP64   -fno-second-underscore

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:movnti=1   -CG:locs_best=on   -HP:bdt=2m:heap=2m   -IPA:plimit=7000   -IPA:callee_limit=1200   -OPT:struct_array_copy=2   -OPT:alias=field_sensitive   -mso   -march=bdver1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -IPA:plimit=1000   -OPT:malloc_alg=2   -CG:cmp_peep=on   -CG:p2align=0   -CG:load_exe=1   -CG:dsched=on   -INLINE:aggressive=on   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -mso   -march=bdver2

C++ benchmarks:

444.namd:  -Ofast   -IPA:plimit=3000   -LNO:ignore_feedback=off   -CG:local_sched_alg=0   -CG:load_exe=0   -OPT:unroll_size=256   -fno-exceptions   -HP:bdt=2m:heap=2m   -LNO:if_select_conv=1   -OPT:alias=disjoint   -LNO:psimd_iso_unroll=ON   -march=bdver1
447.dealII:  -Ofast   -D__OPEN64_FAST_SET   -static   -INLINE:aggressive=on   -LNO:opt=1   -LNO:simd=2   -fno-emit-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -CG:movext_icmp=off   -TENV:frame_pointer=off   -march=bdver1
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:ignore_feedback=off   -INLINE:aggressive=on   -OPT:RO=1   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -fno-exceptions   -CG:p2align=0   -m32   -mno-fma4   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:pre_local_sched=off   -CG:p2align=0   -CG:p2align_split=on   -CG:dsched=on   -INLINE:aggressive=on   -HP:bd=2m:heap=2m   -OPT:transform=2   -OPT:alias=disjoint   -WOPT:aggcm=0   -march=bdver2

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:Ofast   -OPT:treeheight=on   -LNO:blocking=off   -LNO:ignore_feedback=off   -LNO:fu=4   -LNO:loop_model_simd=on   -LNO:simd_rm_unity_remainder=on   -WOPT:aggstr=0   -HP:bdt=2m:heap=2m   -CG:cmp_peep=on   -march=bdver1
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:fu=6   -LNO:blocking=0   -LNO:simd=2   -OPT:ro=3   -OPT:recip=on   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -WOPT:sib=on   -march=bdver1
434.zeusmp:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:interchange=off   -IPA:plimit=1500   -HP:bdt=2m:heap=2m   -march=bdver1
437.leslie3d:  -Ofast   -CG:pre_minreg_level=2   -LNO:simd=0   -LNO:fusion=2   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
459.GemsFDTD:  -Ofast   -IPA:plimit=1500   -OPT:unroll_size=1024   -OPT:unroll_times_max=16   -LNO:fission=2   -CG:local_sched_alg=2   -HP   -march=bdver1
465.tonto:  -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -CG:local_sched_alg=3   -IPA:plimit=525   -HP:bdt=2m:heap=2m   -march=bdver1

Benchmarks using both Fortran and C:

435.gromacs:  -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m   -CG:local_sched_alg=2   -CG:load_exe=3   -GRA:unspill=on   -march=bdver1   -LNO:simd=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:blocking=off   -LNO:prefetch=2   -LNO:pf2=0   -LNO:prefetch_ahead=4   -HP   -CG:locs_shallow_depth=1   -CG:load_exe=0   -CG:dsched=on   -WOPT:sib=on   -march=bdver1
454.calculix:  -Ofast   -OPT:unroll_size=256   -OPT:alias=disjoint   -GRA:optimize_boundary=on   -CG:dsched=on   -HP:bdt=2m:heap=2m   -march=bdver1
481.wrf:  -Ofast   -LNO:blocking=off   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -HP   -WOPT:sib=on   -march=bdver1

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-II.xml.
