SPEC® CINT2006 Result

Supermicro

Supermicro A+ Server 1042G-LTF (H8QGL-6F, AMD
Opteron 6386 SE)
AMD Opteron 6386 SE

SPECint®_rate2006 = 1180

SPECint_rate_base2006 = 1040

CPU2006 license:	001176	Test date:	Sep-2012
Test sponsor:	Supermicro	Hardware Availability:	Sep-2012
Tested by:	Supermicro	Software Availability:	Aug-2012

Hardware
CPU Name:	AMD Opteron 6386 SE
CPU Characteristics:	AMD Turbo CORE technology up to 3.50 GHz
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	64 cores, 4 chips, 16 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache:	None
Memory:	128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64
Compiler:	C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 10.0 32-bit Library for Linux

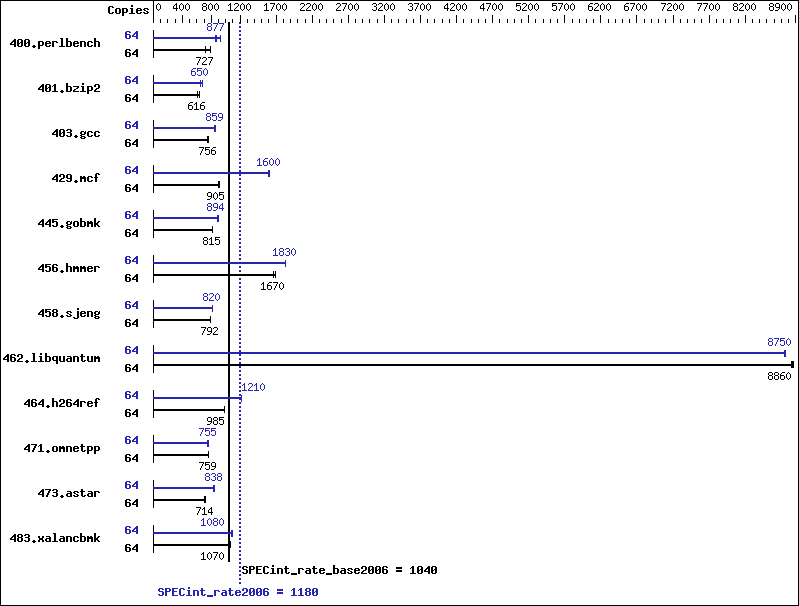

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	64	790	792	861	727	860	727	64	729	858	670	933	713	877
401.bzip2	64	972	635	1003	616	1006	614	64	951	650	913	677	953	648
403.gcc	64	683	754	681	756	678	760	64	605	852	600	859	598	861
429.mcf	64	641	911	650	898	645	905	64	365	1600	365	1600	362	1610
445.gobmk	64	828	811	823	815	817	822	64	752	892	751	894	751	894
456.hmmer	64	360	1660	358	1670	353	1690	64	326	1830	327	1830	326	1830
458.sjeng	64	981	789	977	793	978	792	64	942	822	944	820	946	819
462.libquantum	64	150	8860	150	8860	150	8840	64	151	8760	152	8750	152	8740
464.h264ref	64	1432	989	1439	984	1437	985	64	1167	1210	1166	1210	1164	1220
471.omnetpp	64	527	759	527	759	527	758	64	532	751	529	757	529	755
473.astar	64	630	713	629	714	629	714	64	534	841	536	838	536	837
483.xalancbmk	64	412	1070	413	1070	412	1070	64	409	1080	411	1080	402	1100

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Transparent huge pages were enabled for this run (OS default)

Huge pages were not configured for this run.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/home/spec/amd1206-rate-libs-revA/32:/home/spec/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1

C++ benchmarks:

-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -LNO:opt=0 -IPA:plimit=20000 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -WOPT:if_conv=0 -WOPT:sib=on -CG:local_sched_alg=1 -CG:unroll_fb_req=on -CG:movext_icmp=off -HP:bd=2m:heap=2m -march=bdver1 -GRA:aggr_loop_splitting=off -GRA:loop_splitting=off
401.bzip2:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=2 -LNO:pf2=0 -OPT:alias=disjoint -OPT:goto=off -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver2
403.gcc:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:trip_count=256 -CG:cmp_peep=on -CG:pre_minreg_level=2 -m32 -HP:bdt=2m:heap=2m -GRA:unspill=on -IPA:small_pu=200 -WOPT:sib=on -march=bdver2 -mno-fma4
429.mcf:	-O3 -OPT:unroll_times_max=5 -ipa -INLINE:aggressive=on -CG:gcm=off -CG:dsched=on -GRA:prioritize_by_density=on -m32 -HP:bdt=2m:heap=2m -mso -march=bdver1
445.gobmk:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:unroll_size=256 -OPT:unroll_times_max=8 -OPT:keep_ext=on -IPA:plimit=750 -IPA:min_hotness=300 -IPA:pu_reorder=1 -LNO:ignore_feedback=off -WOPT:if_conv=2 -HP:bd=2m:heap=2m -march=bdver1
456.hmmer:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:prefetch=2 -OPT:alias=disjoint -OPT:unroll_times_max=16 -OPT:unroll_size=512 -OPT:unroll_level=2 -OPT:keep_ext=on -CG:cflow=0 -CG:cmp_peep=on -CG:pre_local_sched=off -HP:bdt=2m:heap=2m -CG:p2align=0 -CG:load_exe=3 -CG:dsched=on -march=bdver1
458.sjeng:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:ptr_load_use=0 -CG:divrem_opt=on -CG:movext_icmp=off -CG:locs_best=on -LNO:full_unroll=10 -IPA:pu_reorder=2 -HP:heap=2m:bd=2m -WOPT:sib=on -march=bdver1
462.libquantum:	-Ofast -mso -OPT:unroll_size=512 -OPT:unroll_times_max=16 -LNO:prefetch=2 -LNO:prefetch_ahead=4 -LNO:pf2=0 -CG:local_sched_alg=1 -CG:p2align=0 -INLINE:aggressive=ON -IPA:plimit=15000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m,limit=300 -march=bdver2
464.h264ref:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -IPA:plimit=20000 -OPT:alias=disjoint -CG:ptr_load_use=0 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -march=bdver1

C++ benchmarks:

471.omnetpp:	-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -WOPT:sib=on -D__OPEN64_FAST_SET -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:if_conv=0 -WOPT:sib=on -CG:divrem_opt=on -CG:p2align=1 -CG:dsched=on -GRA:optimize_boundary=on -OPT:alias=disjoint -INLINE:aggressive=on -IPA:small_pu=3000 -IPA:plimit=3000 -HP:bdt=2m:heap=2m -march=bdver1
483.xalancbmk:	-Ofast -LNO:prefetch=2 -OPT:unroll_size=512 -OPT:unroll_times_max=8 -D__OPEN64_FAST_SET -INLINE:aggressive=on -m32 -CG:cmp_peep=on -CG:local_sched=off -CG:p2align=1 -GRA:unspill=on -TENV:frame_pointer=off -fno-emit-exceptions -march=bdver2 -mno-fma4 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.xml.
