CPU2006 license: | 001176 | Test date: | Oct-2012 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Nov-2012 |
Tested by: | Supermicro | Software Availability: | Aug-2012 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6308 |
CPU Characteristics: | |
CPU MHz: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 128 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 2 cores |
Other Cache: | None |
Memory: | 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

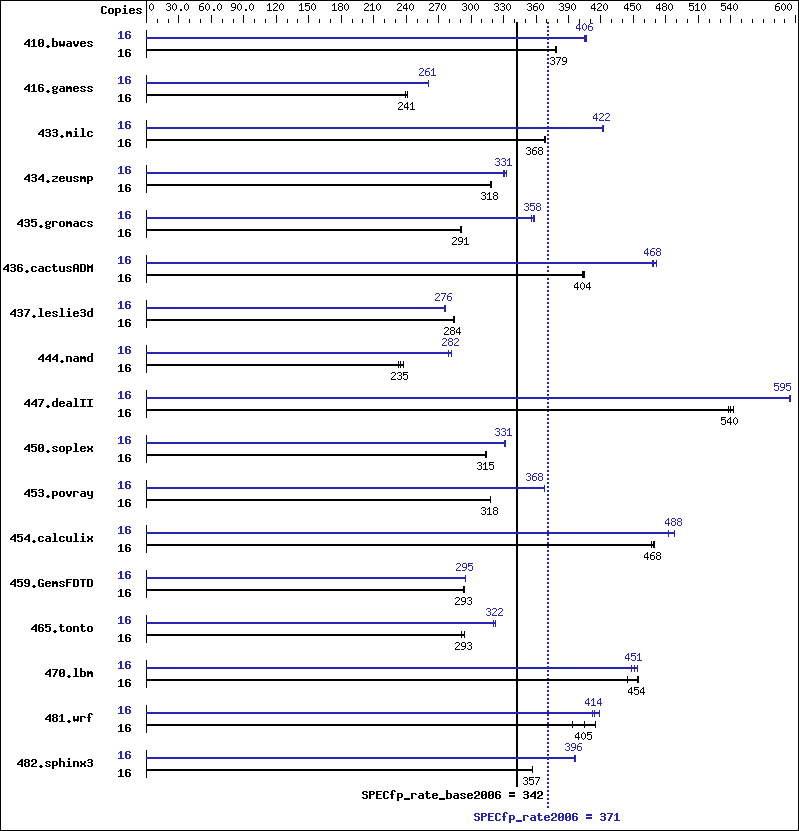

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 16 | 575 | 378 | 574 | 379 | 574 | 379 | 16 | 536 | 406 | 535 | 406 | 537 | 405 |
416.gamess | 16 | 1300 | 241 | 1309 | 239 | 1298 | 241 | 16 | 1200 | 261 | 1202 | 261 | 1201 | 261 |
433.milc | 16 | 399 | 368 | 399 | 368 | 399 | 368 | 16 | 348 | 422 | 348 | 422 | 348 | 421 |
434.zeusmp | 16 | 456 | 319 | 458 | 318 | 458 | 318 | 16 | 441 | 330 | 438 | 333 | 440 | 331 |
435.gromacs | 16 | 392 | 291 | 392 | 291 | 393 | 291 | 16 | 319 | 358 | 321 | 356 | 319 | 358 |
436.cactusADM | 16 | 472 | 405 | 473 | 404 | 475 | 403 | 16 | 409 | 468 | 406 | 471 | 408 | 468 |
437.leslie3d | 16 | 530 | 284 | 530 | 284 | 528 | 285 | 16 | 546 | 275 | 545 | 276 | 545 | 276 |
444.namd | 16 | 541 | 237 | 552 | 233 | 546 | 235 | 16 | 455 | 282 | 455 | 282 | 459 | 280 |
447.dealII | 16 | 337 | 543 | 340 | 538 | 339 | 540 | 16 | 308 | 595 | 308 | 594 | 308 | 595 |
450.soplex | 16 | 424 | 315 | 424 | 315 | 425 | 314 | 16 | 403 | 331 | 403 | 331 | 403 | 332 |
453.povray | 16 | 267 | 318 | 268 | 318 | 268 | 318 | 16 | 232 | 367 | 232 | 368 | 231 | 368 |
454.calculix | 16 | 282 | 468 | 281 | 470 | 283 | 467 | 16 | 270 | 488 | 273 | 483 | 270 | 488 |
459.GemsFDTD | 16 | 578 | 294 | 579 | 293 | 578 | 293 | 16 | 576 | 294 | 575 | 295 | 576 | 295 |
465.tonto | 16 | 541 | 291 | 536 | 293 | 535 | 294 | 16 | 488 | 322 | 489 | 322 | 491 | 321 |
470.lbm | 16 | 485 | 454 | 495 | 444 | 484 | 454 | 16 | 491 | 448 | 484 | 454 | 487 | 451 |
481.wrf | 16 | 431 | 415 | 454 | 394 | 441 | 405 | 16 | 431 | 414 | 427 | 419 | 433 | 413 |
482.sphinx3 | 16 | 874 | 357 | 873 | 357 | 873 | 357 | 16 | 788 | 396 | 787 | 396 | 788 | 396 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=14336 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/spec/amd1206-rate-libs-revA/32:/home/spec/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 |
-Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET -march=bdver1 |
-Ofast -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso -march=bdver1 |
-Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -march=bdver1 -LNO:blocking=off -LNO:simd_peel_align=on -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
