CPU2006 license: | 001176 | Test date: | Nov-2012 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Nov-2012 |
Tested by: | Supermicro | Software Availability: | Aug-2012 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6320 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.30 GHz |
CPU MHz: | 2800 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 256 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 4 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.2, Kernel 2.6.32-220.el6.x86_64 |
Compiler: | C/C++: Version 4.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 10.0 32-bit Library for Linux |

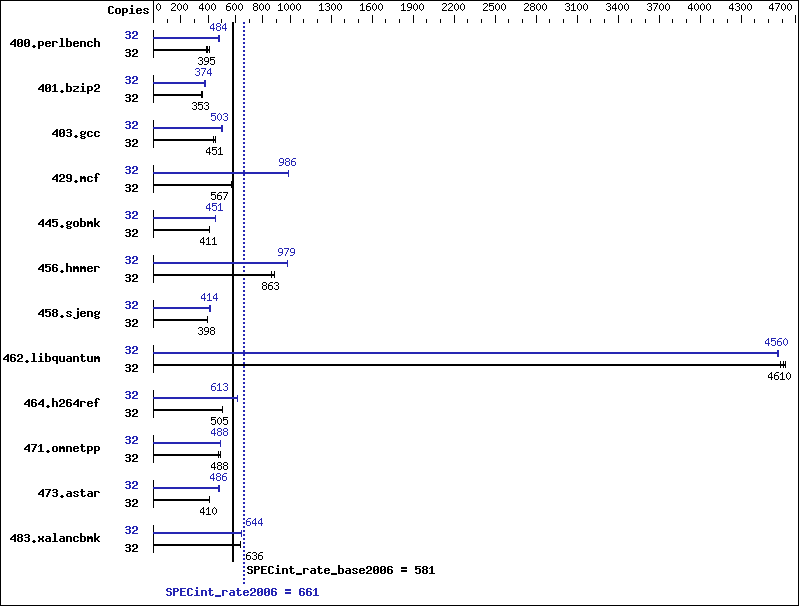

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 32 | 802 | 390 | 792 | 395 | 767 | 407 | 32 | 653 | 479 | 644 | 485 | 646 | 484 |
401.bzip2 | 32 | 870 | 355 | 879 | 351 | 876 | 353 | 32 | 813 | 380 | 825 | 374 | 825 | 374 |
403.gcc | 32 | 570 | 452 | 586 | 440 | 571 | 451 | 32 | 512 | 503 | 515 | 500 | 508 | 507 |
429.mcf | 32 | 514 | 567 | 514 | 568 | 514 | 567 | 32 | 296 | 985 | 296 | 986 | 296 | 987 |
445.gobmk | 32 | 817 | 411 | 816 | 411 | 817 | 411 | 32 | 745 | 451 | 746 | 450 | 745 | 451 |
456.hmmer | 32 | 346 | 863 | 338 | 882 | 347 | 862 | 32 | 305 | 979 | 303 | 984 | 305 | 979 |
458.sjeng | 32 | 972 | 399 | 972 | 398 | 973 | 398 | 32 | 936 | 414 | 935 | 414 | 937 | 413 |
462.libquantum | 32 | 144 | 4610 | 143 | 4630 | 144 | 4590 | 32 | 145 | 4570 | 145 | 4560 | 145 | 4560 |
464.h264ref | 32 | 1404 | 505 | 1408 | 503 | 1402 | 505 | 32 | 1158 | 611 | 1156 | 613 | 1153 | 614 |
471.omnetpp | 32 | 421 | 476 | 409 | 489 | 409 | 488 | 32 | 411 | 487 | 410 | 488 | 409 | 489 |
473.astar | 32 | 550 | 409 | 548 | 410 | 547 | 411 | 32 | 462 | 486 | 462 | 486 | 471 | 477 |
483.xalancbmk | 32 | 348 | 635 | 347 | 636 | 347 | 636 | 32 | 341 | 647 | 343 | 644 | 343 | 644 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst Set vm/nr_hugepages=28672 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/home/spec/amd1206-rate-libs-revA/32:/home/spec/amd1206-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-Ofast -CG:local_sched_alg=1 -INLINE:aggressive=ON -IPA:plimit=8000 -IPA:small_pu=100 -HP:bd=2m:heap=2m -mso -LNO:prefetch=2 -march=bdver1 |
-Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -D__OPEN64_FAST_SET -march=bdver1 -L/root/work/libraries/SmartHeap-10/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
