SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 750 Express (4.0 GHz, 32 core, SLES)

CPU2006 license: 11 Test date: Jan-2013
Test sponsor: IBM Corporation Hardware Availability: Mar-2013
Tested by: IBM Corporation Software Availability: Dec-2012

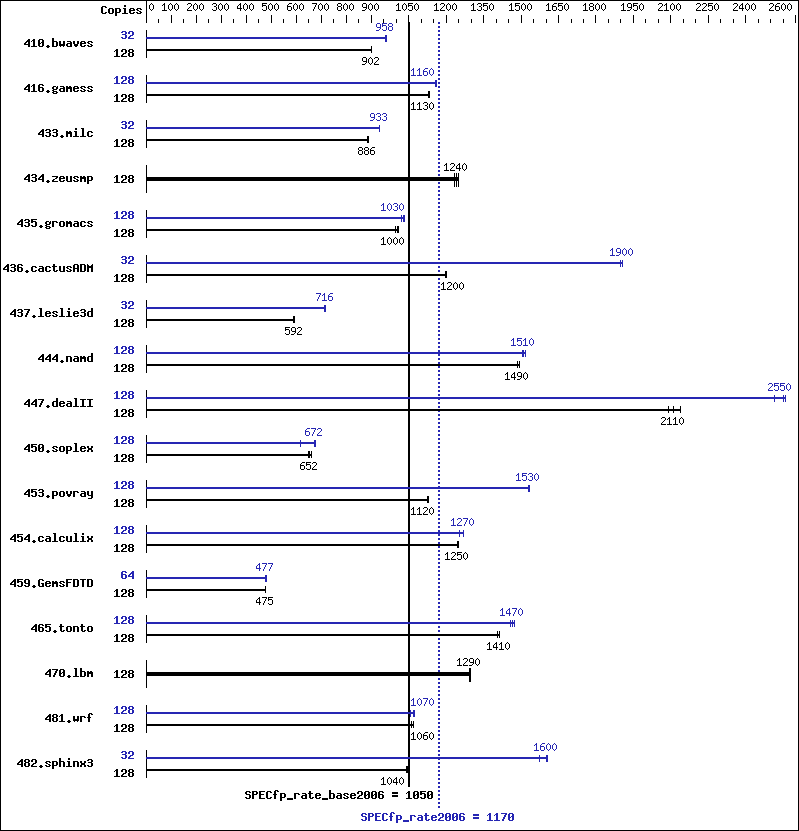

Benchmark results graph
Hardware
CPU Name: POWER7+
CPU Characteristics: Intelligent Energy Optimization enabled,
up to 4.431 GHz
CPU MHz: 4060
FPU: Integrated
CPU(s) enabled: 32 cores, 8 chips, 4 cores/chip, 4 threads/core
CPU(s) orderable: 8, 16, 24, 32 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 10 MB I+D on chip per core
Other Cache: None
Memory: 256 GB (64 x 4 GB) DDR3 1066 MHz
Disk Subsystem: 3 x 146.8 GB Raid0 SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP2
(ppc64) kernel 3.0.42-0.7-ppc64
Compiler: C/C++: Version 12.1 of IBM XL C/C++ for Linux;
Fortran: Version 14.1 of IBM XL Fortran for Linux
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, version 5.6.1-7
-MicroQuill SmartHeap 9
-Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 128 1929 902 1928 902 1927 903 32 454 957 454 958 453 959
416.gamess 128 2217 1130 2214 1130 2221 1130 128 2155 1160 2158 1160 2166 1160
433.milc 128 1327 886 1324 888 1327 885 32 315 933 314 935 315 932
434.zeusmp 128 932 1250 939 1240 944 1230 128 932 1250 939 1240 944 1230
435.gromacs 128 906 1010 910 1000 916 998 128 889 1030 896 1020 886 1030
436.cactusADM 128 1271 1200 1277 1200 1277 1200 32 201 1900 201 1910 201 1900
437.leslie3d 128 2032 592 2025 594 2041 590 32 420 716 420 716 421 714
444.namd 128 688 1490 690 1490 690 1490 128 681 1510 677 1520 680 1510
447.dealII 128 701 2090 694 2110 685 2140 128 574 2550 572 2560 582 2520
450.soplex 128 1641 650 1612 662 1638 652 128 1726 618 1589 672 1580 676
453.povray 128 605 1120 605 1120 603 1130 128 445 1530 445 1530 444 1530
454.calculix 128 845 1250 849 1240 848 1250 128 832 1270 833 1270 843 1250
459.GemsFDTD 128 2860 475 2848 477 2859 475 64 1428 476 1425 477 1418 479
465.tonto 128 895 1410 890 1410 890 1410 128 864 1460 855 1470 860 1470
470.lbm 128 1357 1300 1360 1290 1360 1290 128 1357 1300 1360 1290 1360 1290
481.wrf 128 1346 1060 1336 1070 1346 1060 128 1351 1060 1337 1070 1334 1070
482.sphinx3 128 2392 1040 2390 1040 2391 1040 32 396 1580 389 1600 389 1600

Compiler Invocation Notes

  C/C++ compiler updated to December 2012 PTF
  Version: 12.01.0000.0002
  Fortran compiler updated to December 2012 PTF
  Version: 14.01.0000.0002

Peak Tuning Notes

 Post-Link optimization tool used for:
 433.milc 435.gromacs 450.soplex 482.sphinx3
      with options -O4 -nodp
 434.zeusmp
      with options -O4 -vrox -nodp
  437.leslie3d
       with options -O3 -lu -1 -nodp -sdp 9
  444.namd
       with options -O3 -lu -1 -nodp -sdp 9
  450.soplex
      with options -O4 -nodp
 465.tonto
    with options -O4
 482.sphinx3
     with options -O4 -nodp

Submit Notes

  The config file option 'submit' was used
  to assign benchmark copy to specific kernel thread using
  the "numactl" command (see flags file for details).

Operating System Notes

  ulimit -s (stack) set to 1048576.

  Large pages reserved as follows by root user:
  echo 8448 > /proc/sys/vm/nr_hugepages

  The Apache C++ Standard Library V4.2.1 was installed from
  http://stdcxx.apache.org/download.html using:
  gmake BUILDTYPE=8d CONFIG=gcc.config

  The following environment varibles were set before the runspec command:
    export HUGETLB_VERBOSE=0
    export HUGETLB_MORECORE=yes
    export HUGETLB_ELFMAP=RW
    export XLFRTEOPTS=intrinthds=1

Platform Notes

   Hardware Page Table (HPT) ratio changed as follows by root user on Hardware Management Console (HMC):
   chsyscfg -m <CEC NAME> -r prof -i "name=<PROFILE NAME>,lpar_name=<PARTITION NAME>,hpt_ratio=1:512"

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

C++ benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qrtti   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Fortran benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr7   -qtune=pwr7   -q32   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align   -qalias=nostd

Base Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -DSPEC_CPU_LP64   -qfixed   -qextname
437.leslie3d:  -qfixed
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
470.lbm:  basepeak = yes
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs

C++ benchmarks:

444.namd:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -lhugetlbfs
447.dealII:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qrtti   -qcpp_stdinc=/opt/stdcxx421/include/ansi:/opt/stdcxx421/include:/opt/ibmcmp/vacpp/12.1/include   -lsmartheap   -L/opt/stdcxx421/lib   -R/opt/stdcxx421/lib   -lstd8d
450.soplex:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -q64   -lsmartheap64

Fortran benchmarks:

410.bwaves:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsmallstack=dynlenonheap   -q64   -lhugetlbfs
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qalias=nostd   -lhugetlbfs
434.zeusmp:  basepeak = yes
437.leslie3d:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -q64   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
459.GemsFDTD:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -lhugetlbfs
436.cactusADM:  -O4   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -qsimd   -qnostrict   -q64   -lhugetlbfs
454.calculix:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qipa=threads   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
481.wrf:  -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs

Peak Other Flags

C benchmarks:

C++ benchmarks:

Fortran benchmarks:

Benchmarks using both Fortran and C:


The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.html,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-Power.20130226.xml,
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20121024.xml.
