SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

SPARC T5-8

CPU2006 license: 6 Test date: Mar-2013
Test sponsor: Oracle Corporation Hardware Availability: Mar-2013
Tested by: Oracle Corporation Software Availability: Feb-2013

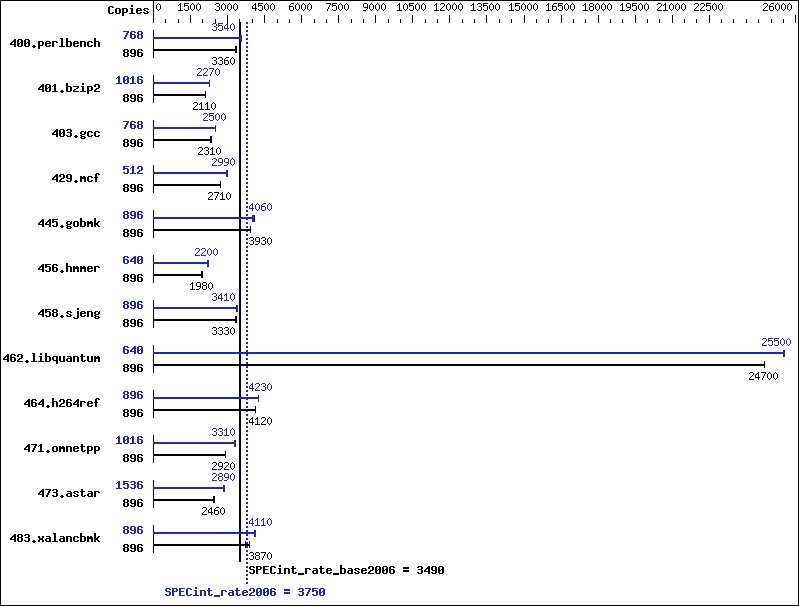

Benchmark results graph
Hardware
CPU Name: SPARC T5
CPU Characteristics:
CPU MHz: 3600
FPU: Integrated
CPU(s) enabled: 128 cores, 8 chips, 16 cores/chip, 8 threads/core
CPU(s) orderable: 8 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 128 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 4 TB (128 x 32 GB), 4-way interleaved
Disk Subsystem: 2 TB on 8x 600 GB 10K RPM SAS
disks, arranged as 4x 2-way mirrors
Other Hardware: None
Software
Operating System: Oracle Solaris 11.1, SRU 4.6
Compiler: C/C++: Version 12.3 of Oracle Solaris Studio,
1/13 Platform Specific Enhancement
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 896 2634 3320 2604 3360 2607 3360 768 2122 3540 2118 3540 2102 3570
401.bzip2 896 4101 2110 4083 2120 4133 2090 1016 4305 2280 4315 2270 4310 2270
403.gcc 896 3127 2310 3125 2310 3094 2330 768 2482 2490 2477 2500 2474 2500
429.mcf 896 3014 2710 3019 2710 3031 2700 512 1562 2990 1579 2960 1561 2990
445.gobmk 896 2393 3930 2401 3910 2393 3930 896 2299 4090 2317 4060 2339 4020
456.hmmer 896 4299 1940 4212 1980 4206 1990 640 2739 2180 2702 2210 2709 2200
458.sjeng 896 3258 3330 3262 3320 3227 3360 896 3180 3410 3222 3360 3182 3410
462.libquantum 896 750 24700 751 24700 751 24700 640 520 25500 520 25500 519 25600
464.h264ref 896 4817 4120 4815 4120 4818 4120 896 4685 4230 4685 4230 4684 4230
471.omnetpp 896 1914 2930 1917 2920 1917 2920 1016 1918 3310 1925 3300 1916 3310
473.astar 896 2561 2460 2568 2450 2538 2480 1536 3780 2850 3734 2890 3736 2890
483.xalancbmk 896 1663 3720 1596 3870 1596 3870 896 1507 4100 1501 4120 1503 4110

Submit Notes

 Processes were bound to cores using "submit" and "pbind".  The config
 file option 'submit' was used in order to accomplish this.

Operating System Notes


 ulimit -s 131072 was used to limit the space
 consumed by the stack

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    lpg_alloc_prefer=1
        Indicates that extra effort should be taken to ensure
        that pages are created in the nearby lgroup (NUMA location).
    tsb_rss_factor=128
        Suggests that the the size of the TSB (Translation
        Storage Buffer) may be increased if it is more than
        25% (128/512) full.  Doing so may reduce TSB traps,
        at the cost of additional kernel memory.
    zfs:zfs_arc_min =  1073741824
    zfs:zfs_arc_max =  0x10000000000
        Limits the consumption of memory by the zfs file system
        cache to the range 1 GB to 1 TB.
    plat_disable_mempm=1
        Do not attempt to allocate kernel memory in a power-aware fashion

 poweradm set administrative-authority=none
     Disables Solaris power management

 A swapfile of 4 TB was connected via Fibre Channel
 on a Sun Storage 2540-M2 with 12x SAS 600 GB
 disks, Raid-5

Platform Notes

 Power policy set to 'disabled' at ILOM Power Managment menu
 Sysinfo program /cpu2006/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ 5569a0425e2ad530534e4c79a46e4d28
 running on bur407-139.us.oracle.com Fri Mar 22 11:22:47 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC-T5 (chipid 0, clock 3600 MHz)
    SPARC-T5 (chipid 1, clock 3600 MHz)
    SPARC-T5 (chipid 2, clock 3600 MHz)
    SPARC-T5 (chipid 3, clock 3600 MHz)
    SPARC-T5 (chipid 4, clock 3600 MHz)
    SPARC-T5 (chipid 5, clock 3600 MHz)
    SPARC-T5 (chipid 6, clock 3600 MHz)
    SPARC-T5 (chipid 7, clock 3600 MHz)
    8 chips
    1024 threads
    3600 MHz

 From kstat:      128 cores

 From prtconf: 4 Terabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS bur407-139.us.oracle.com 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/export/cpu2006    98G   973M        86G     2%    /cpu2006

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

(*) Indicates a compiler flag that was found in a non-compiler variable.

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -g   -fast   -xipo=2   -xpagesize=256M   -xprefetch=no%auto   -xalias_level=std   -M map.64K.align   -lfast

C++ benchmarks:

 -g   -fast   -xipo=2   -xpagesize=256M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -library=stlport4   -M map.256M.align   -lfast

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Peak Compiler Invocation

C benchmarks (except as noted below):

 cc
401.bzip2:  cc
403.gcc:  cc
464.h264ref:  cc

C++ benchmarks:

 CC

(*) Indicates a compiler flag that was found in a non-compiler variable.

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -M map.256M.align   -xipo=2   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64   -lfast
401.bzip2:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M map.4M.align   -xalias_level=strong   -xprefetch=no%auto
403.gcc:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M map.4M.align   -xalias_level=std   -xprefetch_level=2
429.mcf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -M map.256M.align   -xipo=2   -xprefetch=no%auto   -Wc,-Qiselect-funcalign=64
445.gobmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -M map.256M.align   -xalias_level=std   -xrestrict   -xprefetch=no%auto
456.hmmer:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -M map.256M.align   -xipo=2   -Wc,-xthroughput   -W2,-xthroughput=yes   -W2,-Rloop_dist   -Wc,-Qpeep-Ex1:minmax_use_cmov=2
458.sjeng:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -M map.256M.align   -xipo=2   -xprefetch=no%auto   -Wc,-xthroughput   -W2,-xthroughput=yes
462.libquantum:  -g   -fast   -xpagesize=256M   -M map.256M.align   -xipo=2   -xalias_level=std   -xprefetch_level=2   -Wc,-Qlu-en=1-t=4   -Wc,-Qiselect-funcalign=64   -lbsdmalloc
464.h264ref:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -M map.64K.align   -xipo=2   -xalias_level=std

C++ benchmarks:

471.omnetpp:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -xalias_level=compatible   -M map.256M.align   -xipo=2   -xprefetch_level=2   -library=stdcxx4   -lfast
473.astar:  -g   -fast   -xpagesize=256M   -xalias_level=compatible   -M map.256M.align   -xipo=2   -Wc,-xthroughput   -W2,-xthroughput=yes   -library=stdcxx4   -lfast
483.xalancbmk:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=256M   -xalias_level=compatible   -xdepend   -M map.256M.align   -xipo=2   -library=stlport4   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC.html,
http://www.spec.org/cpu2006/flags/Oracle-Tseries.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC.xml,
http://www.spec.org/cpu2006/flags/Oracle-Tseries.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 15:43:44 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 9 April 2013.
