SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

SPARC T5-1B

CPU2006 license: 6 Test date: Mar-2013
Test sponsor: Oracle Corporation Hardware Availability: Mar-2013
Tested by: Oracle Corporation Software Availability: Feb-2013

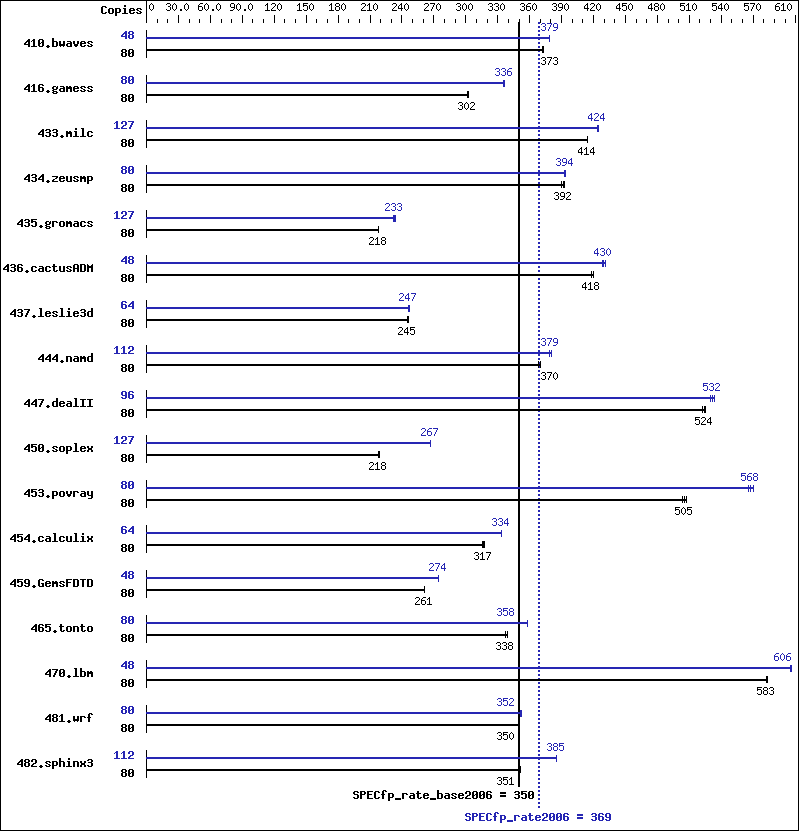

Benchmark results graph
Hardware
CPU Name: SPARC T5
CPU Characteristics:
CPU MHz: 3600
FPU: Integrated
CPU(s) enabled: 16 cores, 1 chip, 16 cores/chip, 8 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 128 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 256 GB (16 x 16 GB), 4-way interleaved
Disk Subsystem: 157 GB on 2x 300 GB 10K RPM SAS
disks (mirrored)
Other Hardware: None
Software
Operating System: Oracle Solaris 11.1, SRU 3.4
Compiler: C/C++/Fortran: Version 12.3 of Oracle Solaris,
1/13 Platform Specific Enhancement
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 80 2918 373 2921 372 2916 373 48 1724 378 1722 379 1723 379
416.gamess 80 5186 302 5189 302 5184 302 80 4666 336 4661 336 4661 336
433.milc 80 1772 414 1772 414 1773 414 127 2752 424 2748 424 2749 424
434.zeusmp 80 1855 393 1866 390 1859 392 80 1850 394 1853 393 1850 394
435.gromacs 80 2625 218 2625 218 2624 218 127 3901 232 3891 233 3874 234
436.cactusADM 80 2286 418 2286 418 2276 420 48 1330 431 1335 430 1338 429
437.leslie3d 80 3069 245 3065 245 3058 246 64 2443 246 2440 247 2439 247
444.namd 80 1731 371 1734 370 1740 369 112 2363 380 2374 378 2373 379
447.dealII 80 1743 525 1751 523 1747 524 96 2072 530 2057 534 2065 532
450.soplex 80 3055 218 3054 218 3056 218 127 3975 266 3963 267 3964 267
453.povray 80 842 505 845 504 838 508 80 747 570 752 566 749 568
454.calculix 80 2085 317 2079 317 2092 316 64 1582 334 1584 333 1583 334
459.GemsFDTD 80 3250 261 3250 261 3251 261 48 1858 274 1858 274 1858 274
465.tonto 80 2331 338 2323 339 2331 338 80 2201 358 2202 358 2199 358
470.lbm 80 1886 583 1886 583 1885 583 48 1089 606 1089 606 1090 605
481.wrf 80 2556 350 2556 350 2555 350 80 2536 352 2546 351 2541 352
482.sphinx3 80 4451 350 4437 351 4442 351 112 5668 385 5670 385 5668 385

Submit Notes

 Processes were bound to cores using "submit" and "pbind".  The config
 file option 'submit' was used in order to accomplish this.

Operating System Notes


 ulimit -s 131072 was used to limit the space
 consumed by the stack

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    tsb_rss_factor=128
        Suggests that the the size of the TSB (Translation
        Storage Buffer) may be increased if it is more than
        25% (128/512) full.  Doing so may reduce TSB traps,
        at the cost of additional kernel memory.
    zfs:zfs_arc_min =  1073741824
    zfs:zfs_arc_max =  64424509440
        Limits the consumption of memory by the zfs file system
        cache to the range 1 GB to 60 GB.

  pkg update disabled with  svcadm disable pkg/update

Platform Notes

 Sysinfo program /cpu2006/config/sysinfo.rev6818
 $Rev: 6818 $ $Date:: 2012-07-17 #$ 5569a0425e2ad530534e4c79a46e4d28
 running on bur408-183.us.oracle.com Wed Mar 20 20:46:02 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 From /usr/sbin/psrinfo
    SPARC-T5 (chipid 0, clock 3600 MHz)
    1 chips
    128 threads
    3600 MHz

 From kstat:       16 cores

 From prtconf: 261120 Megabytes

 /etc/release:
      Oracle Solaris 11.1 SPARC
 uname -a:
    SunOS bur408-183.us.oracle.com 5.11 11.1 sun4v sparc sun4v

 disk: df -h  $SPEC
 Filesystem             Size   Used  Available Capacity  Mounted on
 rpool/cpu2006          166G   2.1G       155G     2%    /cpu2006

 (End of data from sysinfo program)

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

(*) Indicates a compiler flag that was found in a non-compiler variable.

Base Optimization Flags

C benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=256M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -M map.64K.align

C++ benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=256M   -xprefetch_level=2   -xalias_level=compatible   -library=stdcxx4   -M map.64K.align

Fortran benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=256M   -xprefetch_level=2   -M map.64K.align

Benchmarks using both Fortran and C:

 -g   -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=256M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -M map.64K.align

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Fortran benchmarks:

 -xjobs=16   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=16   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

433.milc:  cc
470.lbm:  cc
482.sphinx3:  cc

C++ benchmarks (except as noted below):

 CC
450.soplex:  CC
453.povray:  CC

Fortran benchmarks (except as noted below):

 f90
410.bwaves:  f90

Benchmarks using both Fortran and C (except as noted below):

 cc   f90
481.wrf:  cc   f90

(*) Indicates a compiler flag that was found in a non-compiler variable.

Peak Optimization Flags

C benchmarks:

433.milc:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xprefetch_level=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:3
470.lbm:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xpagesize=256M   -Wc,-xthroughput   -W2,-xthroughput=yes   -M map.256M.align   -xipo=2   -xprefetch_level=2   -xprefetch=latx:3
482.sphinx3:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xinline=   -xprefetch_level=2   -xrestrict   -xalias_level=strong   -fsimple=1   -lfast

C++ benchmarks:

444.namd:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xalias_level=compatible   -M map.4M.align   -xipo=2   -xprefetch=no%auto   -xdepend   -library=stdcxx4   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes   -xprefetch_level=1
447.dealII:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xalias_level=compatible   -M map.4M.align   -xipo=2   -xrestrict   -xprefetch_level=2   -library=stdcxx4   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes
450.soplex:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -xalias_level=simple   -xrestrict   -library=stlport4   -xipo=2
453.povray:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -xalias_level=compatible   -M map.256M.align   -xipo=2   -library=stdcxx4   -xpagesize=256M   -Wc,-xthroughput   -W2,-xthroughput=yes

Fortran benchmarks:

410.bwaves:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.256M.align   -xipo=2   -xprefetch_level=3   -xpagesize=256M
416.gamess:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xprefetch=no%auto   -xpagesize=4M
434.zeusmp:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes
437.leslie3d:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes   -xprefetch_level=1
459.GemsFDTD:  -g   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xprefetch_level=3   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes
465.tonto:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xpagesize=4M   -stackvar   -Wc,-xthroughput   -W2,-xthroughput=yes   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -g   -fast(cc)   -fast(f90)   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes
436.cactusADM:  -g   -fast(cc)   -fast(f90)   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.4M.align   -xipo=2   -xprefetch_level=2   -xpagesize=4M   -Wc,-xthroughput   -W2,-xthroughput=yes
454.calculix:  -g   -fast(cc)   -fast(f90)   -fma=fused   -Wc,-Qiselect-funcalign=64   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -M map.4M.align   -xipo=2   -xprefetch_level=2   -xprefetch=latx:3   -xpagesize=4M
481.wrf:  -g   -fast(cc)   -fast(f90)   -fma=fused   -Wc,-Qiselect-funcalign=64   -M map.256M.align   -xipo=2   -xpagesize=256M   -Wc,-xthroughput   -W2,-xthroughput=yes

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Fortran benchmarks:

 -xjobs=16   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=16   -V   -#   -v

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC.html,
http://www.spec.org/cpu2006/flags/Oracle-Tseries.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.3-SPARC.xml,
http://www.spec.org/cpu2006/flags/Oracle-Tseries.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.2.
Report generated on Thu Jul 24 15:41:18 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 9 April 2013.
