SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Supermicro A+ Server AS-2042G-72RF4 (H8QG7-LN4F,
Opteron 6380)
AMD Opteron 6380

CPU2006 license: 001176 Test date: Nov-2012
Test sponsor: Supermicro Hardware Availability: Nov-2012
Tested by: Supermicro Software Availability: Aug-2012

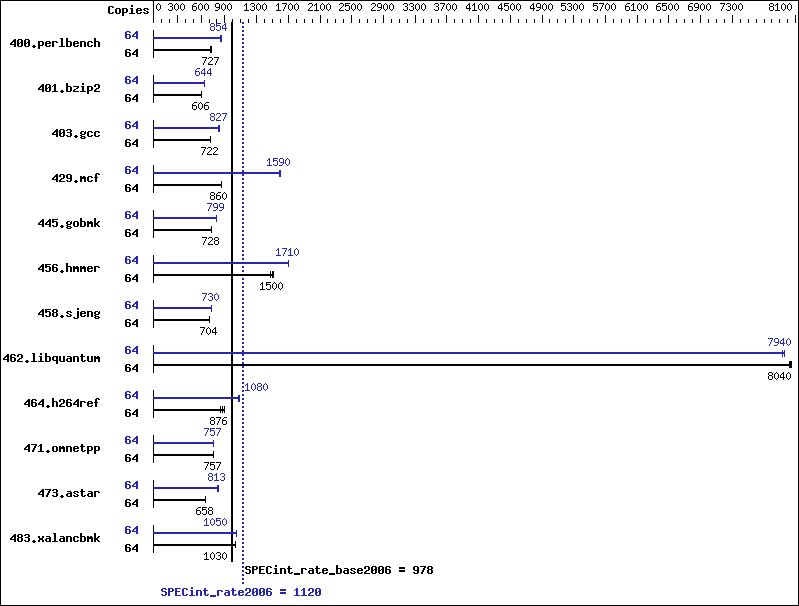

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6380
CPU Characteristics: AMD Turbo CORE technology up to 3.40 GHz
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 512 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache: None
Memory: 256 GB (32 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.2,
Kernel 2.6.32-220.el6.x86_64
Compiler: C/C++: Version 4.5.2 of x86 Open64 Compiler Suite
(from AMD)
Auto Parallel: No
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 865 723 860 727 855 731 64 735 851 732 854 727 860
401.bzip2 64 1016 608 1019 606 1021 605 64 954 647 964 640 959 644
403.gcc 64 713 722 718 718 711 724 64 630 818 623 827 623 827
429.mcf 64 678 861 683 855 679 860 64 366 1590 366 1590 366 1600
445.gobmk 64 922 728 921 729 923 727 64 840 800 841 799 840 799
456.hmmer 64 397 1500 405 1480 396 1510 64 350 1710 350 1710 351 1700
458.sjeng 64 1100 704 1100 704 1099 705 64 1061 730 1060 731 1064 728
462.libquantum 64 165 8030 165 8040 165 8040 64 167 7930 167 7950 167 7940
464.h264ref 64 1665 851 1616 876 1585 894 64 1312 1080 1315 1080 1316 1080
471.omnetpp 64 526 760 529 757 529 757 64 528 757 528 758 528 757
473.astar 64 685 655 683 658 683 658 64 553 813 552 814 553 813
483.xalancbmk 64 427 1030 426 1040 427 1030 64 421 1050 424 1040 422 1050

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst

Set vm/nr_hugepages=57344 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/home/spec/amd1206-rate-libs-revA/32:/home/spec/amd1206-rate-libs-revA/64"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6386SE chips + 128GB Memory using RHEL 6.3

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -CG:local_sched_alg=1   -INLINE:aggressive=ON   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bd=2m:heap=2m   -mso   -LNO:prefetch=2   -march=bdver1

C++ benchmarks:

 -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -march=bdver1   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bd=2m:heap=2m   -march=bdver1   -GRA:aggr_loop_splitting=off   -GRA:loop_splitting=off
401.bzip2:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -march=bdver2
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on   -march=bdver2   -mno-fma4
429.mcf:  -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -CG:dsched=on   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m   -mso   -march=bdver1
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bd=2m:heap=2m   -march=bdver1
456.hmmer:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m   -CG:p2align=0   -CG:load_exe=3   -CG:dsched=on   -march=bdver1
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:heap=2m:bd=2m   -WOPT:sib=on   -march=bdver1
462.libquantum:  -Ofast   -mso   -OPT:unroll_size=512   -OPT:unroll_times_max=16   -LNO:prefetch=2   -LNO:prefetch_ahead=4   -LNO:pf2=0   -CG:local_sched_alg=1   -CG:p2align=0   -INLINE:aggressive=ON   -IPA:plimit=15000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m,limit=300   -march=bdver2
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m   -march=bdver1

C++ benchmarks:

471.omnetpp:  -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -WOPT:sib=on   -D__OPEN64_FAST_SET   -march=bdver2   -mno-fma4   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -CG:p2align=1   -CG:dsched=on   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -HP:bdt=2m:heap=2m   -march=bdver1
483.xalancbmk:  -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -CG:p2align=1   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -march=bdver2   -mno-fma4   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-452-flags-rate-revA-I.xml.
