| CPU2006 license: | 3175 | Test date: | Apr-2013 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | May-2012 |
| Tested by: | Huawei | Software Availability: | Jun-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2690 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.80 GHz |
| CPU MHz: | 2900 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC) |
| Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.3 (Santiago) 2.6.32-279.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

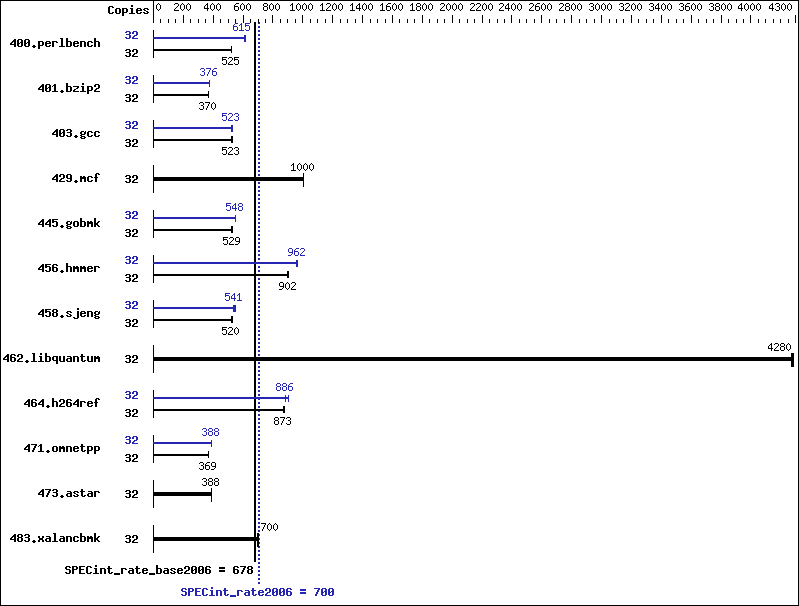

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 32 | 598 | 523 | 595 | 525 | 596 | 525 | 32 | 507 | 616 | 508 | 615 | 513 | 609 |
| 401.bzip2 | 32 | 836 | 370 | 832 | 371 | 838 | 369 | 32 | 820 | 376 | 820 | 377 | 821 | 376 |
| 403.gcc | 32 | 487 | 529 | 492 | 523 | 492 | 523 | 32 | 493 | 522 | 489 | 527 | 493 | 523 |
| 429.mcf | 32 | 291 | 1000 | 291 | 1000 | 290 | 1000 | 32 | 291 | 1000 | 291 | 1000 | 290 | 1000 |
| 445.gobmk | 32 | 644 | 521 | 631 | 532 | 634 | 529 | 32 | 613 | 548 | 613 | 548 | 613 | 548 |
| 456.hmmer | 32 | 331 | 902 | 334 | 894 | 330 | 905 | 32 | 310 | 962 | 311 | 960 | 310 | 962 |
| 458.sjeng | 32 | 745 | 520 | 745 | 520 | 730 | 530 | 32 | 702 | 552 | 715 | 541 | 723 | 535 |
| 462.libquantum | 32 | 155 | 4270 | 155 | 4280 | 155 | 4280 | 32 | 155 | 4270 | 155 | 4280 | 155 | 4280 |
| 464.h264ref | 32 | 812 | 873 | 812 | 872 | 810 | 874 | 32 | 800 | 886 | 786 | 901 | 801 | 884 |
| 471.omnetpp | 32 | 542 | 369 | 542 | 369 | 542 | 369 | 32 | 516 | 388 | 517 | 387 | 516 | 388 |
| 473.astar | 32 | 578 | 388 | 577 | 390 | 579 | 388 | 32 | 578 | 388 | 577 | 390 | 579 | 388 |
| 483.xalancbmk | 32 | 315 | 701 | 315 | 700 | 316 | 699 | 32 | 315 | 701 | 315 | 700 | 316 | 699 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited" Transparent Huge Pages enabled with: Select only test related files when installing the operating system
Platform Notes
BIOS configuration: Set Power Efficiency Mode to Performance Baseboard Management Controller used to adjust the fan speed to 100% Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on z-spectest Thu Apr 18 16:50:54 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2690 0 @ 2.90GHz 2 "physical id"s (chips) 32 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 132118004 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.3 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.3 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux z-spectest 2.6.32-279.el6.x86_64 #1 SMP Wed Jun 13 18:24:36 EDT 2012 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Apr 18 16:48 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 289G 78G 197G 29% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" Binaries compiled on a system with 2 x Xeon X5645 CPU + 16GB memory using RHEL 6.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/smartheap -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
