CPU2006 license: | 55 | Test date: | Feb-2014 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2014 |
Tested by: | Dell Inc. | Software Availability: | Aug-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-4620 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.00 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 32 cores, 4 chips, 8 cores/chip, 2 threads/core |
CPU(s) orderable: | 4 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 512 GB (32 x 16 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 x 1TB 7200 RPM Near-Line SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SUSE Linux Enterprise Server 11 (x86_64) 3.0.76-0.11-default |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext2 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

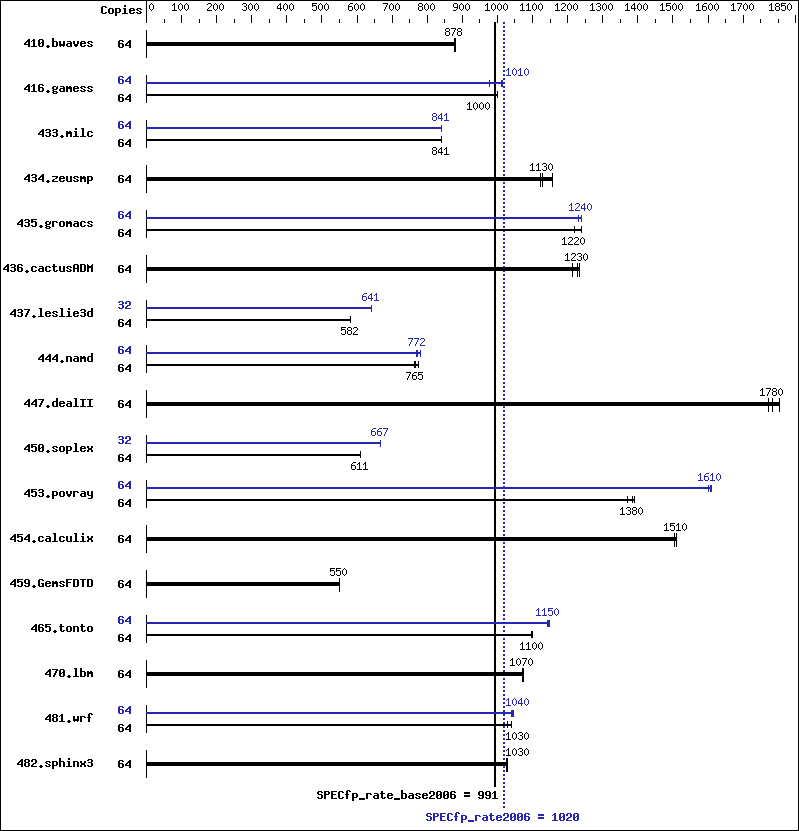

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 64 | 990 | 878 | 991 | 878 | 988 | 880 | 64 | 990 | 878 | 991 | 878 | 988 | 880 |
416.gamess | 64 | 1252 | 1000 | 1254 | 999 | 1253 | 1000 | 64 | 1236 | 1010 | 1281 | 978 | 1240 | 1010 |
433.milc | 64 | 699 | 841 | 698 | 842 | 700 | 840 | 64 | 700 | 839 | 699 | 841 | 699 | 841 |
434.zeusmp | 64 | 503 | 1160 | 519 | 1120 | 517 | 1130 | 64 | 503 | 1160 | 519 | 1120 | 517 | 1130 |
435.gromacs | 64 | 369 | 1240 | 375 | 1220 | 374 | 1220 | 64 | 368 | 1240 | 369 | 1240 | 371 | 1230 |
436.cactusADM | 64 | 620 | 1230 | 630 | 1210 | 623 | 1230 | 64 | 620 | 1230 | 630 | 1210 | 623 | 1230 |
437.leslie3d | 64 | 1033 | 582 | 1034 | 582 | 1035 | 581 | 32 | 468 | 642 | 469 | 641 | 469 | 641 |
444.namd | 64 | 671 | 765 | 663 | 775 | 673 | 763 | 64 | 656 | 782 | 668 | 768 | 665 | 772 |
447.dealII | 64 | 406 | 1800 | 413 | 1770 | 411 | 1780 | 64 | 406 | 1800 | 413 | 1770 | 411 | 1780 |
450.soplex | 64 | 874 | 611 | 876 | 610 | 874 | 611 | 32 | 400 | 668 | 400 | 667 | 401 | 666 |
453.povray | 64 | 246 | 1380 | 245 | 1390 | 248 | 1370 | 64 | 213 | 1600 | 211 | 1610 | 212 | 1610 |
454.calculix | 64 | 350 | 1510 | 350 | 1510 | 351 | 1500 | 64 | 350 | 1510 | 350 | 1510 | 351 | 1500 |
459.GemsFDTD | 64 | 1236 | 549 | 1234 | 550 | 1234 | 550 | 64 | 1236 | 549 | 1234 | 550 | 1234 | 550 |
465.tonto | 64 | 572 | 1100 | 574 | 1100 | 573 | 1100 | 64 | 551 | 1140 | 548 | 1150 | 550 | 1150 |
470.lbm | 64 | 819 | 1070 | 820 | 1070 | 821 | 1070 | 64 | 819 | 1070 | 820 | 1070 | 821 | 1070 |
481.wrf | 64 | 687 | 1040 | 695 | 1030 | 695 | 1030 | 64 | 684 | 1040 | 686 | 1040 | 688 | 1040 |
482.sphinx3 | 64 | 1213 | 1030 | 1212 | 1030 | 1215 | 1030 | 64 | 1213 | 1030 | 1212 | 1030 | 1215 | 1030 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Virtualization Technology disabled Execute Disable disabled Logical Processor enabled System Profile set to Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on linux Mon Feb 17 02:10:46 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4620 v2 @ 2.60GHz 4 "physical id"s (chips) 64 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 16 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 physical 2: cores 0 1 2 3 4 5 6 7 physical 3: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 529392220 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 3 uname -a: Linux linux 3.0.76-0.11-default #1 SMP Fri Jun 14 08:21:43 UTC 2013 (ccab990) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 16 13:46 last=S SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext2 909G 63G 845G 7% / Additional information from dmidecode: BIOS Dell Inc. 2.0.24 01/21/2014 Memory: 32x 00CE00B300CE M393B2G70BH0-CMA 16 GB 1600 MHz (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch |
-xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
icc -m64 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 |
