SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DQ77MK motherboard (Intel Core i5-3340)

SPECfp®2006 = 55.9

CPU2006 license: 13 Test date: Jan-2014
Test sponsor: Intel Corporation Hardware Availability: Sep-2013
Tested by: Intel Corporation Software Availability: Apr-2013

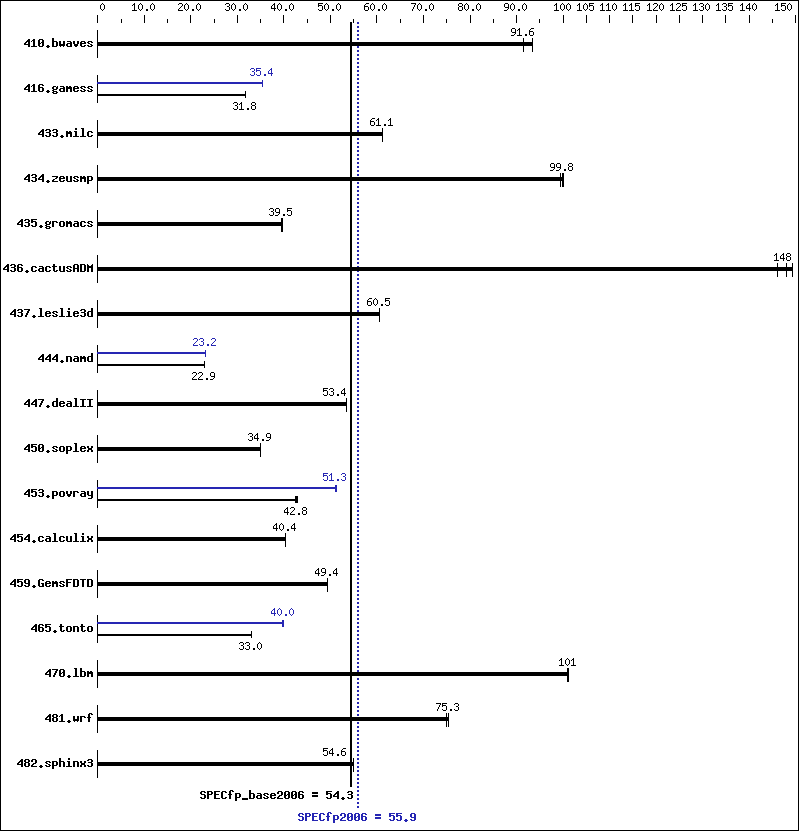

Benchmark results graph
Hardware
CPU Name: Intel Core i5-3340
CPU Characteristics: Intel Turbo Boost Technology up to 3.30 GHz
CPU MHz: 3100
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11)
Disk Subsystem: 250 GB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Enterprise
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 13.1.1.171 of Intel C++ Studio XE
for Windows;
Fortran: Version 13.1.1.171 of Intel Fortran
Studio XE for Windows;
Libraries: Version 16.00.30319.01 of Microsoft
Visual Studio 2010 Professional SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 10.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 146   93.4 149   91.4 148   91.6 146   93.4 149   91.4 148   91.6
416.gamess 618   31.7 616   31.8 616   31.8 553   35.4 553   35.4 553   35.4
433.milc 150   61.1 150   61.1 150   61.1 150   61.1 150   61.1 150   61.1
434.zeusmp 91.0 100   91.2 99.8 91.5 99.5 91.0 100   91.2 99.8 91.5 99.5
435.gromacs 181   39.5 180   39.6 181   39.5 181   39.5 180   39.6 181   39.5
436.cactusADM 80.0 149   81.8 146   80.7 148   80.0 149   81.8 146   80.7 148
437.leslie3d 155   60.5 156   60.5 155   60.6 155   60.5 156   60.5 155   60.6
444.namd 350   22.9 350   22.9 350   22.9 346   23.2 346   23.2 346   23.2
447.dealII 214   53.4 214   53.4 214   53.5 214   53.4 214   53.4 214   53.5
450.soplex 239   34.9 239   34.9 239   34.9 239   34.9 239   34.9 239   34.9
453.povray 124   42.8 125   42.6 124   43.0 104   51.4 104   51.3 104   51.0
454.calculix 204   40.4 204   40.4 204   40.4 204   40.4 204   40.4 204   40.4
459.GemsFDTD 215   49.4 215   49.4 215   49.4 215   49.4 215   49.4 215   49.4
465.tonto 298   33.0 297   33.1 298   33.0 246   40.0 246   40.0 248   39.6
470.lbm 136   101   136   101   136   101   136   101   136   101   136   101
481.wrf 148   75.3 148   75.3 149   75.0 148   75.3 148   75.3 149   75.0
482.sphinx3 357   54.6 355   54.9 357   54.6 357   54.6 355   54.9 357   54.6

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.1 was set up to
 generate 64-bit binaries with the command:
 "ipsxe-comp-vars.bat intel64 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt7054D218890C Sat Jan 18 14:14:32 2014

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Enterprise
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DQ77MK__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3101 Mhz
 BIOS Version  : Intel Corp. MKQ7710H.86A.0054.2012.1120.1444, 11/20/2012
 Total Physical Memory: 3,912 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 1024
 L3CacheSize   : 6144
 MaxClockSpeed : 3101
 Name          : Intel(R) Core(TM) i5-3340 CPU @ 3.10GHz
 NumberOfCores : 4
 NumberOfLogicalProcessors: 4

 (End of data from sysinfo program)
BIOS: SATA mode set to RAID
Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066
Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc10   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -Qoption,cpp,--ms_incompat_treatment_of_commas_in_macros
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_NEED_INVHYP   -DNEED_INVHYP
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

C++ benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxAVX   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc10   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxAVX(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   -Qinline-calloc   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.xml.
