CPU2006 license: | 13 | Test date: | Dec-2013 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | Jun-2013 |
Tested by: | Intel Corporation | Software Availability: | Apr-2013 |
Hardware | |
---|---|
CPU Name: | Intel Core i3-3245 |
CPU Characteristics: | |
CPU MHz: | 3400 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 3 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11) |
Disk Subsystem: | 250 GB Seagate SATA HDD, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Microsoft Windows 7 Enterprise 6.1.7601 Service Pack 1 Build 7601 |
Compiler: | C/C++: Version 13.1.1.171 of Intel C++ Studio XE for Windows; Libraries: Version 16.00.30319.01 of Microsoft Visual Studio 2010 Professional SP1 |
Auto Parallel: | No |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap Library Version 10.0 from http://www.microquill.com/ |

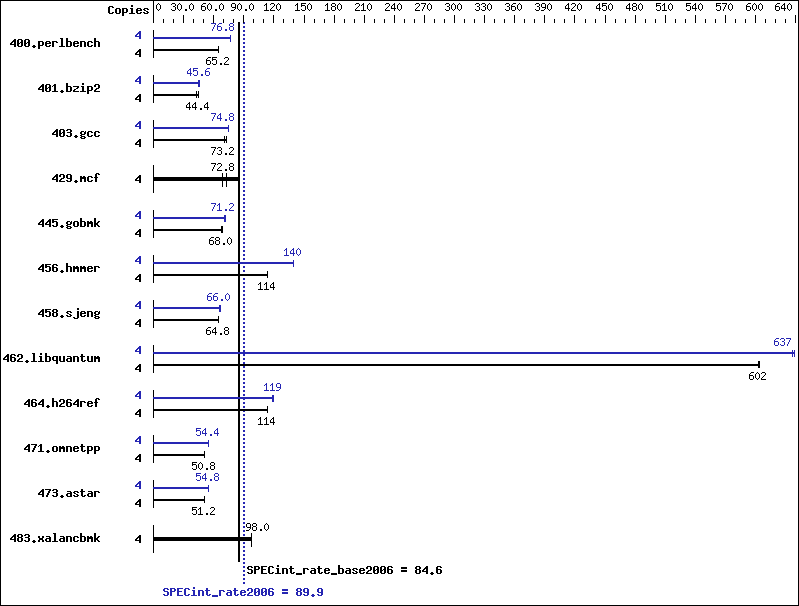

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 600 | 65.2 | 598 | 65.2 | 598 | 65.2 | 4 | 507 | 77.2 | 513 | 76.4 | 508 | 76.8 |
401.bzip2 | 4 | 896 | 43.2 | 873 | 44.4 | 860 | 44.8 | 4 | 852 | 45.2 | 843 | 45.6 | 844 | 45.6 |
403.gcc | 4 | 453 | 71.2 | 441 | 73.2 | 441 | 73.2 | 4 | 429 | 75.2 | 432 | 74.4 | 430 | 74.8 |
429.mcf | 4 | 430 | 84.8 | 531 | 68.8 | 501 | 72.8 | 4 | 430 | 84.8 | 531 | 68.8 | 501 | 72.8 |
445.gobmk | 4 | 612 | 68.4 | 617 | 68.0 | 620 | 67.6 | 4 | 591 | 70.8 | 590 | 71.2 | 584 | 72.0 |
456.hmmer | 4 | 330 | 113 | 328 | 114 | 328 | 114 | 4 | 268 | 140 | 266 | 140 | 268 | 140 |
458.sjeng | 4 | 747 | 64.8 | 747 | 64.8 | 748 | 64.8 | 4 | 735 | 66.0 | 724 | 66.8 | 736 | 65.6 |
462.libquantum | 4 | 137 | 604 | 138 | 602 | 138 | 602 | 4 | 130 | 639 | 130 | 637 | 130 | 637 |
464.h264ref | 4 | 779 | 114 | 776 | 114 | 778 | 114 | 4 | 744 | 119 | 749 | 118 | 743 | 119 |
471.omnetpp | 4 | 493 | 50.8 | 492 | 50.8 | 494 | 50.8 | 4 | 460 | 54.4 | 458 | 54.4 | 459 | 54.4 |
473.astar | 4 | 549 | 51.2 | 550 | 51.2 | 551 | 51.2 | 4 | 513 | 54.8 | 512 | 54.8 | 518 | 54.4 |
483.xalancbmk | 4 | 282 | 98.0 | 282 | 98.0 | 282 | 98.0 | 4 | 282 | 98.0 | 282 | 98.0 | 282 | 98.0 |
To compile these binaries, the Intel Compiler 13.1 was set up to generate 32-bit binaries with the command: "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r) Parallel Studio XE 2013 program folder)
Processes were bound to specific processors using the start command with the /affinity switch. The config file option 'submit' was used to generate the affinity mask for each process.
Sysinfo program C:\SPEC13.1/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c running on Clt7054D2179849 Sat Dec 7 12:06:07 2013 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo Trying 'systeminfo' OS Name : Microsoft Windows 7 Enterprise OS Version : 6.1.7601 Service Pack 1 Build 7601 System Manufacturer: INTEL_ System Model : DQ77MK__ Processor(s) : 1 Processor(s) Installed. [01]: Intel64 Family 6 Model 58 Stepping 9 GenuineIntel ~3400 Mhz BIOS Version : Intel Corp. MKQ7710H.86A.0054.2012.1120.1444, 11/20/2012 Total Physical Memory: 3,912 MB Trying 'wmic cpu get /value' DeviceID : CPU0 L2CacheSize : 512 L3CacheSize : 3072 MaxClockSpeed : 3400 Name : Intel(R) Core(TM) i3-3245 CPU @ 3.40GHz NumberOfCores : 2 NumberOfLogicalProcessors: 4 (End of data from sysinfo program) BIOS: SATA mode set to RAID Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066 Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply Micron MT8JTF25664AZ-1G6 Series Memory DIMMs
Binaries compiled on a system with 1x Intel Core i7-860 CPU + 8GB memory using Windows 7 Enterprise 64-bit
403.gcc: | -DSPEC_CPU_WIN32 |
464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
-QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
-QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
icl -Qvc10 | |
473.astar: | C:\Program Files (x86)\Intel\Composer XE 2013.171/bin/intel64/icl.exe |
403.gcc: | -DSPEC_CPU_WIN32 |
456.hmmer: | -DSPEC_CPU_P64 |
458.sjeng: | -DSPEC_CPU_P64 |
462.libquantum: | -DSPEC_CPU_P64 |
464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
473.astar: | -DSPEC_CPU_P64 |
483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
400.perlbench: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
401.bzip2: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
403.gcc: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
429.mcf: | basepeak = yes |
445.gobmk: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
456.hmmer: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
458.sjeng: | -Qauto-ilp32 -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
462.libquantum: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
464.h264ref: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
471.omnetpp: | -QxAVX(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
473.astar: | -Qauto-ilp32 -QxAVX -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 shlW64M.lib -link /FORCE:MULTIPLE |
483.xalancbmk: | basepeak = yes |
