SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DQ87PG motherboard (Intel Pentium G3430)

CPU2006 license: 13 Test date: Sep-2013
Test sponsor: Intel Corporation Hardware Availability: Sep-2013
Tested by: Intel Corporation Software Availability: Sep-2012

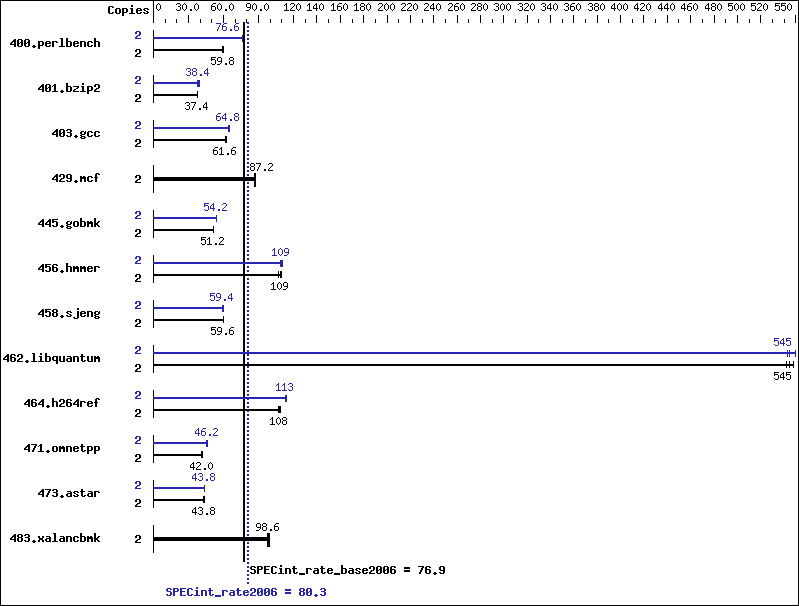

Benchmark results graph
Hardware
CPU Name: Intel Pentium G3430
CPU Characteristics:
CPU MHz: 3300
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 3 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2 x 2 GB 1Rx8 PC3-12800U-11)
Disk Subsystem: 250 GB Seagate SATA HDD, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Enterprise
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 13.1.1.171 of Intel C++ Studio XE
for Windows;
Libraries: Version 15.00.30729.01 of Microsoft
Visual Studio 2008 Professional SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 10.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 2 327   59.8 329   59.4 327   59.8 2 258   75.8 255   76.6 255   76.6
401.bzip2 2 517   37.4 516   37.4 511   37.8 2 501   38.4 507   38.0 493   39.2
403.gcc 2 262   61.6 262   61.4 258   62.4 2 247   65.2 251   64.2 249   64.8
429.mcf 2 211   86.4 209   87.2 209   87.4 2 211   86.4 209   87.2 209   87.4
445.gobmk 2 409   51.2 409   51.4 409   51.2 2 388   54.2 388   54.2 387   54.2
456.hmmer 2 171   109   171   109   174   107   2 169   110   171   109   171   109
458.sjeng 2 406   59.6 406   59.6 407   59.6 2 412   58.8 408   59.4 405   59.8
462.libquantum 2 76.1 545   75.6 548   76.4 542   2 76.3 543   76.1 545   75.4 550
464.h264ref 2 413   107   407   109   411   108   2 392   113   392   113   390   114
471.omnetpp 2 298   42.0 304   41.2 298   42.0 2 277   45.2 271   46.2 271   46.2
473.astar 2 320   43.8 321   43.8 326   43.0 2 321   43.8 321   43.8 324   43.4
483.xalancbmk 2 140   98.6 140   99.0 141   98.0 2 140   98.6 140   99.0 141   98.0

Compiler Invocation Notes

 To compile these binaries, the Intel Compiler 13.0 was set up to
 generate 32-bit binaries with the command:
 "ipsxe-comp-vars.bat ia32 vs2010" (shortcut provided in the Intel(r)
 Parallel Studio XE 2013 program folder)

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC13.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on Clt7C05070FB2B7 Mon Sep 23 13:35:25 2013

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Enterprise
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DQ87PG__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 60 Stepping 3 GenuineIntel ~3300 Mhz
 BIOS Version  : Intel(R) Corp. PGQ8710H.86A.0036.2013.0702.1908, 7/2/2013
 Total Physical Memory: 3,749 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 3300
 Name          : Intel(R) Pentium(R) CPU G3430 @ 3.30GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)
BIOS: SATA mode set to RAID
Windows Disk Driver: Intel Rapid Storage Technology 12.5.0.1066
Windows Chipset Driver: Intel Chipset Driver 9.4.0.1027

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 Micron MT8JTF25664AZ-1G6 Series Memory DIMMs

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc10   -Qstd=c99

C++ benchmarks:

 icl -Qvc10

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DWIN32   -DSPEC_CPU_NO_INTTYPES
483.xalancbmk:  -Qoption,cpp,--no_wchar_t_keyword

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   /F512000000
403.gcc:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
429.mcf:  basepeak = yes
445.gobmk:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   /F512000000
456.hmmer:  Same as 403.gcc
458.sjeng:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   /F512000000
462.libquantum:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000
464.h264ref:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   /F512000000

C++ benchmarks:

471.omnetpp:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
473.astar:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic13.1-official-windows.xml.
