| CPU2006 license: | 11 | Test date: | Jul-2014 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2014 |
| Tested by: | IBM Corporation | Software Availability: | Nov-2013 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4870 v2 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 60 cores, 4 chips, 15 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (64 x 16 GB 2Rx4 PC3L-12800R-11, ECC, running at 1333 MHz) |
| Disk Subsystem: | 1 x 300 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
| Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
| Auto Parallel: | No |
| File System: | ext4 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

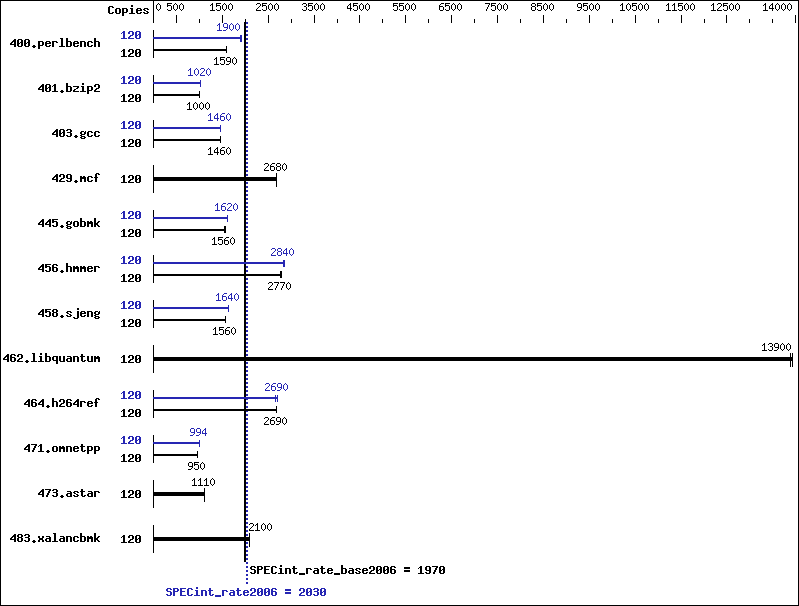

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 120 | 737 | 1590 | 736 | 1590 | 736 | 1590 | 120 | 615 | 1910 | 617 | 1900 | 616 | 1900 |
| 401.bzip2 | 120 | 1162 | 996 | 1158 | 1000 | 1155 | 1000 | 120 | 1137 | 1020 | 1138 | 1020 | 1137 | 1020 |
| 403.gcc | 120 | 659 | 1470 | 660 | 1460 | 660 | 1460 | 120 | 658 | 1470 | 663 | 1460 | 664 | 1460 |
| 429.mcf | 120 | 407 | 2690 | 408 | 2680 | 408 | 2680 | 120 | 407 | 2690 | 408 | 2680 | 408 | 2680 |
| 445.gobmk | 120 | 810 | 1550 | 808 | 1560 | 808 | 1560 | 120 | 779 | 1620 | 777 | 1620 | 779 | 1620 |
| 456.hmmer | 120 | 403 | 2780 | 404 | 2770 | 405 | 2770 | 120 | 395 | 2830 | 394 | 2840 | 393 | 2850 |
| 458.sjeng | 120 | 929 | 1560 | 928 | 1560 | 928 | 1570 | 120 | 888 | 1640 | 887 | 1640 | 887 | 1640 |
| 462.libquantum | 120 | 179 | 13900 | 179 | 13900 | 179 | 13900 | 120 | 179 | 13900 | 179 | 13900 | 179 | 13900 |
| 464.h264ref | 120 | 988 | 2690 | 989 | 2680 | 987 | 2690 | 120 | 980 | 2710 | 1001 | 2650 | 986 | 2690 |
| 471.omnetpp | 120 | 789 | 951 | 789 | 950 | 790 | 950 | 120 | 754 | 994 | 755 | 994 | 756 | 993 |
| 473.astar | 120 | 760 | 1110 | 758 | 1110 | 759 | 1110 | 120 | 760 | 1110 | 758 | 1110 | 759 | 1110 |
| 483.xalancbmk | 120 | 394 | 2100 | 394 | 2100 | 395 | 2100 | 120 | 394 | 2100 | 394 | 2100 | 395 | 2100 |
Submit Notes
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Operating Mode set to Maximum Perfomance in BIOS Memory Data Scrambling Disabled Patrol Scrub Disabled Sysinfo program /cpu2006.1.2_14.0_aug2013/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on newport-rhel6.5 Fri Jul 25 17:12:22 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7-4870 v2 @ 2.30GHz 4 "physical id"s (chips) 120 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 15 siblings : 30 physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 2: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 physical 3: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 cache size : 30720 KB From /proc/meminfo MemTotal: 1058503308 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux newport-rhel6.5 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jul 24 22:33 last=5 SPEC is set to: /cpu2006.1.2_14.0_aug2013 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_newportrhel6-lv_root ext4 265G 29G 223G 12% / Additional information from dmidecode: BIOS IBM -[N2E107JUS-1.00]- 05/03/2014 Memory: 32x Hynix HMT42GR7AFR4A-PB 16 GB 1333 MHz 2 rank 32x NO DIMM Unknown 32x Samsung M393B2G70QH0-YK0 16 GB 1333 MHz 2 rank (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/cpu2006.1.2_14.0_aug2013/libs/32:/cpu2006.1.2_14.0_aug2013/libs/64:/cpu2006.1.2_14.0_aug2013/sh" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -opt-mem-layout-trans=3 -Wl,-z,muldefs -L/sh -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias -opt-mem-layout-trans=3 |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
