CPU2006 license: | 3175 | Test date: | Sep-2014 |
---|---|---|---|
Test sponsor: | Huawei | Hardware Availability: | Apr-2014 |
Tested by: | Huawei | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-4650 v2 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.90 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip |
CPU(s) orderable: | 2,4 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 25 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 512 GB (32 x 16 GB 2Rx4 PC3-14900R-13, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

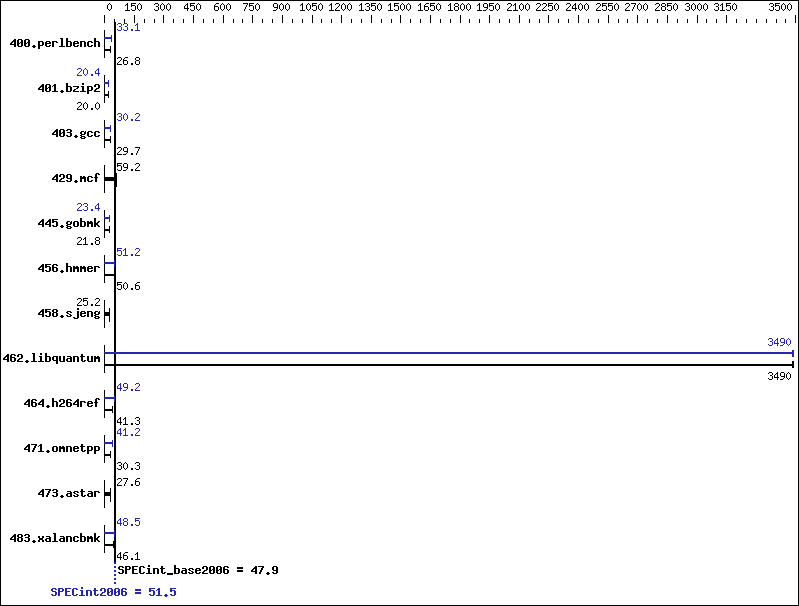

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 365 | 26.8 | 365 | 26.8 | 365 | 26.8 | 296 | 33.0 | 295 | 33.1 | 295 | 33.1 |
401.bzip2 | 482 | 20.0 | 482 | 20.0 | 482 | 20.0 | 472 | 20.4 | 472 | 20.4 | 472 | 20.4 |
403.gcc | 271 | 29.7 | 271 | 29.7 | 271 | 29.8 | 267 | 30.1 | 267 | 30.2 | 267 | 30.2 |
429.mcf | 154 | 59.1 | 153 | 59.5 | 154 | 59.2 | 154 | 59.1 | 153 | 59.5 | 154 | 59.2 |
445.gobmk | 481 | 21.8 | 481 | 21.8 | 481 | 21.8 | 448 | 23.4 | 448 | 23.4 | 448 | 23.4 |
456.hmmer | 184 | 50.6 | 184 | 50.7 | 184 | 50.6 | 182 | 51.2 | 182 | 51.3 | 182 | 51.2 |
458.sjeng | 481 | 25.2 | 481 | 25.2 | 481 | 25.2 | 481 | 25.2 | 481 | 25.2 | 481 | 25.2 |
462.libquantum | 5.94 | 3490 | 5.94 | 3490 | 5.94 | 3490 | 5.94 | 3490 | 5.94 | 3490 | 5.94 | 3490 |
464.h264ref | 536 | 41.3 | 537 | 41.2 | 536 | 41.3 | 451 | 49.1 | 450 | 49.2 | 450 | 49.2 |
471.omnetpp | 206 | 30.3 | 209 | 30.0 | 206 | 30.3 | 152 | 41.2 | 151 | 41.4 | 152 | 41.1 |
473.astar | 254 | 27.6 | 256 | 27.4 | 253 | 27.7 | 254 | 27.6 | 256 | 27.4 | 253 | 27.7 |
483.xalancbmk | 151 | 45.7 | 150 | 46.1 | 149 | 46.2 | 142 | 48.5 | 143 | 48.3 | 142 | 48.5 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Set Power Efficiency Mode to Custom Set Hyper-Threading to Disabled Sysinfo program /spec/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Fri Sep 5 01:15:34 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-4650 v2 @ 2.40GHz 4 "physical id"s (chips) 40 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 10 siblings : 10 physical 0: cores 0 1 2 3 4 8 9 10 11 12 physical 1: cores 0 1 2 3 4 8 9 10 11 12 physical 2: cores 0 1 2 3 4 8 9 10 11 12 physical 3: cores 0 1 2 3 4 8 9 10 11 12 cache size : 25600 KB From /proc/meminfo MemTotal: 529228328 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Sep 5 01:12 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 411G 158G 233G 41% / Additional information from dmidecode: Memory: 16x Micron 36JSF2G72PZ-1G9E1 16 GB 1866 MHz 2 rank 16x Samsung M393B2G70DB0-CMA 16 GB 1866 MHz 2 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,0,1" LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64" OMP_NUM_THREADS = "40" Binaries compiled on a system with 2 x Xeon X5645 CPU + 16GB memory using RHEL 6.1 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
464.h264ref: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | basepeak = yes |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
458.sjeng: | basepeak = yes |
462.libquantum: | -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
