CPU2006 license: | 55 | Test date: | Aug-2014 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2014 |
Tested by: | Dell Inc. | Software Availability: | Sep-2014 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2670 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.10 GHz |
CPU MHz: | 2300 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 30 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 192 GB (8 x 16 GB, 8 x 8 GB 2Rx4 PC4-2133P-R) |
Disk Subsystem: | 1 x 50 GB SATA SSD |
Other Hardware: | None |
Software | |
---|---|
Operating System: | CentOS release 6.5 (Final) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux; Fortran: Version 14.0.0.080 of Intel Fortran Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

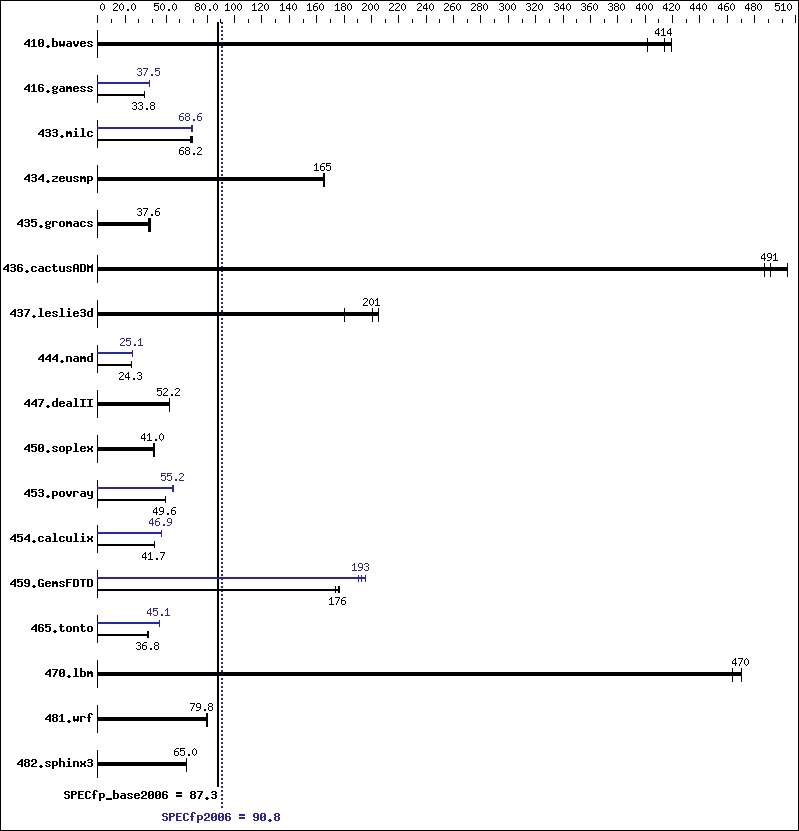

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 33.8 | 402 | 32.8 | 414 | 32.4 | 419 | 33.8 | 402 | 32.8 | 414 | 32.4 | 419 |
416.gamess | 579 | 33.8 | 577 | 33.9 | 579 | 33.8 | 521 | 37.6 | 522 | 37.5 | 521 | 37.5 |
433.milc | 135 | 68.2 | 136 | 67.7 | 133 | 68.9 | 132 | 69.3 | 134 | 68.6 | 135 | 68.2 |
434.zeusmp | 55.2 | 165 | 55.2 | 165 | 54.8 | 166 | 55.2 | 165 | 55.2 | 165 | 54.8 | 166 |
435.gromacs | 190 | 37.6 | 193 | 37.0 | 187 | 38.2 | 190 | 37.6 | 193 | 37.0 | 187 | 38.2 |
436.cactusADM | 23.7 | 504 | 24.5 | 487 | 24.3 | 491 | 23.7 | 504 | 24.5 | 487 | 24.3 | 491 |
437.leslie3d | 46.8 | 201 | 45.8 | 205 | 52.2 | 180 | 46.8 | 201 | 45.8 | 205 | 52.2 | 180 |
444.namd | 330 | 24.3 | 330 | 24.3 | 330 | 24.3 | 320 | 25.1 | 320 | 25.1 | 319 | 25.1 |
447.dealII | 219 | 52.2 | 219 | 52.1 | 218 | 52.4 | 219 | 52.2 | 219 | 52.1 | 218 | 52.4 |
450.soplex | 203 | 41.0 | 204 | 41.0 | 201 | 41.4 | 203 | 41.0 | 204 | 41.0 | 201 | 41.4 |
453.povray | 107 | 49.6 | 108 | 49.2 | 107 | 49.9 | 96.3 | 55.2 | 96.3 | 55.3 | 96.8 | 54.9 |
454.calculix | 198 | 41.6 | 198 | 41.7 | 198 | 41.7 | 176 | 46.9 | 176 | 46.8 | 176 | 46.9 |
459.GemsFDTD | 60.0 | 177 | 61.0 | 174 | 60.4 | 176 | 55.1 | 193 | 55.7 | 190 | 54.3 | 195 |
465.tonto | 268 | 36.8 | 267 | 36.9 | 269 | 36.6 | 218 | 45.1 | 218 | 45.1 | 217 | 45.3 |
470.lbm | 29.6 | 464 | 29.2 | 470 | 29.2 | 470 | 29.6 | 464 | 29.2 | 470 | 29.2 | 470 |
481.wrf | 140 | 79.8 | 140 | 79.5 | 139 | 80.2 | 140 | 79.8 | 140 | 79.5 | 139 | 80.2 |
482.sphinx3 | 299 | 65.1 | 300 | 65.0 | 300 | 65.0 | 299 | 65.1 | 300 | 65.0 | 300 | 65.0 |
Stack size set to unlimited using "ulimit -s unlimited"
BIOS settings: Snoop Mode set to Home Snoop Virtualization Technology disabled Execute Disable disabled System Profile set to Custom CPU Power Management set to Maximum Performance Sysinfo program /root/cpu2006-1.2/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on localhost.localdomain Thu Aug 21 17:18:41 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2670 v3 @ 2.30GHz 2 "physical id"s (chips) 48 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 12 siblings : 24 physical 0: cores 0 1 2 3 4 5 8 9 10 11 12 13 physical 1: cores 0 1 2 3 4 5 8 9 10 11 12 13 cache size : 30720 KB From /proc/meminfo MemTotal: 198232912 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d CentOS release 6.5 (Final) From /etc/*release* /etc/*version* centos-release: CentOS release 6.5 (Final) redhat-release: CentOS release 6.5 (Final) system-release: CentOS release 6.5 (Final) system-release-cpe: cpe:/o:centos:linux:6:GA uname -a: Linux localhost.localdomain 2.6.32-431.el6.x86_64 #1 SMP Fri Nov 22 03:15:09 UTC 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 21 16:21 SPEC is set to: /root/cpu2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/VolGroup-lv_root ext4 50G 9.7G 38G 21% / Additional information from dmidecode: BIOS Dell Inc. 1.0.2 08/12/2014 Memory: 1x 00AD00B300AD HMA42GR7MFR4N-TFTD 16 GB 2133 MHz 2 rank 5x 00AD063200AD HMA42GR7MFR4N-TFT1 16 GB 2133 MHz 2 rank 8x 00CE00B300CE M393A1G43DB0-CPB 8 GB 2133 MHz 2 rank 2x 00CE00B300CE M393A2G40DB0-CPB 16 GB 2133 MHz 2 rank 8x Not Specified Not Specified (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/root/cpu2006-1.2/libs/32:/root/cpu2006-1.2/libs/64:/root/cpu2006-1.2/sh" OMP_NUM_THREADS = "24" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -ansi-alias |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -auto-ilp32 -ansi-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
465.tonto: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | -xCORE-AVX2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
481.wrf: | basepeak = yes |
