| CPU2006 license: | 55 | Test date: | Oct-2014 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2014 |
| Tested by: | Dell | Software Availability: | Sep-2014 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2699 v3 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 2300 |
| FPU: | Integrated |
| CPU(s) enabled: | 36 cores, 2 chips, 18 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 45 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 240 GB (15 x 16 GB 2Rx4 PC4-2133P-R) |
| Disk Subsystem: | 415 GB add more disk info here |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Workstation release 7.0 (Maipo) 3.10.0-123.el7.x86_64 |
| Compiler: | C/C++: Version 15.0.0.090 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | xfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V10.0 |

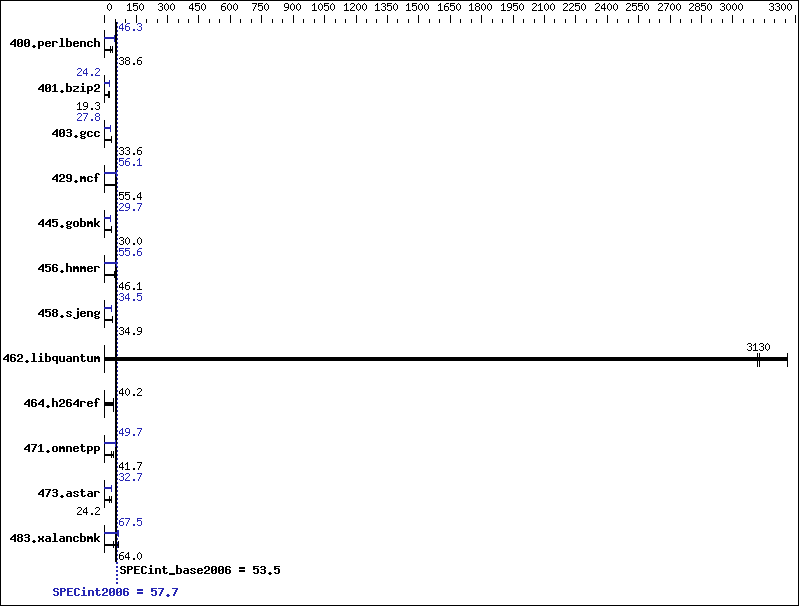

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 253 | 38.7 | 334 | 29.3 | 253 | 38.6 | 211 | 46.3 | 212 | 46.0 | 210 | 46.6 |
| 401.bzip2 | 500 | 19.3 | 518 | 18.6 | 462 | 20.9 | 398 | 24.2 | 397 | 24.3 | 398 | 24.2 |
| 403.gcc | 240 | 33.6 | 240 | 33.6 | 240 | 33.6 | 285 | 28.3 | 291 | 27.7 | 290 | 27.8 |
| 429.mcf | 165 | 55.4 | 166 | 55.0 | 165 | 55.4 | 163 | 56.0 | 163 | 56.1 | 163 | 56.1 |
| 445.gobmk | 350 | 30.0 | 350 | 30.0 | 350 | 30.0 | 353 | 29.7 | 353 | 29.7 | 354 | 29.7 |
| 456.hmmer | 202 | 46.2 | 202 | 46.1 | 202 | 46.1 | 167 | 55.8 | 168 | 55.6 | 168 | 55.5 |
| 458.sjeng | 346 | 35.0 | 346 | 34.9 | 347 | 34.9 | 351 | 34.5 | 350 | 34.5 | 350 | 34.5 |
| 462.libquantum | 6.64 | 3120 | 6.63 | 3130 | 6.36 | 3260 | 6.64 | 3120 | 6.63 | 3130 | 6.36 | 3260 |
| 464.h264ref | 551 | 40.2 | 550 | 40.2 | 552 | 40.1 | 551 | 40.2 | 550 | 40.2 | 552 | 40.1 |
| 471.omnetpp | 203 | 30.7 | 149 | 41.8 | 150 | 41.7 | 126 | 49.8 | 126 | 49.6 | 126 | 49.7 |
| 473.astar | 321 | 21.9 | 217 | 32.4 | 290 | 24.2 | 213 | 32.9 | 214 | 32.7 | 215 | 32.6 |
| 483.xalancbmk | 157 | 44.0 | 107 | 64.5 | 108 | 64.0 | 102 | 67.5 | 102 | 67.6 | 103 | 67.2 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /home/ashows/Desktop/speccpu15/config/sysinfo.rev6914 $Rev: 6914 $ $Date:: 2014-06-25 #$ e3fbb8667b5a285932ceab81e28219e1 running on localhost.localdomain Tue Oct 14 09:31:15 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz 2 "physical id"s (chips) 72 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 18 siblings : 36 physical 0: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 physical 1: cores 0 1 2 3 4 8 9 10 11 16 17 18 19 20 24 25 26 27 cache size : 46080 KB From /proc/meminfo MemTotal: 247380632 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="Red Hat Enterprise Linux Workstation" VERSION="7.0 (Maipo)" ID="rhel" ID_LIKE="fedora" VERSION_ID="7.0" PRETTY_NAME="Red Hat Enterprise Linux Workstation 7.0 (Maipo)" ANSI_COLOR="0;31" CPE_NAME="cpe:/o:redhat:enterprise_linux:7.0:GA:workstation" redhat-release: Red Hat Enterprise Linux Workstation release 7.0 (Maipo) system-release: Red Hat Enterprise Linux Workstation release 7.0 (Maipo) system-release-cpe: cpe:/o:redhat:enterprise_linux:7.0:ga:workstation uname -a: Linux localhost.localdomain 3.10.0-123.el7.x86_64 #1 SMP Mon May 5 11:16:57 EDT 2014 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 13 16:37 SPEC is set to: /home/ashows/Desktop/speccpu15 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/rhel-home xfs 415G 210G 206G 51% /home Cannot run dmidecode; consider saying 'chmod +s /usr/sbin/dmidecode' (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/ashows/Desktop/speccpu15/libs/32:/home/ashows/Desktop/speccpu15/libs/64:/home/ashows/Desktop/speccpu15/sh" OMP_NUM_THREADS = "36" Binaries compiled on a system with 1x Core i5-4670K CPU + 16GB memory using RedHat EL 7.0 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
| 445.gobmk: | icc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 |
C++ benchmarks (except as noted below):
| icpc -m32 -L/opt/intel/composer_xe_2015/lib/ia32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
| 473.astar: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
