CPU2006 license: | 3175 | Test date: | Oct-2014 |
---|---|---|---|
Test sponsor: | Huawei | Hardware Availability: | Sep-2014 |
Tested by: | Huawei | Software Availability: | Nov-2013 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5-2630 v3 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip |
CPU(s) orderable: | 1,2 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 20 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 256 GB (16 x 16 GB 2Rx4 PC4-2133P-R, running at 1866 MHz) |
Disk Subsystem: | 1 x 300 GB SAS, 10000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.5 (Santiago) 2.6.32-431.el6.x86_64 |
Compiler: | C/C++: Version 14.0.0.080 of Intel C++ Studio XE for Linux |
Auto Parallel: | Yes |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V10.0 |

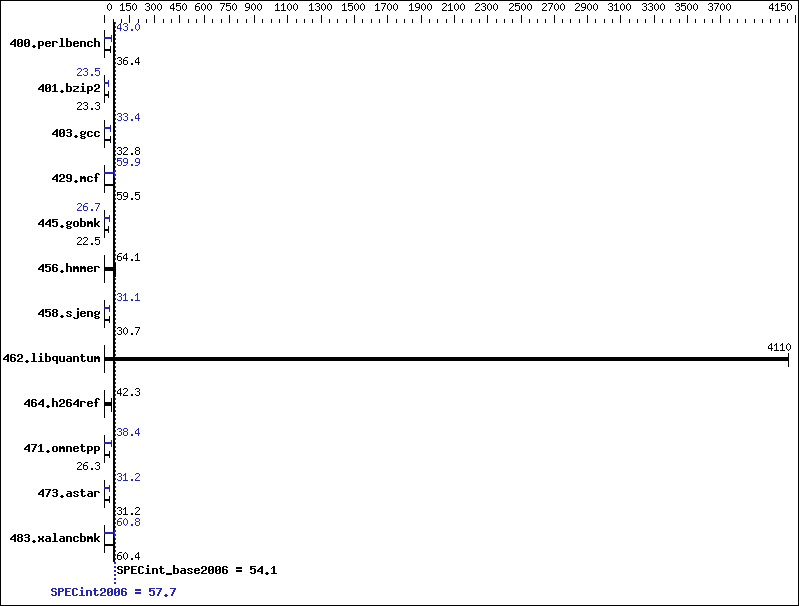

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 268 | 36.4 | 269 | 36.4 | 269 | 36.3 | 227 | 43.0 | 227 | 43.0 | 228 | 42.8 |
401.bzip2 | 414 | 23.3 | 414 | 23.3 | 414 | 23.3 | 410 | 23.5 | 410 | 23.5 | 410 | 23.5 |
403.gcc | 246 | 32.8 | 246 | 32.8 | 246 | 32.7 | 241 | 33.4 | 241 | 33.4 | 241 | 33.4 |
429.mcf | 153 | 59.7 | 154 | 59.1 | 153 | 59.5 | 152 | 59.9 | 153 | 59.7 | 150 | 60.8 |
445.gobmk | 465 | 22.5 | 464 | 22.6 | 465 | 22.5 | 393 | 26.7 | 393 | 26.7 | 393 | 26.7 |
456.hmmer | 145 | 64.1 | 146 | 63.9 | 145 | 64.2 | 145 | 64.1 | 146 | 63.9 | 145 | 64.2 |
458.sjeng | 395 | 30.6 | 394 | 30.7 | 395 | 30.7 | 389 | 31.1 | 389 | 31.1 | 388 | 31.2 |
462.libquantum | 5.04 | 4110 | 5.04 | 4110 | 5.04 | 4110 | 5.04 | 4110 | 5.04 | 4110 | 5.04 | 4110 |
464.h264ref | 523 | 42.3 | 527 | 42.0 | 524 | 42.3 | 523 | 42.3 | 527 | 42.0 | 524 | 42.3 |
471.omnetpp | 238 | 26.3 | 237 | 26.4 | 238 | 26.3 | 163 | 38.4 | 163 | 38.3 | 162 | 38.5 |
473.astar | 225 | 31.2 | 224 | 31.3 | 227 | 30.9 | 226 | 31.1 | 224 | 31.4 | 225 | 31.2 |
483.xalancbmk | 114 | 60.3 | 114 | 60.4 | 114 | 60.4 | 113 | 60.8 | 113 | 61.0 | 114 | 60.8 |
The config file option 'submit' was used.
Stack size set to unlimited using "ulimit -s unlimited"
BIOS configuration: Set Hyper-Threading to Disabled Set Early Snoop to Disable Sysinfo program /spec/config/sysinfo.rev6818 $Rev: 6818 $ $Date:: 2012-07-17 #$ e86d102572650a6e4d596a3cee98f191 running on localhost Sat Oct 11 12:05:48 2014 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2630 v3 @ 2.40GHz 2 "physical id"s (chips) 16 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 8 siblings : 8 physical 0: cores 0 1 2 3 4 5 6 7 physical 1: cores 0 1 2 3 4 5 6 7 cache size : 20480 KB From /proc/meminfo MemTotal: 264277300 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.5 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.5 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost 2.6.32-431.el6.x86_64 #1 SMP Sun Nov 10 22:19:54 EST 2013 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Oct 11 12:03 SPEC is set to: /spec Filesystem Type Size Used Avail Use% Mounted on /dev/sda2 ext4 266G 69G 184G 28% / Additional information from dmidecode: BIOS Insyde Corp. 1.18 09/17/2014 Memory: 8x Samsung M393A2G40DB0-CPB 16 GB 1867 MHz 1 rank 8x Samsung M393A2G40DB0-CPB 16 GB 1867 MHz 2 rank (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,compact,1,0" LD_LIBRARY_PATH = "/spec/libs/32:/spec/libs/64:/spec/sh" OMP_NUM_THREADS = "16" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RedHat EL 6.4 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
-xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
-xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
icc -m64 | |
400.perlbench: | icc -m32 |
445.gobmk: | icc -m32 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
401.bzip2: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
403.gcc: | -xCORE-AVX2 -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
429.mcf: | -xCORE-AVX2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
445.gobmk: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
456.hmmer: | basepeak = yes |
458.sjeng: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
462.libquantum: | basepeak = yes |
464.h264ref: | basepeak = yes |
471.omnetpp: | -xCORE-AVX2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
473.astar: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/sh -lsmartheap64 |
483.xalancbmk: | -xCORE-AVX2 -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/sh -lsmartheap |
